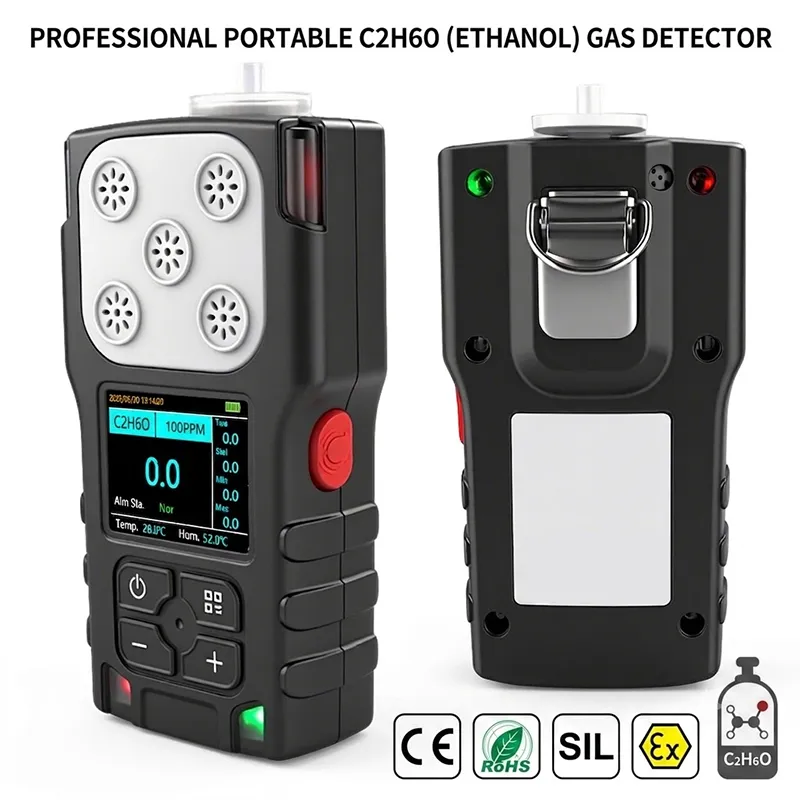

Portable Pump Suction Ethanol C2H6O Gas Detector HNAG920-C2H6O Industrial Gas Monitor
Model：HNAG920-C2H6O
Detection：Single Ethanol C2H6O Gas
Detection Principle：High precision electrochemical sensor
Detection range:0-10ppm,0-200ppm,0-2000ppm,0-5000ppm,0-10000ppm,0-20000ppm,0-5%VOL,0-10%VOL,0-100%VOL,0-100%LEL
Product Description
HNAG920-C2H6O Portable C2H6O Ethanol Gas Detector Product Overview
This HNAG920-C2H6O single gas detector is customized for ethanol (C2H6O) concentration detection, designed for industrial alcohol workshops, chemical laboratories, distilleries and food alcohol processing plants. It adopts dual sampling technology combining built-in pump suction and natural diffusion, solving detection blind spots in confined space pipelines, storage tanks and narrow working areas. The device passed CE, RoHS, SIL and Ex explosion-proof certification, safe for flammable ethanol environment use.
Dual Sampling Mode Advantage of C2H6O Ethanol Detector
Our HNAG920-C2H6O ethanol gas monitor equips built-in micro pump for active suction sampling, matching diffusion detection mode for open-air inspection. Unlike single diffusion gas detectors, pump suction can extract gas from long-distance sampling tubes to test sealed pipe ethanol leakage without staff entering dangerous restricted zones.
Core Hardware Design of HNAG920-C2H6O Alcohol Gas Tester
180° Auto Rotating Color LCD Screen
The 2.0-inch 320*240 color display supports automatic 180° rotation. When staff hold the detector upside down to inspect overhead ethanol pipelines, screen flips intelligently for clear data reading without awkward holding postures, greatly improving operation efficiency in overhead and low-position detection scenarios.
One-Button Emergency Alarm & Multi-Light Sound Warning
The prominent red one-touch alarm button triggers instant sound-light alert in emergency ethanol leakage accidents. Four groups of LED indicator lights distinguish normal green status and red alarm status, with built-in high decibel buzzer to remind operators even in noisy factory production lines.

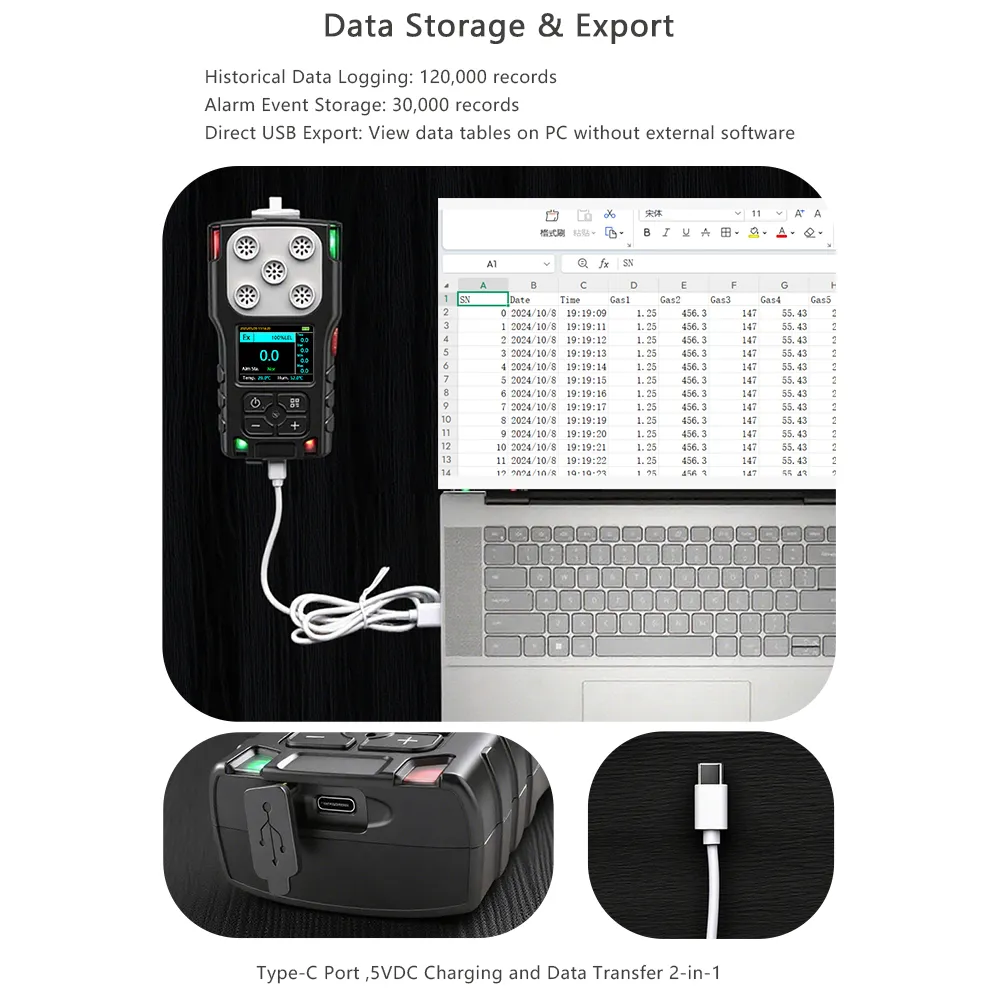

HNAG920-C2H6O Ethanol Detector Data Storage & Export Function
Large-Capacity Historical Data Logging
This C2H6O gas tester supports 120,000 pieces of normal detection record storage and 30,000 alarm event records, automatically saving real-time ethanol concentration, temperature, humidity, timestamp and TWA/STEL data for safety report audit.

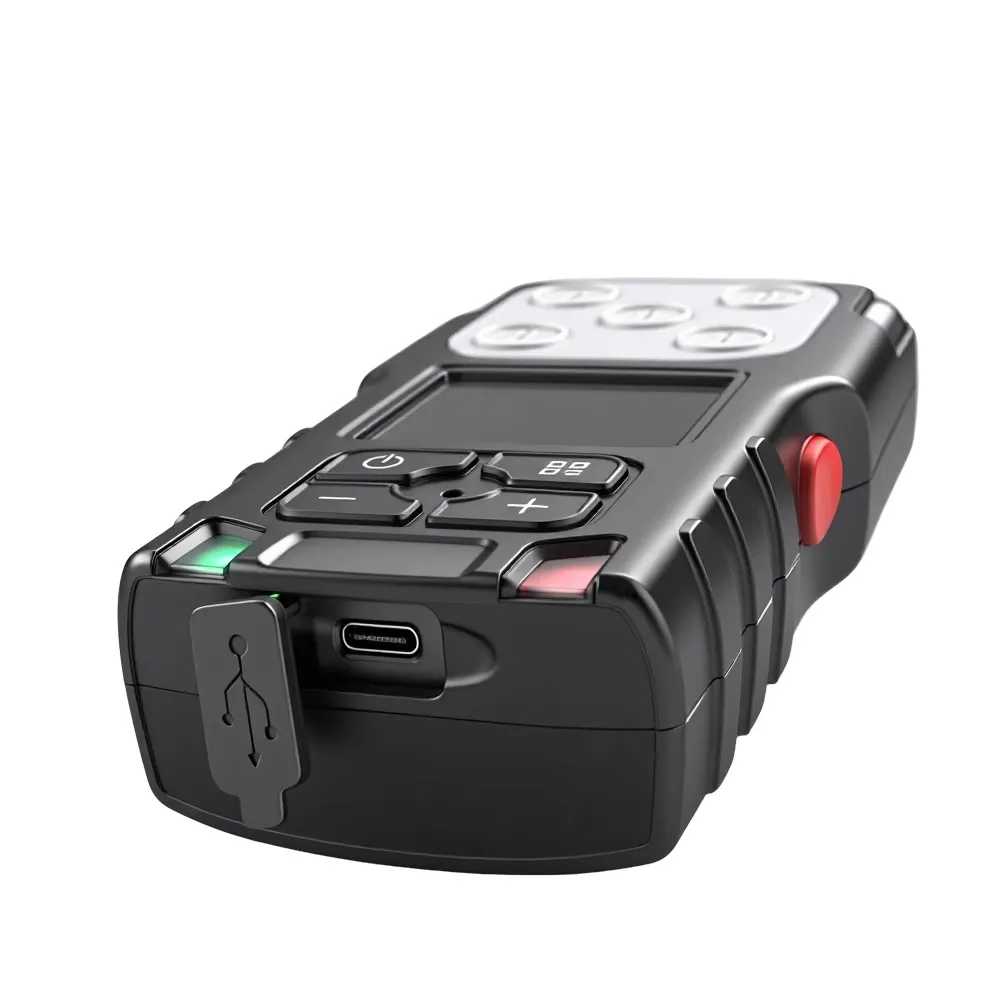

Type-C 2-in-1 Charging & Data Transmission Port
Equipped with universal Type-C interface, realize 5VDC fast charging and offline data export simultaneously. Connect to laptop directly via USB cable, export all ethanol detection data to Excel without installing extra driver software, convenient for factory safety management filing.

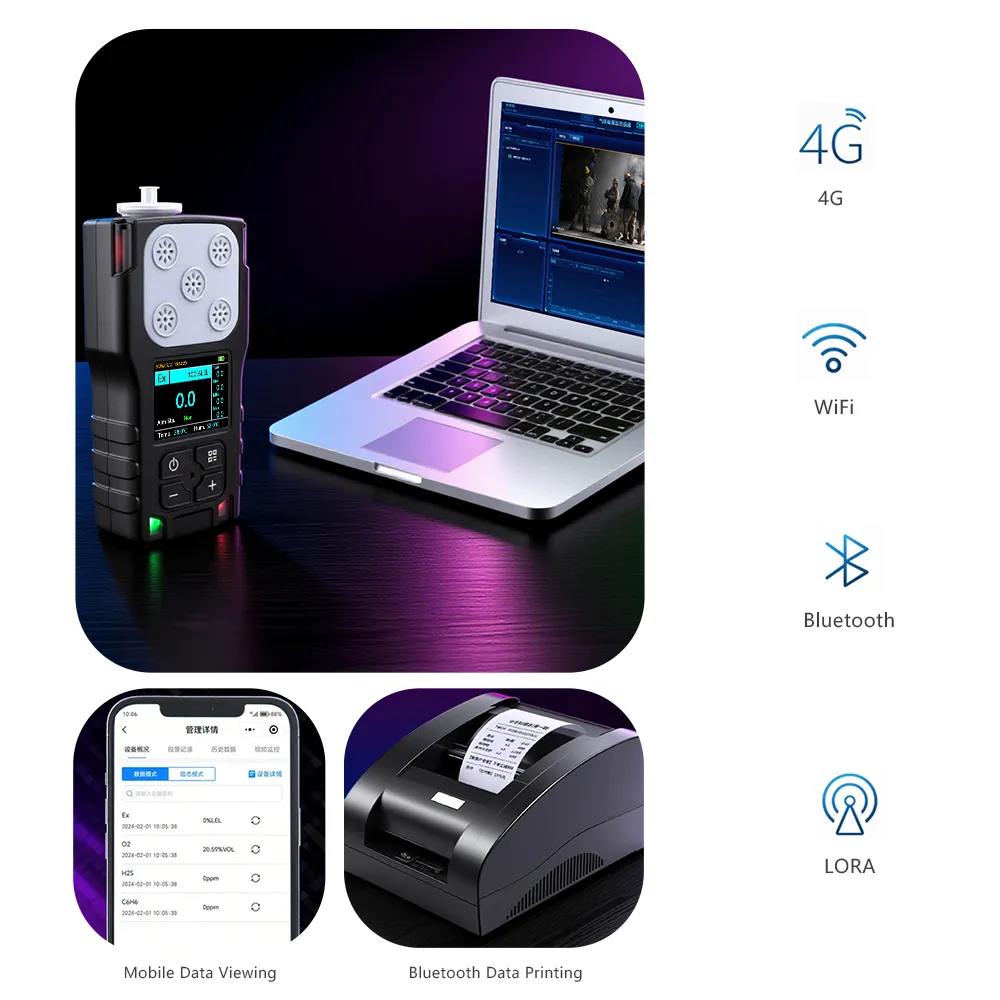

Optional Wireless Transmission Module for HNAG920-C2H6O Ethanol Monitor
Multi Wireless Communication Protocol Support
Users can select 4G, WiFi, Bluetooth or LoRa communication modules as needed:
1.Bluetooth: Real-time data viewing on mobile APP, wireless printing ethanol detection reports via portable thermal printer;
2.WiFi/4G: Upload C2H6O concentration data to remote cloud monitoring platform for unattended workshop real-time supervision;
3.LoRa: Long-distance signal transmission for large-scale chemical park ethanol storage tank group monitoring.
Complete Accessories & Full Machine Structure of HNAG920-C2H6O Detector

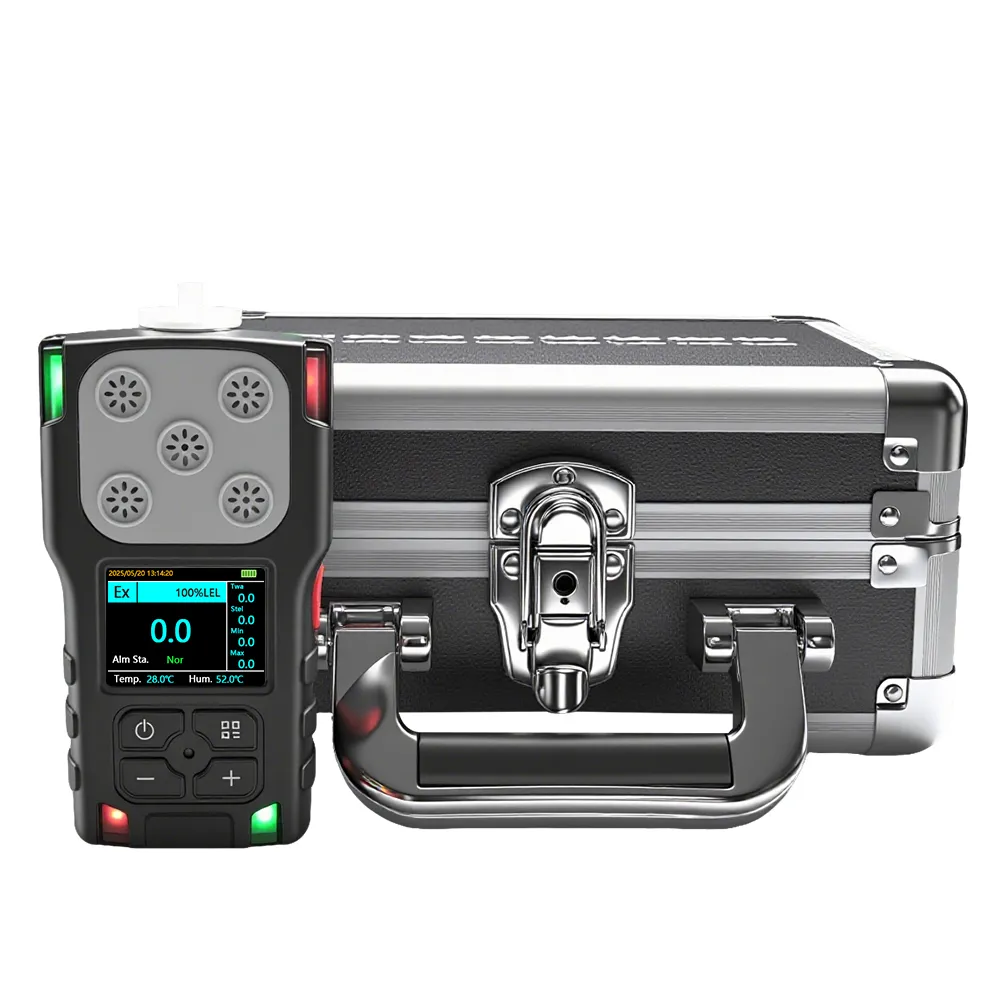

Standard Explosion-Proof Aluminum Storage Kit
Each set of HNAG920-C2H6O ethanol gas detector is equipped with shockproof aluminum alloy storage box, holding detector, sampling hose, filter water trap, charging cable and calibration accessories, portable for outdoor field ethanol leakage inspection.

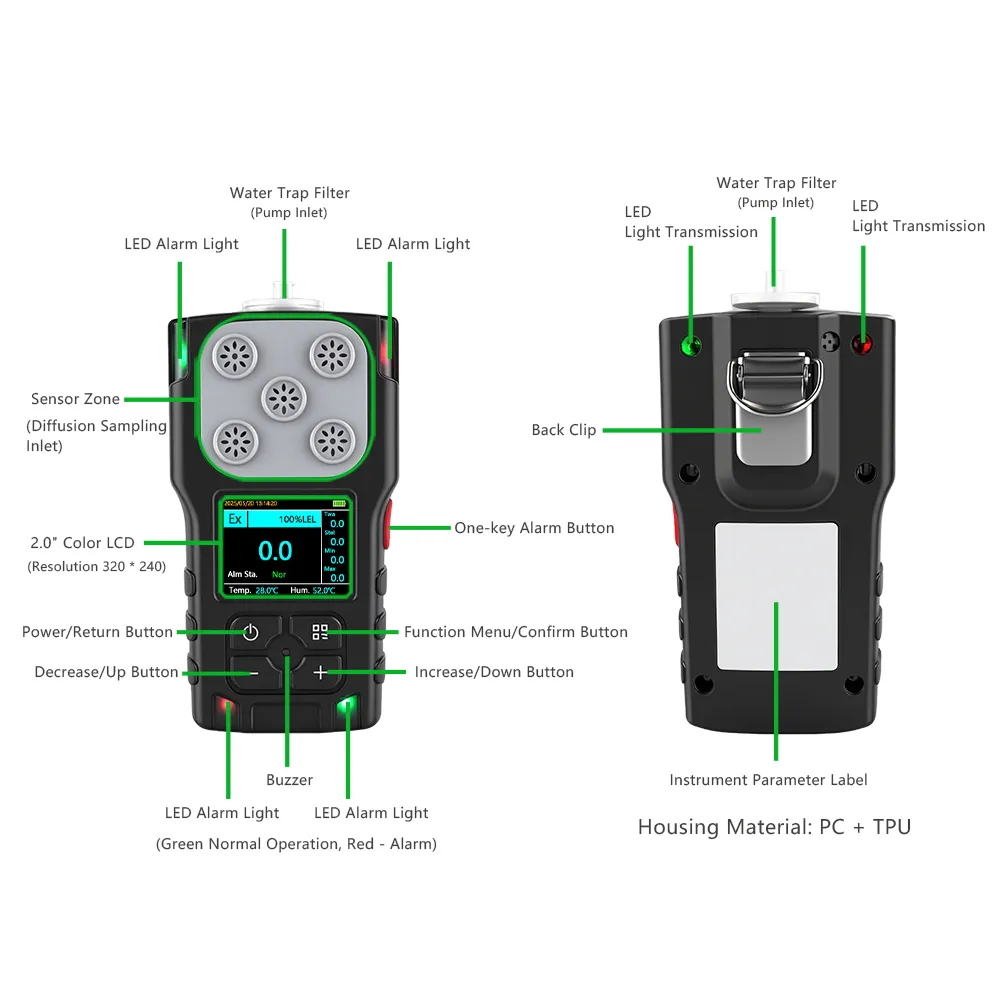

Complete Component Structure Label Introduction
The housing adopts wear-resistant PC+TPU composite material, with built-in water trap filter at pump inlet to block water vapor and dust to protect ethanol sensor. Back clip design allows clipping on work vest for hands-free detection; independent function buttons realize range switching, data query and parameter calibration easily.
FAQ about HNAG920-C2H6O Portable C2H6O Ethanol Gas Detector
Q1: What measuring ranges are available for this ethanol gas detector?
A: We supply multiple optional C2H6O detection ranges: 0-10ppm,0-200ppm,0-2000ppm,0-5000ppm,0-10000ppm,0-20000ppm,0-5%VOL,0-10%VOL,0-100%VOL,0-100%LEL, matching low-concentration lab testing and high-concentration alcohol production workshop monitoring.
Q2: Is this HNAG920-C2H6O detector explosion-proof for ethanol flammable environment?
A: Yes, the machine carries official Ex explosion-proof certification, can work safely in flammable ethanol gas production, storage and transportation sites.
Q3: Can I export ethanol detection data to computer without extra software?
A: Support direct Type-C USB export, plug and play, all historical data can be opened and edited in Excel format on Windows/Mac laptops without dedicated driver software.
Q4: Does the ethanol detector support remote real-time data monitoring?
A: Optional 4G, WiFi, Bluetooth and LoRa wireless modules are available, realizing mobile APP viewing, cloud remote monitoring and Bluetooth report printing functions.
Q5: What sampling modes does the HNAG920-C2H6O C2H6O monitor have?
A: Dual sampling design: built-in pump active suction sampling + natural diffusion sampling, applicable for confined pipeline, tank and open-air workshop ethanol concentration testing.
