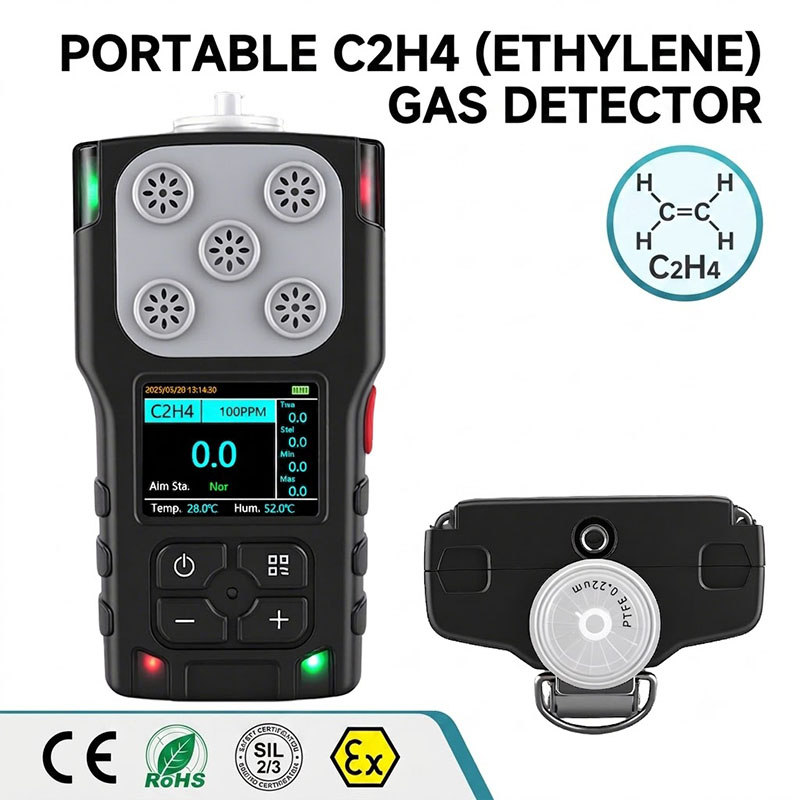

Portable C2H4 Ethylene Single Gas Detector Pump Suction Diffusion Dual Sampling Gas Monitor
Model：HNAG920-C2H4
Detection：Ethylene (C₂H₄, single gas detection)
Detection Principle：High-precision electrochemical sensor principle
Detection Range：0-10(20)ppm,0-100(200)ppm,0-200(200)ppm,0-200(400)ppm,0-1500(3000)ppm,0-3%Vol,0-100%LEL
Product Description
HNAG920-C2H4 Portable C2H4 Ethylene Single Gas Detector Overview
Core Appearance & Structural Design
This ethylene gas detector adopts durable PC+TPU rugged housing, with 2.0-inch 320*240 LCD color screen, distributed LED alarm lights, independent one-key alarm button, back clip for portable carrying, suitable for complex industrial working scenarios.

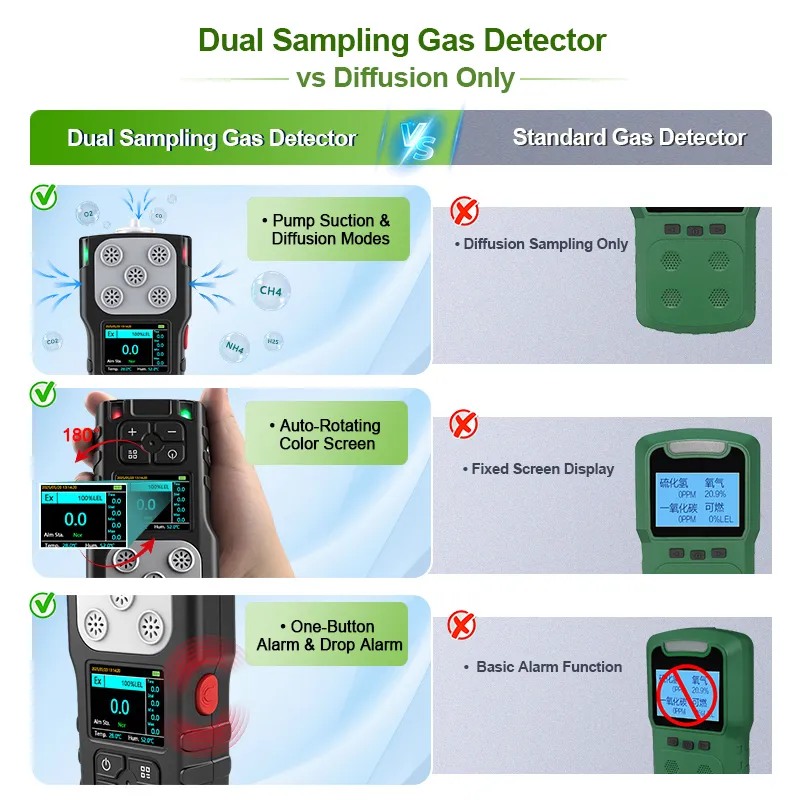

Dual Sampling Technical Advantages of C2H4 Detector
Pump Suction & Diffusion Dual Working Modes
Different from traditional diffusion-only gas detectors, our C2H4 monitor supports both pump suction (for long-distance sampling in confined space) and free diffusion sampling, adapting to more detection environments.

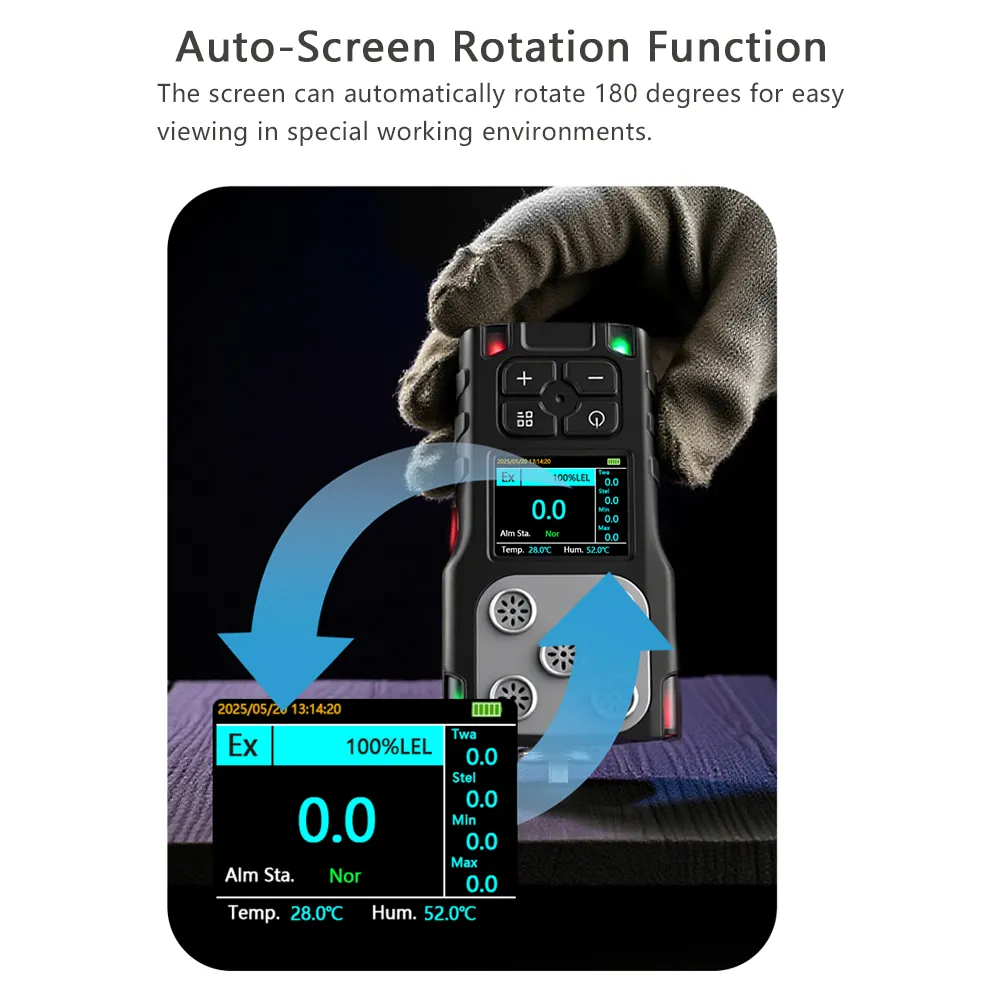

180° Auto-Rotating Color Screen
The screen can auto rotate 180 degrees, operators can read data conveniently no matter holding the detector upside down or in narrow spaces.
Rich Connectivity & Data Management Functions for C2H4 Gas Monitor

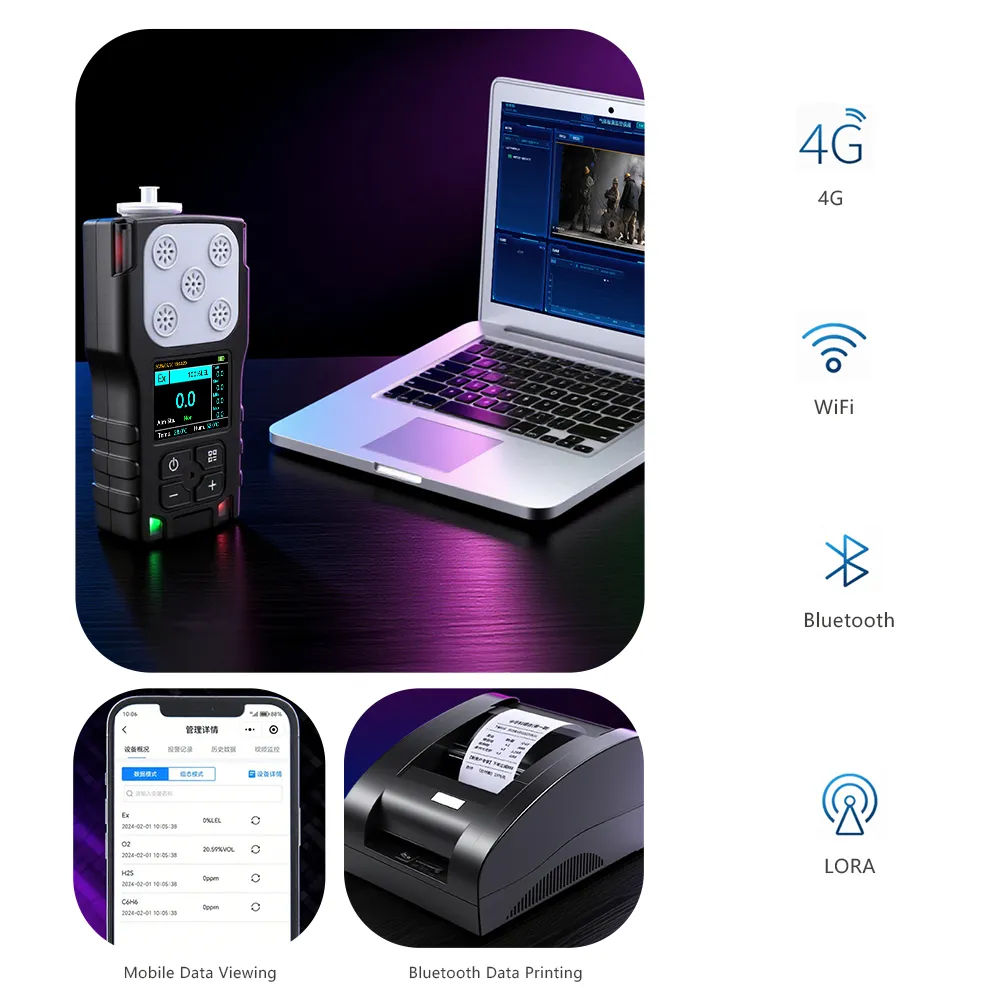

Multi-Wireless Transmission & On-site Output Solutions
It is equipped with 4G, WiFi, Bluetooth and LORA 4 mainstream wireless protocols: you can check real-time & historical data on mobile phone remotely, print reports via Bluetooth portable printer, upload data to cloud monitoring platform for centralized management.

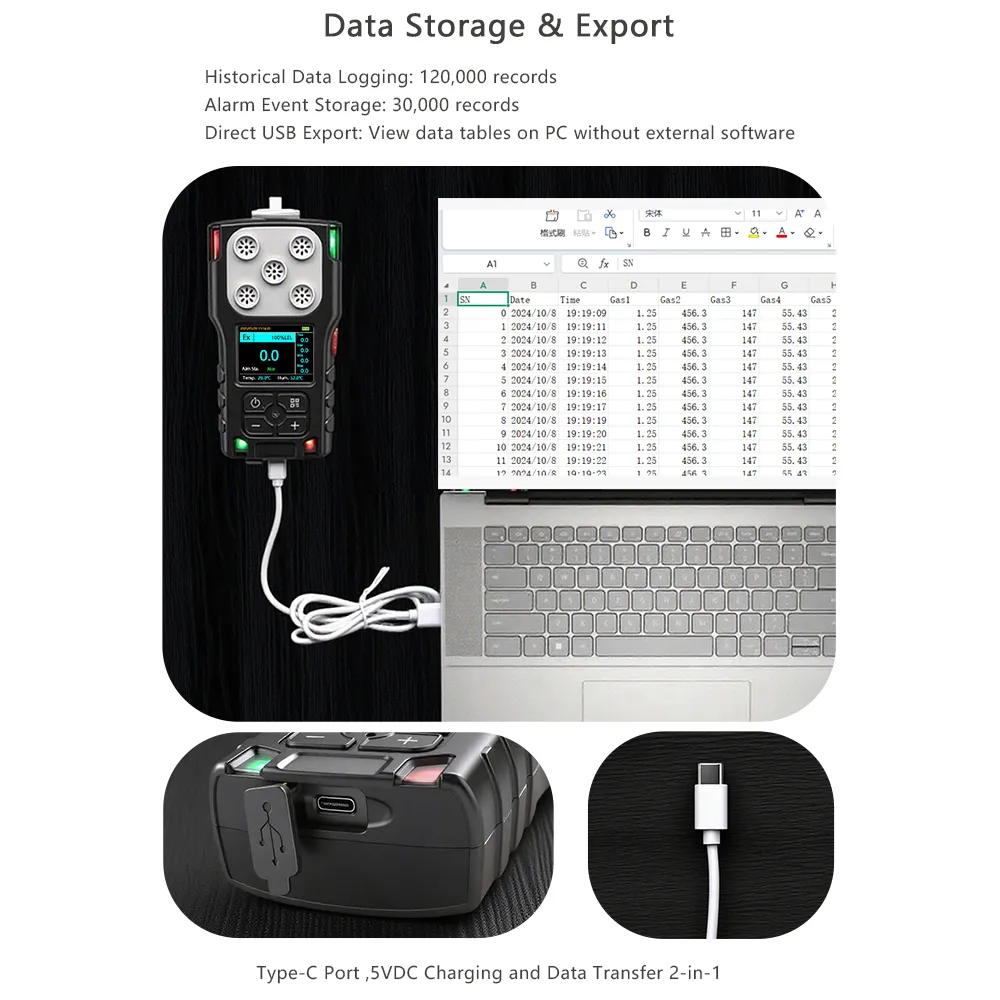

Mass Data Storage & Flexible Export Methods
Large Capacity Data Logging
It can save up to 120,000 historical detection records and 30,000 alarm event records, meeting long-term industrial monitoring demands.
Type-C 2-in-1 Charging & Data Transfer
The Type-C port supports 5VDC fast charging and direct USB data export, you can open data sheets on PC without installing extra software.
Humanized Operation & Reliable Alarm System of Ethylene Detector

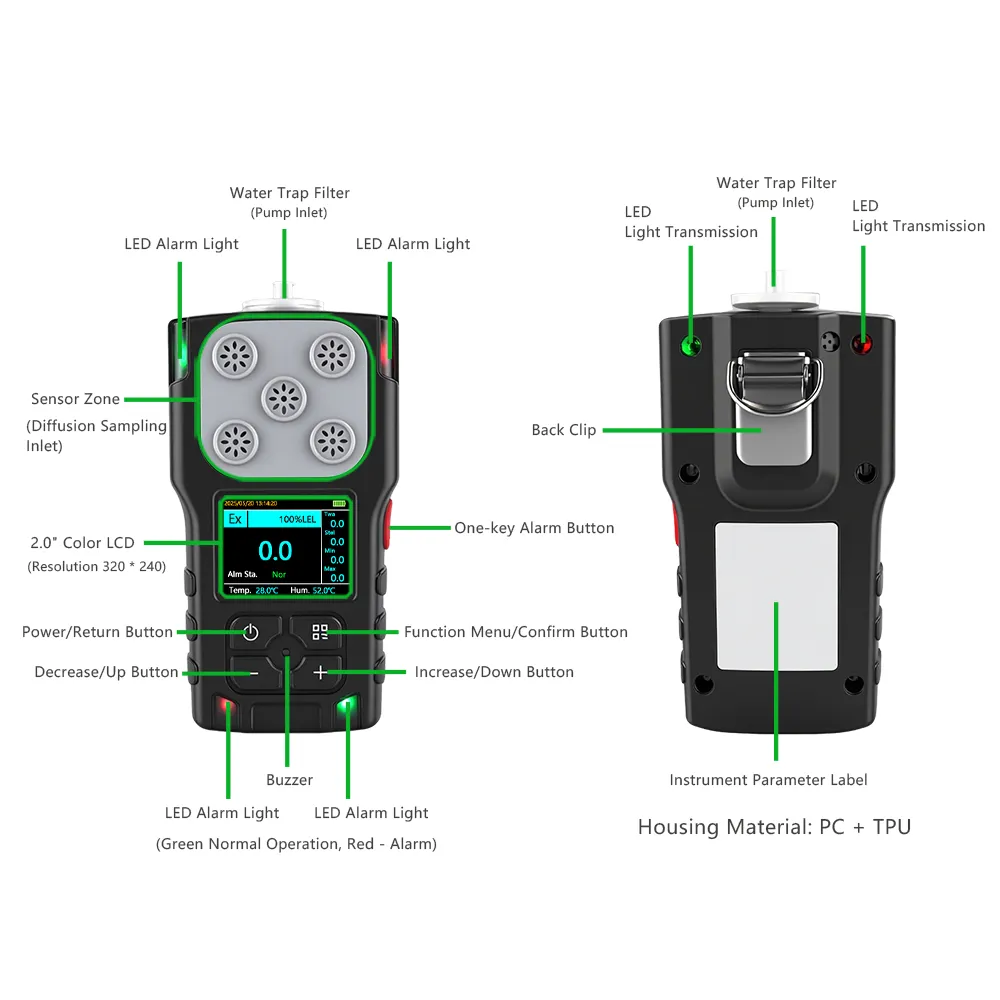

Detailed Component Function Distribution
Every component is rationally arranged: top water trap filter protects inner sensor; 4 groups of LED lights + buzzer give clear normal/alarm prompts; independent button group makes parameter setting one-key easy; back clip allows hands-free wearing during patrol inspection.
Customizable Measuring Ranges for C2H4 Detection
We provide multiple optional detection ranges including ppm-level, volume percentage and LEL ranges, to match ethylene detection needs from fruit ripening industry to petrochemical flammable gas scenarios.
Intelligent Multi-Mode Alarm Function
Besides conventional threshold alarm, it supports one-click active alarm and fall alarm, which can send emergency alert when operators fall down in dangerous working areas.
Frequently Asked Questions for C2H4 Gas Detector
Q1: Can this detector work in cold/humid industrial environment?
A: Yes, it can real-time detect ambient temperature and humidity, the IP rugged housing and water trap filter can resist damp and dust in harsh factories, mines and cold storage.
Q2: Can I change the C2H4 detection range after purchasing?
A: Yes, we support factory customization of all listed measuring ranges, you can confirm the required range before order, or recalibrate the sensor later for range switching.
Q3: How long is the service life of the C2H4 sensor?
A: The electrochemical ethylene sensor has a service life of 2-3 years under normal use, we provide original replacement sensors and calibration service.
Q4: Is this detector explosion-proof certified?
A: Yes, it has Ex explosion-proof certification, as well as CE, RoHS, SIL2/3 certifications, safe for flammable and explosive industrial occasions.
Bonus display effect demonstration
