Portable CO2 Gas Detector 0-100%VOL Handheld Carbon Dioxide Meter
Model:PCD-100 Series Portable CO₂ Gas Detector
Detection Gas:Carbon Dioxide (CO₂, single gas detection)
Detection Principle:Non-Dispersive Infrared (NDIR) Technology
Detection Range:0-1000ppm, 0-5000ppm, 0-30%VOL, 0-100%VOL (optional)
Product Description
Portable CO₂ Gas Detector: Industrial-Grade Carbon Dioxide Monitoring Solution
This compact handheld CO₂ detector is designed for on-site gas safety detection. Built with high-precision NDIR sensor, it provides stable and accurate CO₂ concentration measurement, widely applicable in confined space inspection, industrial plant monitoring, environmental air quality detection and other scenarios.
High-Precision NDIR Sensor with Wide Optional Ranges
Adopting non-dispersive infrared detection technology, this CO₂ monitor has the advantages of high accuracy, strong anti-interference and long service life. 4 measuring ranges are available for selection: 0-1000ppm, 0-5000ppm, 0-30%VOL and 0-100%VOL, to meet different detection needs from low-concentration environmental monitoring to high-concentration industrial gas detection.
Core Functions of Handheld CO₂ Gas Detector for Field Work
180° Auto Screen Rotation for Special Working Scenarios
Equipped with a 2.0-inch color LCD screen, the device supports 180° automatic screen rotation. When working in confined spaces, high-altitude operations and other special environments, workers can read the detection data clearly without adjusting the holding posture, effectively improving operation convenience and work safety.
Multiple Wireless Connectivity for Smart Data Management
This CO₂ detector integrates 4G, WiFi, Bluetooth and LoRa four wireless transmission methods, realizing real-time data upload and remote monitoring:
Mobile APP supports real-time data viewing, historical record query and alarm reminder
Computer management platform supports multi-device management and data export
Bluetooth thermal printer enables on-site printing of test reports
The complete data logging and transmission system meets the compliance management requirements of industrial testing.
Triple Alarm System + One-Key Alarm for Safety Protection
The device is designed with sound, light and buzzer triple alarm. When CO₂ concentration exceeds the preset threshold, the red LED flashes, the buzzer alarms, and the screen displays alarm information synchronously, reminding on-site personnel to avoid risks in all directions. A one-key alarm button is set on the side of the body, which can manually trigger the alarm in emergency situations to improve emergency response capability.
Structure & Ergonomic Design of Portable Carbon Dioxide Tester
Durable Housing & Anti-Slip Portable Design
The body is made of PC+TPU composite material, which has good drop resistance, wear resistance and corrosion resistance, and can adapt to complex industrial site environments. The anti-slip texture on the side of the body, matched with the integrated back clip on the back, allows workers to hold it by hand or clip it on work clothes, freeing hands and improving operation flexibility.
Pump Suction Sampling with Water Trap Filter
The device adopts pump suction sampling method, and the top air inlet is equipped with a water trap filter, which can effectively filter water vapor and dust, protect the internal sensor and prolong the service life of the device. Pump suction sampling can collect gas in positions that are difficult to reach directly, such as pipelines and confined spaces, improving the comprehensiveness and accuracy of detection.
Package & Accessories of Industrial CO₂ Gas Detector
The standard package includes: CO₂ gas detector main unit, aluminum alloy protective case, Type-C charging cable, user manual, qualification certificate. The aluminum alloy protective case has shockproof, dustproof and waterproof functions, which is convenient for outdoor carrying and storage, and protects the device from damage during transportation.
Charging & Daily Maintenance of Handheld CO₂ Monitor

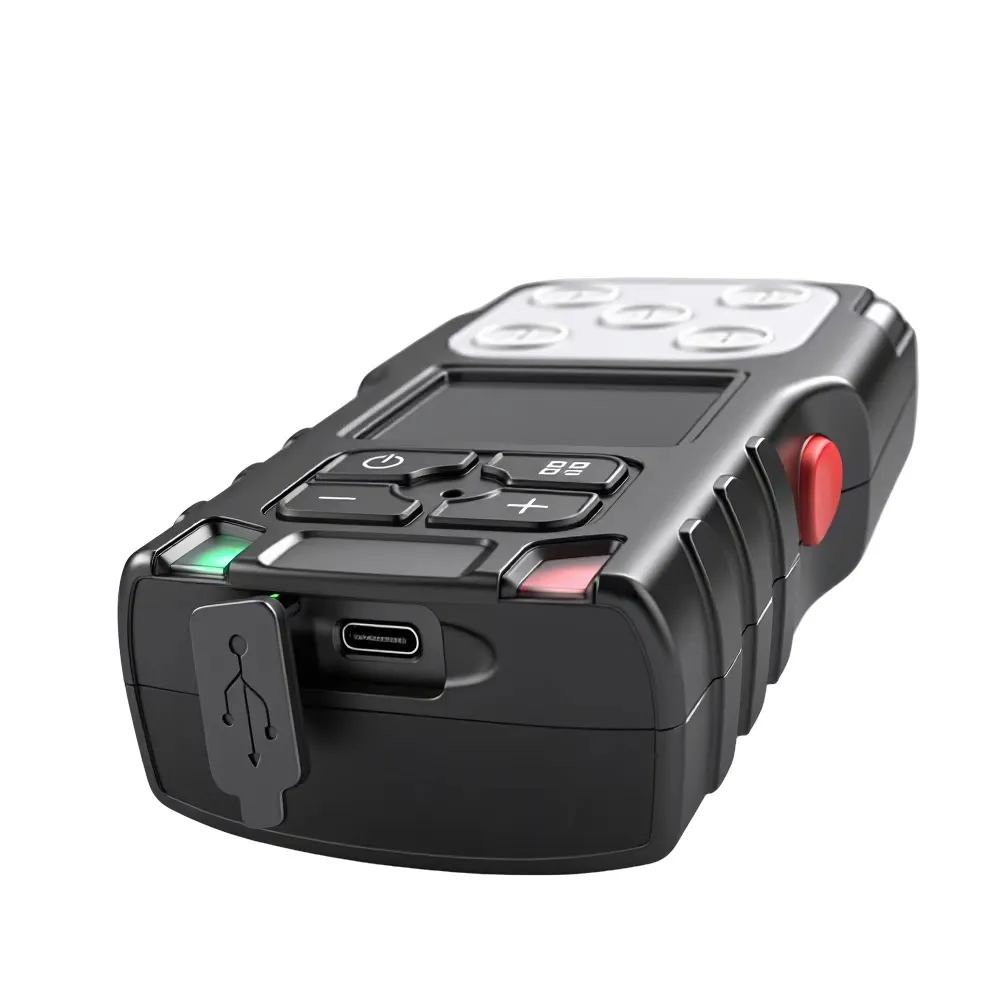

Universal Type-C Charging & Long Battery Life
The device adopts a universal Type-C charging interface, which is compatible with common charging devices such as mobile phone chargers and power banks, making charging convenient for outdoor operations. Built-in large-capacity lithium battery, it can work continuously for a long time after being fully charged, meeting the needs of long-time on-site detection.
Daily Maintenance Tips for Long-Term Use
1.Replace the filter element of the top water trap regularly to prevent water vapor and dust from entering the sensor chamber
2.Avoid exposing the device to high-concentration corrosive gas environment for a long time
3.It is recommended to calibrate the device every 6-12 months to ensure detection accuracy
4.For long-term storage, fully charge the device and place it in a dry, normal temperature environment
Frequently Asked Questions (FAQ) About CO₂ Gas Detector
What is the detection principle of this portable CO₂ gas detector?
This CO₂ detector adopts Non-Dispersive Infrared (NDIR) technology, which features high accuracy, good stability and long service life, specially designed for carbon dioxide concentration detection.
What measuring ranges can I choose for this carbon dioxide meter?
We provide 4 optional measuring ranges: 0-1000ppm, 0-5000ppm, 0-30%VOL and 0-100%VOL. You can select the appropriate range according to your actual application scenario.
Can this CO₂ monitor sync data to mobile phones or computers?
Yes, this device supports 4G, WiFi, Bluetooth and LoRa connectivity. You can view real-time data and historical records through mobile APP or computer management platform, and also print detection reports via Bluetooth printer.
Is this handheld CO₂ detector suitable for confined space detection?
Yes, with pump suction sampling design and portable handheld structure, this CO₂ detector is widely used in confined space inspection, industrial safety monitoring, environmental air quality detection and other scenarios.
How often should this CO₂ gas detector be calibrated?
Under normal use conditions, we recommend calibrating the device every 6 to 12 months to ensure detection accuracy. If it is frequently used in harsh environments, the calibration cycle can be shortened appropriately.
