Portable Ar Argon Single Gas Detector HNAG920-Ar Industrial Monitor
Model:HNAG920-Ar
Detection:Single Argon (Ar) Inert Gas Concentration Detection
Detection Principle:High-precision Thermal Conductivity Gas Sensor (pre-calibrated exclusively for Argon inert gas measurement)
Detection Range:4 optional measuring ranges: 0-10%vol, 0-50%vol, 0-99.999%vol, 0-100%vol
Product Description
HNAG920-Ar Portable Argon Ar Single Gas Detector Product Overview

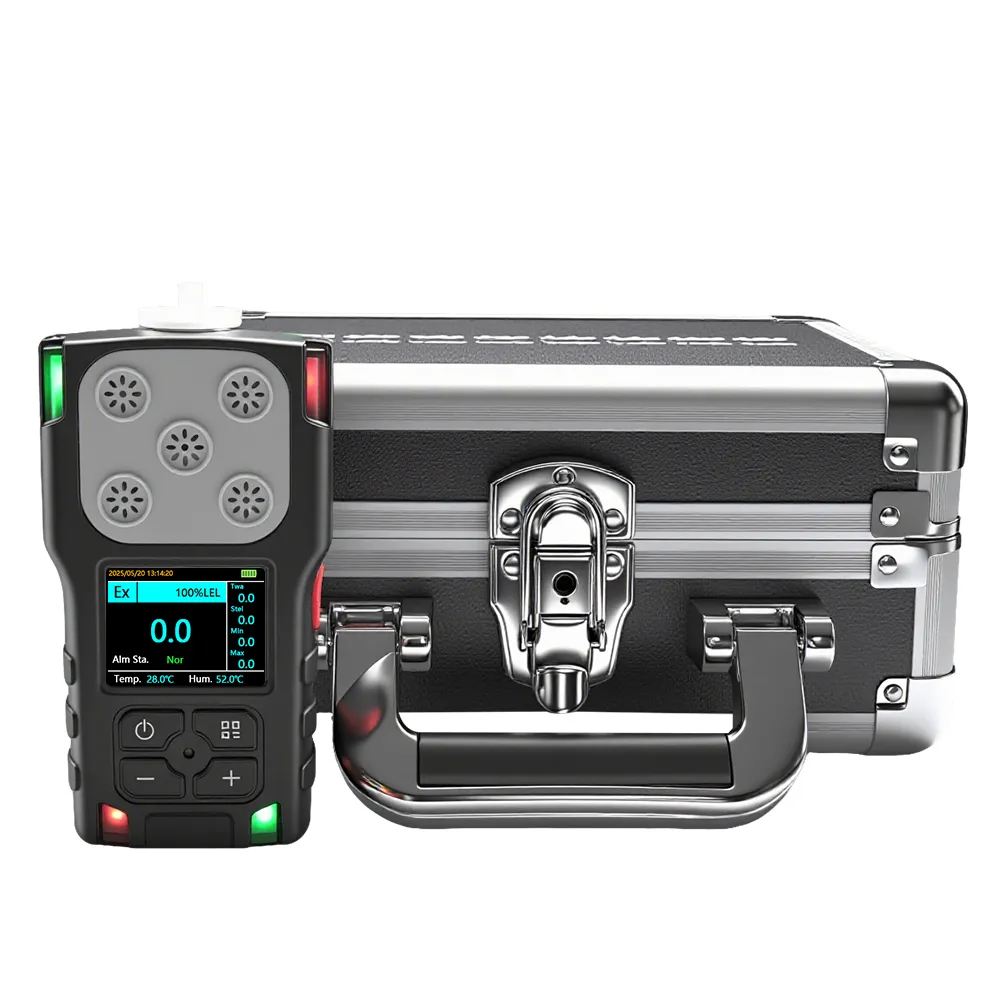

Complete Delivery Package of Argon Gas Detector
Our HNAG920-Ar argon detector is matched with a shock-resistant aluminum alloy storage case, which avoids collision damage during outdoor transportation and on-site storage, fully meeting industrial mobile inspection needs.

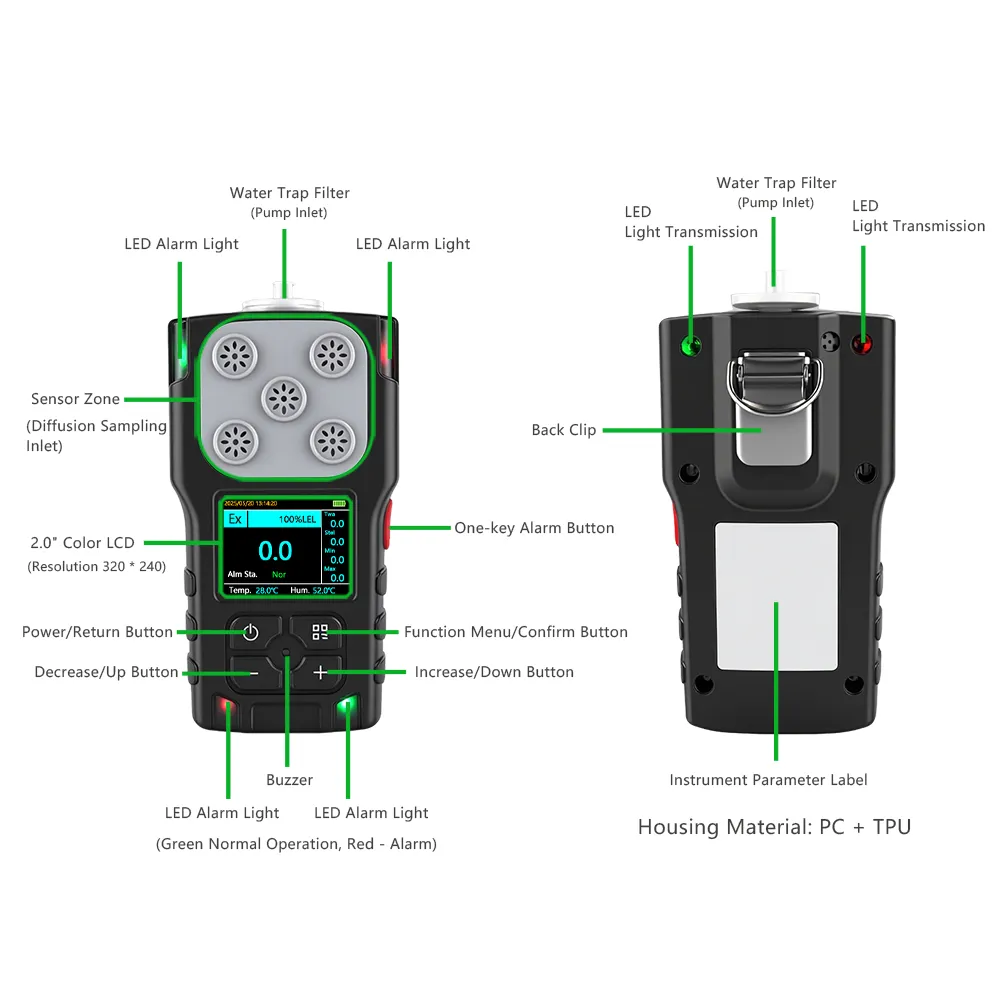

Ergonomic Structure of Handheld Ar Argon Detector
Front Panel & Sampling System Design
The front is fitted with a 2.0-inch high-resolution color LCD and 4 operation keys, with 4-corner LED alarm lights + built-in buzzer for multi-dimensional alerts. The top sensor zone supports diffusion/pump dual sampling, and a water trap filter can block water vapor to protect the internal sensor.

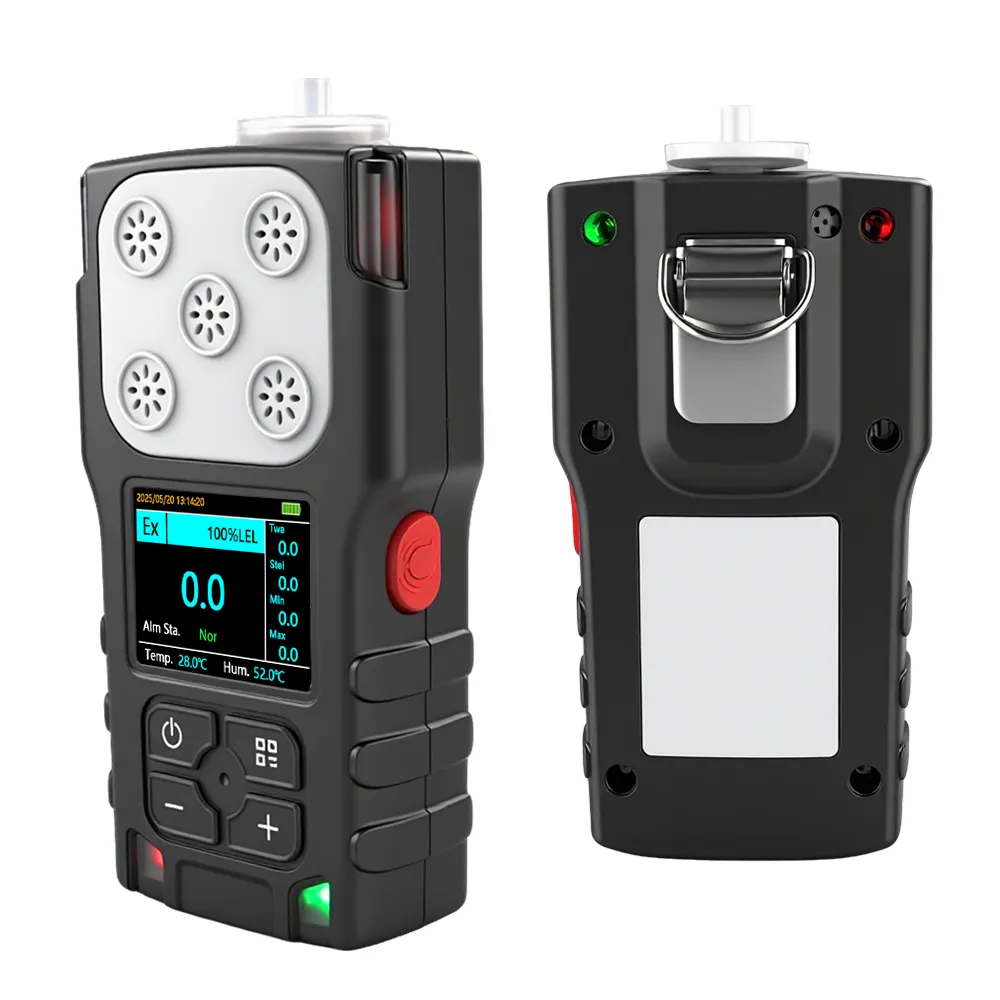

Back Wearable & Rugged Housing Design
The back has a metal back clip for clipping on work clothes or equipment. The PC+TPU composite housing has excellent anti-drop, dustproof and waterproof performance, adapting to harsh factory working conditions.
Core Functional Advantages of HNAG920-Ar Argon Gas Leak Detector

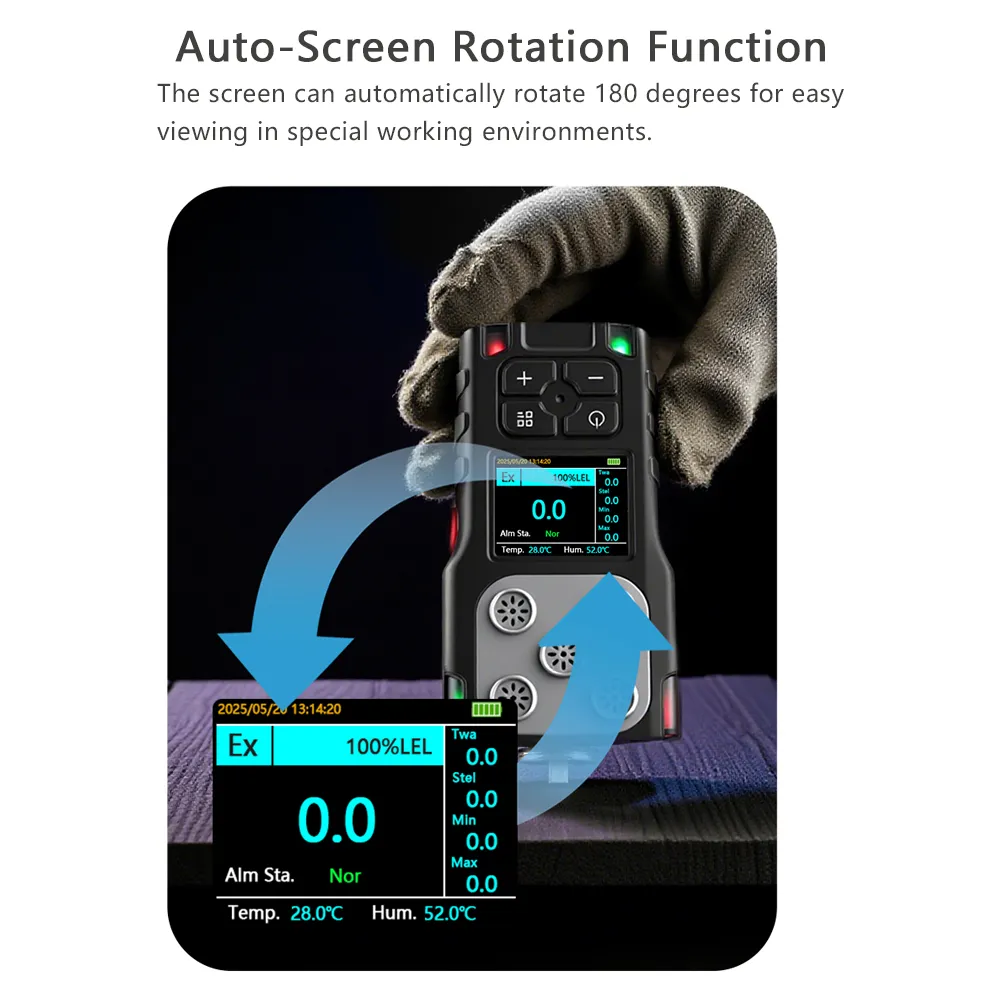

Auto 180° Screen Rotation for Complex Scene Viewing
The auto screen rotation function lets the display flip 180° automatically, so operators can read data clearly even when holding the detector upside down in narrow confined spaces like pipeline cabins.

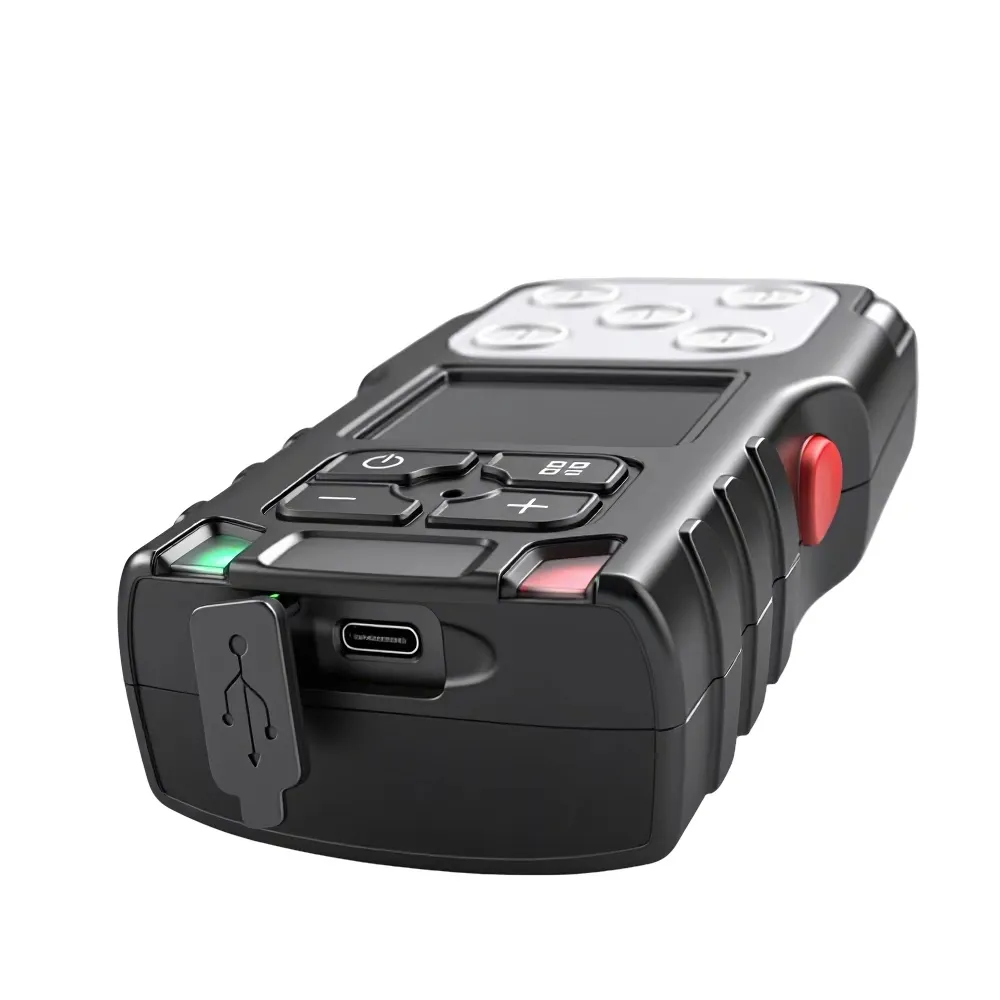

Long-Lasting Waterproof USB Charging System
Charging Interface & Battery Details
The hidden Type-C charging port has a waterproof dust plug, supporting fast recharging to realize long continuous working time for 24h uninterrupted argon monitoring tasks.

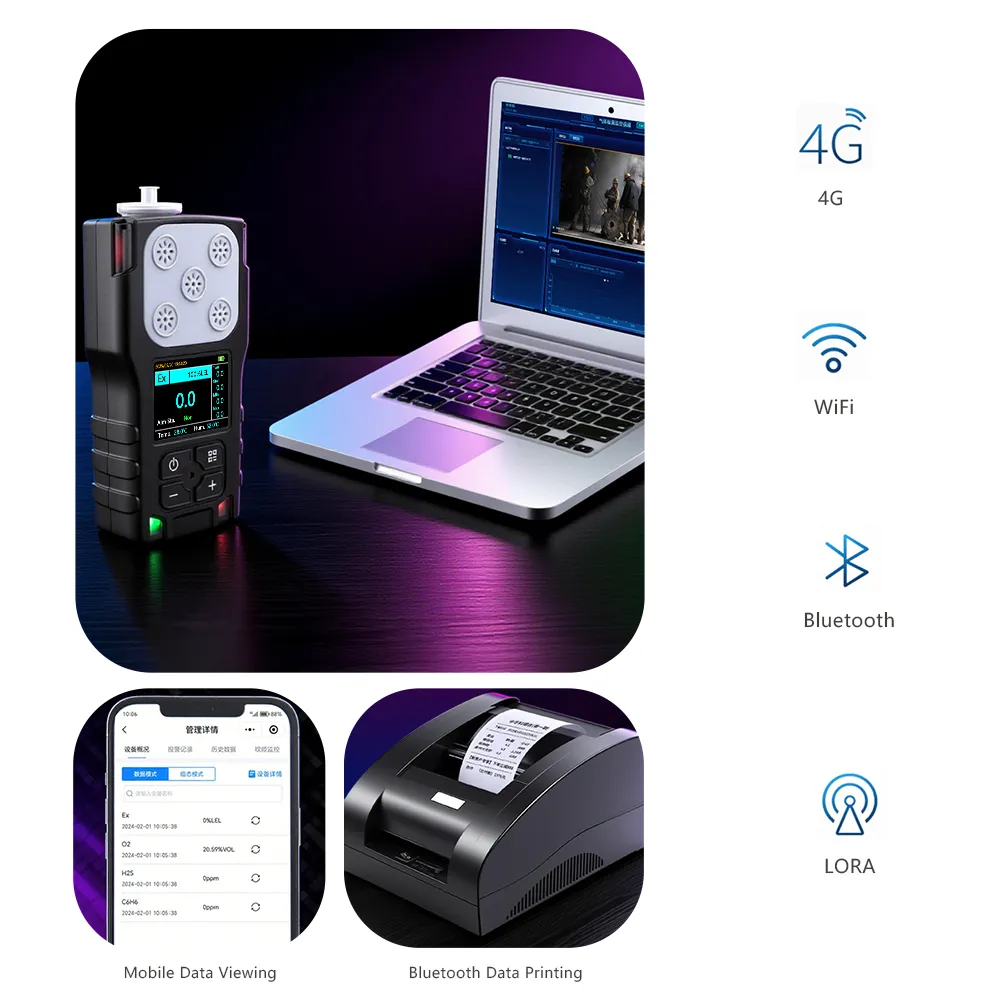

Multi-Mode Wireless Data Management & On-Site Printing
This Ar detector supports 4G/WiFi/Bluetooth/LoRa 4 transmission modes. Users can check historical & real-time data remotely via mobile app, and print detection reports instantly with a Bluetooth portable printer.
Official Technical Specifications of HNAG920-Ar Argon Gas Monitor
Core Gas Detection Parameters
Detectable Gas & Custom Ranges
Target gas: Single inert Argon (Ar)
Optional ranges: 0-10%vol, 0-50%vol, 0-99.999%vol, 0-100%vol
Sensing Technology
Industrial thermal conductivity sensor with exclusive argon calibration, delivering stable and repeatable concentration test results.
Environmental & Physical Parameters
Applicable Working Conditions
Working temperature: -20℃ ~ +50℃; Working humidity: 10%~95%RH (non-condensing)
Housing Property
Two-color injection molded PC+TPU shell, compact handheld size for easy portable carrying
Frequently Asked Questions for HNAG920-Ar Argon Gas Detector
Top Search FAQs for Argon Gas Detector
Q1: Can I customize the argon detection measuring range?
A: Yes, we provide 4 standard optional ranges (0-10%vol/0-50%vol/0-99.999%vol/0-100%vol) to match different industrial argon concentration scenarios.
Q2: Can I monitor argon data remotely out of the workshop?
A: Sure, 4G/WiFi/LoRa modules support cloud upload, you can check all detection data via mobile app or web dashboard anywhere.
Q3: How does the detector give an over-limit alarm?
A: It triggers red LED flash, loud buzzer and one-key emergency alarm, and you can adjust high/low alarm thresholds following your industry safety rules.
Q4: Is it workable in high-humidity welding workshops?
A: Yes, the sampling inlet has a water trap filter and the charging port has a waterproof plug, it runs stably in high-humidity non-condensing environments.
Q5: Can I output paper detection records on-site?
A: It supports Bluetooth connection with portable thermal printers, you can print complete test reports instantly at construction sites.
