Combustible gas detectorfrom China manufacturer
Category: Products Fixed gas detector Pipeline type combustible gas detector
Key words: Products
Model: SK/MIC-600-EX
Measurement object: Combustible gas
Product Description
The pipeline type high temperature combustible gas concentration detector is suitable for working conditions.
Our state-of-the-art VOC gas detector is designed to accurately detect and measure the presence of harmful VOCs in your environment. With its advanced sensor technology, this detector can quickly identify even the smallest traces of VOCs, ensuring that you are always aware of any potential health risks.
Our newest VOC gas detector features a user-friendly interface, making it easy to operate and understand. The compact and portable design allows for convenient placement in any room or area where VOC detection is needed. Additionally, the detector comes with a built-in alarm system that will alert you when VOC levels exceed safe limits, giving you peace of mind knowing that you are taking proactive steps to protect your health and wellbeing.
Investing in a reliable VOC gas detector is essential for maintaining a healthy living or working environment. Don't wait until it's too late – purchase our newest VOC gas detector today and take control of your indoor air quality. With fast and accurate detection, you can rest assured that you are doing everything possible to safeguard yourself and those around you from harmful VOCs.
Only suitable for high temperature pipeline, no water vapor, normal atmospheric pressure, no dust, no corrosion, the working conditions of use.
Product parameters of pipeline type high temperature combustible gas concentration detector
| Output signal |
① 4-20mA signal: standard 12-bit precision 4-20mA output chip, transmission distance 1Km ② RS485 signal: standard MODBUS RTU protocol, transmission distance 1Km ③ voltage signal: 0.4-2V,0-5V,0-10V output, optional (voltage output and current output two choose one) ④ Switching signal: standard 1 set of passive contact relay, capacity 220VAC3AV/24VDC3A |
GPRS, 4G, WIFI, LORA, ZigBee and other wireless signals | |
| Measuring gas | high temperature combustible gas | Detection principle | catalytic combustion |
| Range selection | 0-100% LEL (more range inquiry customer service) | Resolution | 0.1%LEL |
| Sampling accuracy | ±3%F.S | Response time | T90<10S |
| Working temperature | -20~50 ℃ | Working humidity | 0-95%RH |
| Storage temperature | -20~50 ℃ | Preheating time | 10S |
| Working current | ≤50mA | Working air pressure | 86kpa-106kpa |
| Operating voltage | DC5V±1%/DC24±1% | Baud rate | 9600 |
| Installation method | Pipe Installation | Warranty period | 1 year |
| Exterior Material | Aluminum alloy | Service life | 1 to 3 years |
| Protection level | IP66 waterproof splash and short time rain | Explosion-proof grade | E x d I IC T 6 |
| Receiving equipment | User computer, control alarm, PLC, DCS, DDC, etc. | ||
| Alarm mode | On-site sound and light alarm, external alarm, remote controller alarm, computer data acquisition software alarm, etc. | ||
| Alarm Settings | Standard configuration of two-level alarm, optional three-level alarm; alarm mode can be set: regular high and low alarm, interval control alarm | ||
| Connection cable |

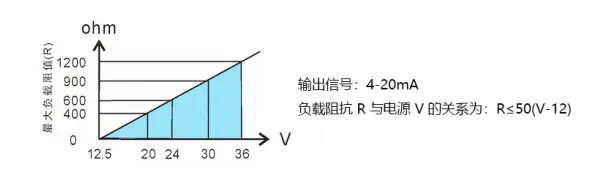

① Select three-core shielded cable for 4 ~ 20mA and four-core cable for RS485. When the distance exceeds 1000 m (with a detector), the single wire diameter shall be ≥ 1.5mm, and the shielding layer shall be connected to the ground. ② wireless transmission: can be built-in LORA, Zigbeg module, short-range wireless transmission; external GPRS/4G module, remote data transmission to the cloud platform, can be viewed on the computer side and mobile phone side of the history, not limited by distance (optional) |
||
| Optional accessories |
Normal temperature and high humidity pretreatment system, high temperature and normal humidity pretreatment system, high temperature and high humidity pretreatment system, high temperature and high humidity and high dust pretreatment system, pressure reducing valve, flow meter, chloroform gas measurement, 24VDC or 220AC sampling pump (sampling distance is 10 meters), vacuum pump (sampling distance is more than 40 meters), 24V switching power supply, 220V to 24V power adapter. Computer monitoring accessories: free upper computer software, USB to RS485 conversion cable, RS485 to network port converter if network transmission is required. Mounting bracket |
||
Pipeline type high temperature combustible gas concentration detectorProduct Features
● Intrinsically safe circuit design, explosion-proof certification, secondary lightning protection, anti-static, lightning protection and anti-static capabilities exceed national standards, and resist high-intensity pulse surge current impact. High reliability and stability.
● Standard bus RS485 and 4 ~ 20mA standard signals are output at the same time, one group of relay switch output, optional frequency output 200-1000Hz, 1~5V output, wireless transmission (10-50km or unlimited distance). It can be wired or wireless remote real-time monitoring, upload data to mobile phones or transmit to the Environmental Protection Bureau, other monitoring centers, monitoring equipment, and monitoring computers through local area networks and the Internet, and monitor the concentration of the site in real time through free upper computer software or gas alarm controllers.
● Compatible with all kinds of secondary table, data acquisition module, PLC, DCS system, can directly drive the solenoid valve, fan, alarm and other equipment, can also drive the intermediate relay to drive high-power equipment.
● Standard infrared remote control, can be achieved in dangerous situations without open cover operation.
● 2.5 inch HD color screen (TF) shows real-time concentration, temperature and humidity.
● Automatic zero tracking to prevent drift, temperature compensation, multi-level calibration, can also meet the national standard and local and provincial metrology bureau standards in various regions.
Application Scenarios
Petroleum and petrochemical, chemical plants, smelters, steel plants, coal plants, thermal power plants, pharmaceutical research, pharmaceutical production workshops, tobacco companies, environmental monitoring, school research, building construction, fire alarm, sewage treatment, industrial gas process control, boiler room, Garbage treatment plant, tunnel construction, oil pipeline, gas filling station, underground gas pipeline maintenance, indoor air quality inspection, safety protection in hazardous places, aerospace, military equipment monitoring, etc.

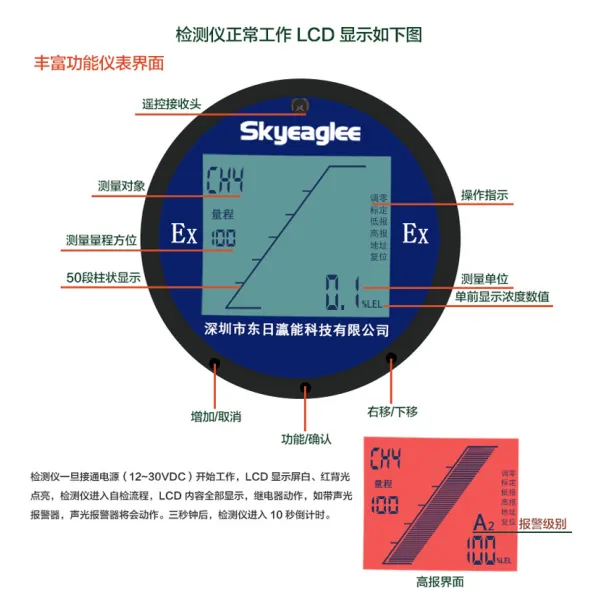

On-line combustible gas concentration detector interface display introduction
The instrument has a total of 3 buttons, namely "add/cancel", "function/confirm", "move right/down" (hereinafter referred to as "add" ("cancel"), "function" ("confirm"), "move right" ("move left")). The three key positions are as follows. Press the "Function" button.

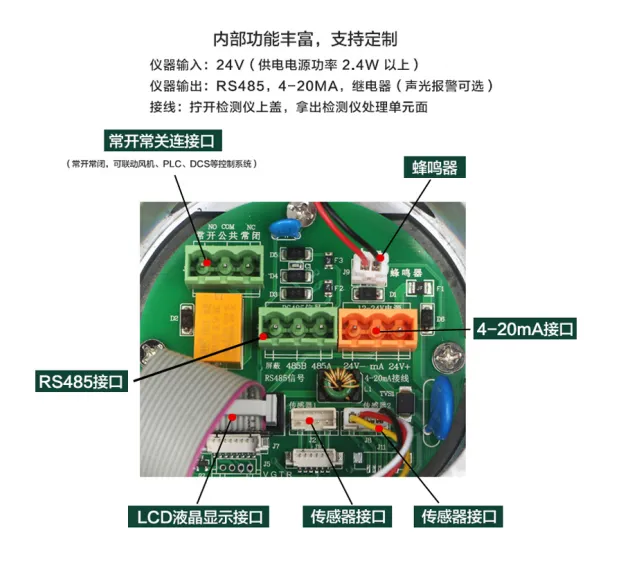

Internal diagram of online combustible gas concentration detector
