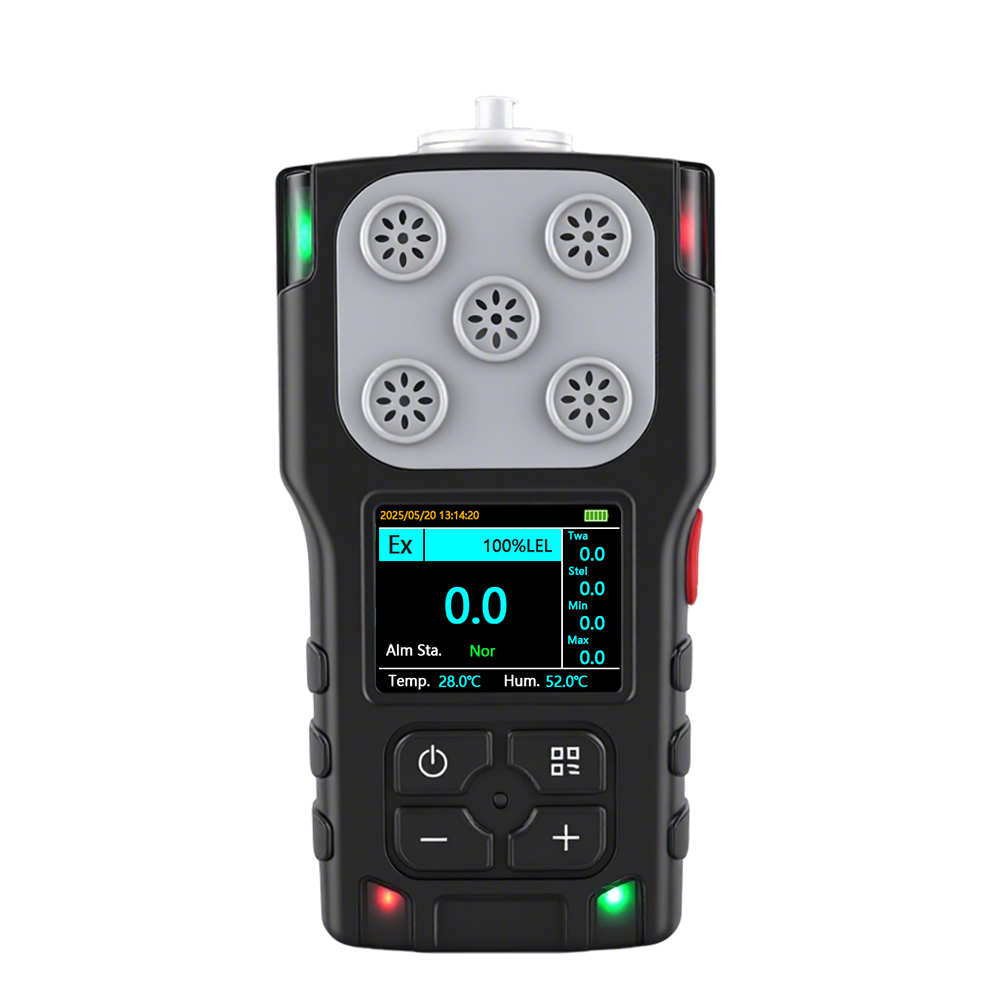

Trending pump suction diffusion portable combustible gas detector co co2 no no2 toxic gas detector Wireless transmission for Underground pipeline Sewage well Cabin
Category: Products Portable gas detector Portable gas detector
Key words: Products
Model: HNAG920
Measurement object: CO2/Ex/CH4/CO/H2S/O2/N2/NH3/CL2/H2/He/Ar/CH2O/O3/NO/NO2/SO2/C2H4O/PH3/COCL2/HBR/HCL/HCN/CLO2/SIH4/CH3BR/SO2F2/F2/HF/C2H2/CS2/SF6/C2H4/C2H6O/H2O2/VOC/PM/RH
Category: Products Portable gas detector Portable gas detector
Key words: Products
Model: HNAG920
Measurement object: CO2/Ex/CH4/CO/H2S/O2/N2/NH3/CL2/H2/He/Ar/CH2O/O3/NO/NO2/SO2/C2H4O/PH3/COCL2/HBR/HCL/HCN/CLO2/SIH4/CH3BR/SO2F2/F2/HF/C2H2/CS2/SF6/C2H4/C2H6O/H2O2/VOC/PM/RH
Previous: Handheld nitrogen gas detector 0-100%vol
Product Description

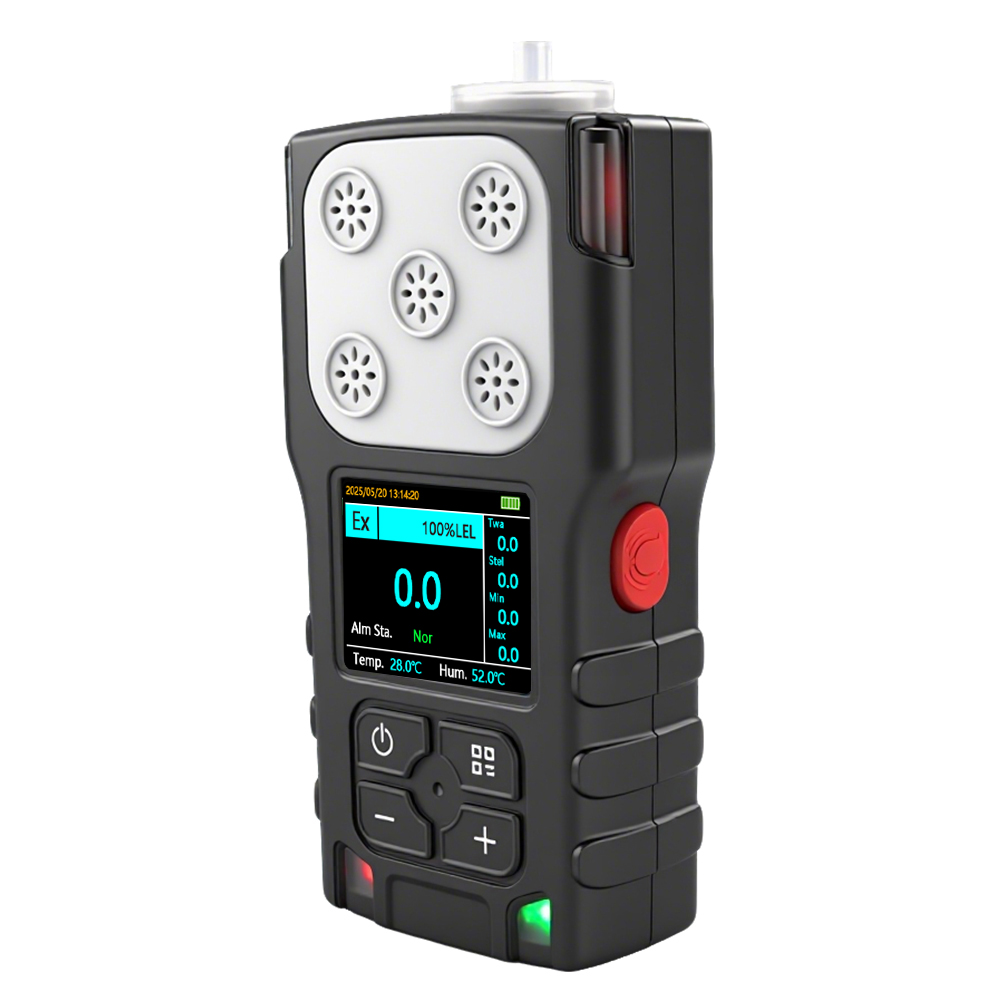

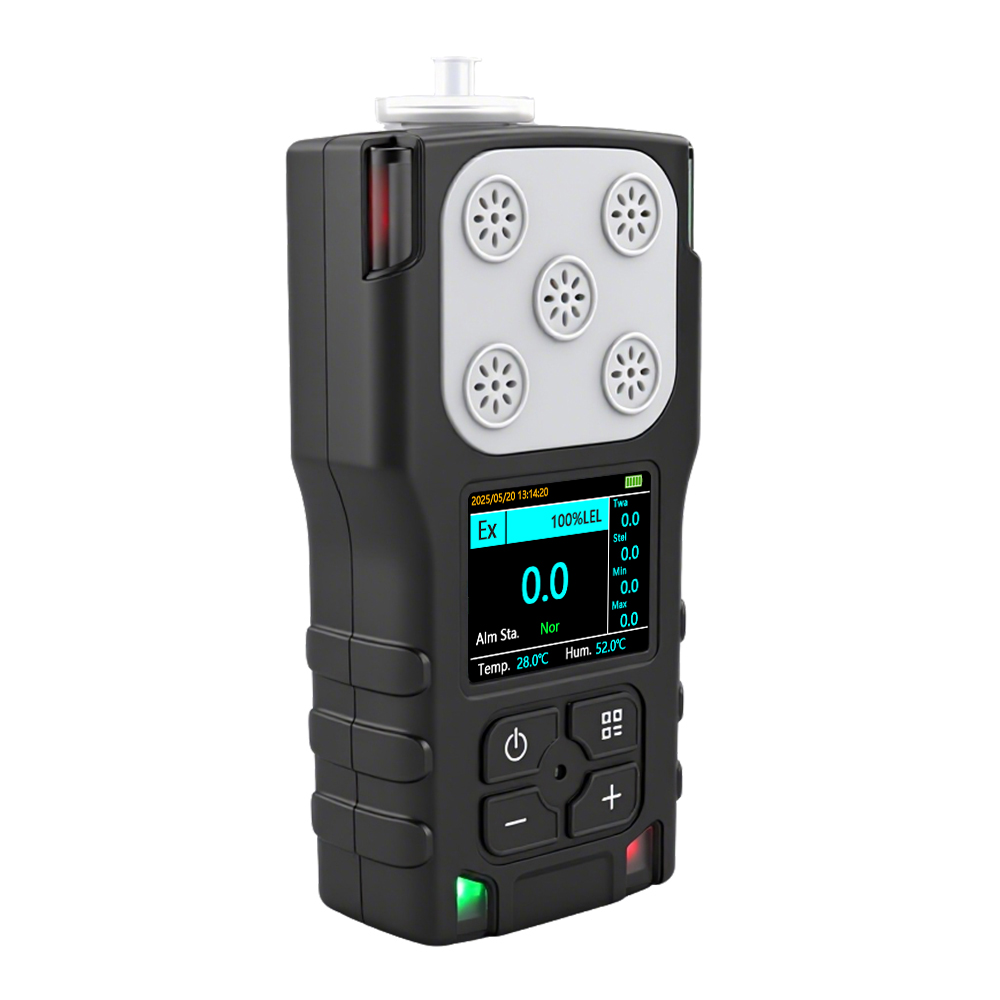

Portable Pump Suction Diffusion Gas Analyzers Gas Testing Equipment
gas detector
| Output | Reserve a USB interface externally and use a USB cable to communicate with a computer to achieve data export and deletion | 4G, LORA, Bluetooth | |
| Measure gas | Combustible gas/Oxygen/carbon monoxide/hydrogen sulfide/carbon dioxide (customizable) | Detection principle | Catalytic combustion/infrared NDIR// electrochemistry |
| Range selection | For more range inquiries, please contact customer service. | Resolution | Customized according to demand |
| Sampling accuracy | ±3%F.S | Response time | T90<10S |
| Working temperature | -20 to 50℃ | Working humidity | 0-95%RH |
| Storage temperature | -20 to 50℃ | Preheating time | 10S |
| Battery capacity | 2400mA | Working air pressure | 86kpa-106kpa |
| Working voltage | DC5V±1%/DC24±1% | Baud rate | 9600 |
| Detection method | Pump suction and diffusion integrated type | Warranty period | One year |
| External dimensions | 42.5×78.2×41.6mm (excluding gas filter and back clip) | Service life | One to three years |

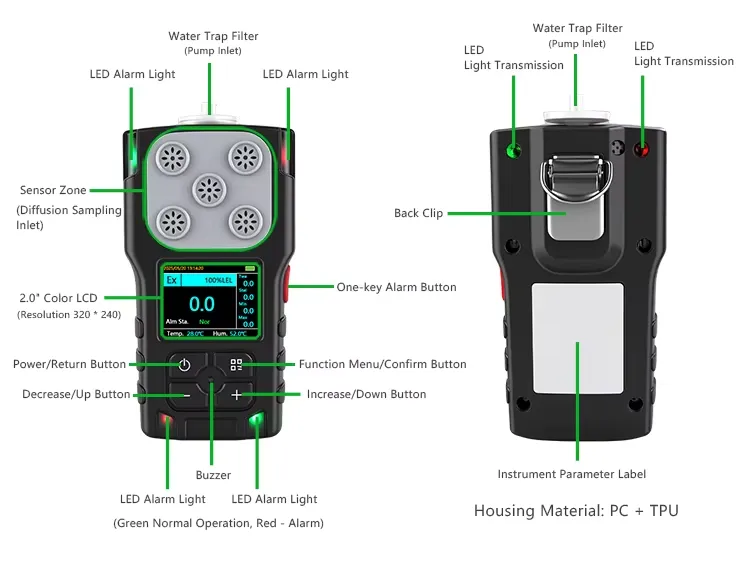

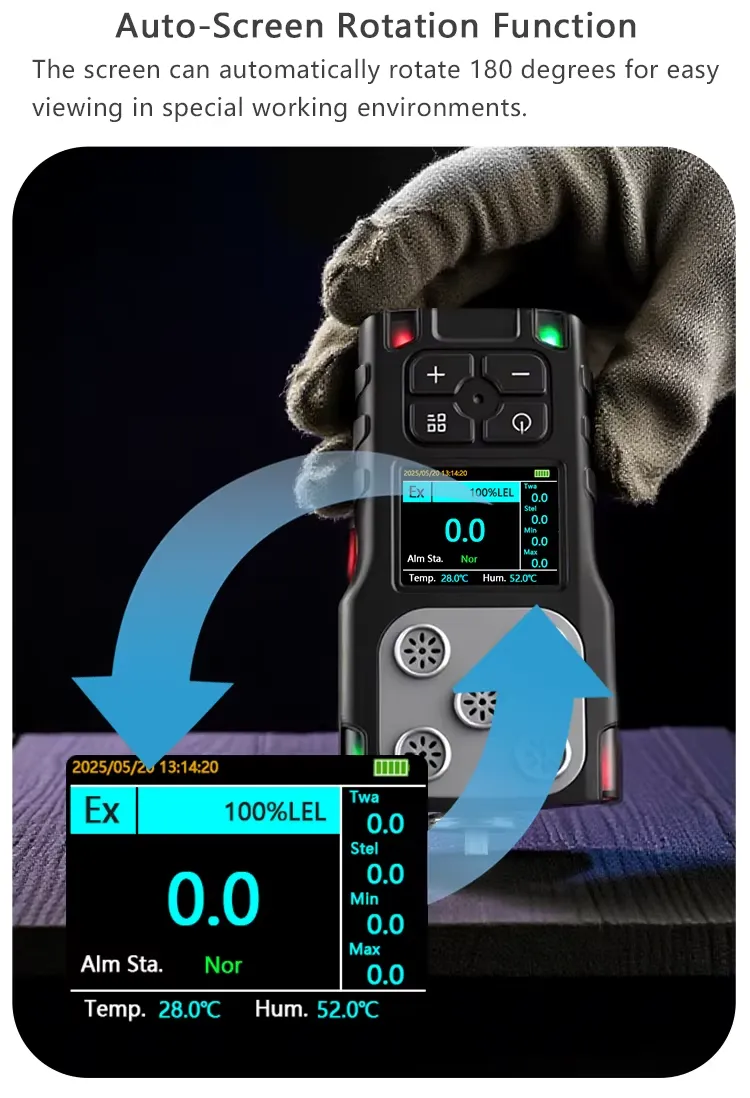

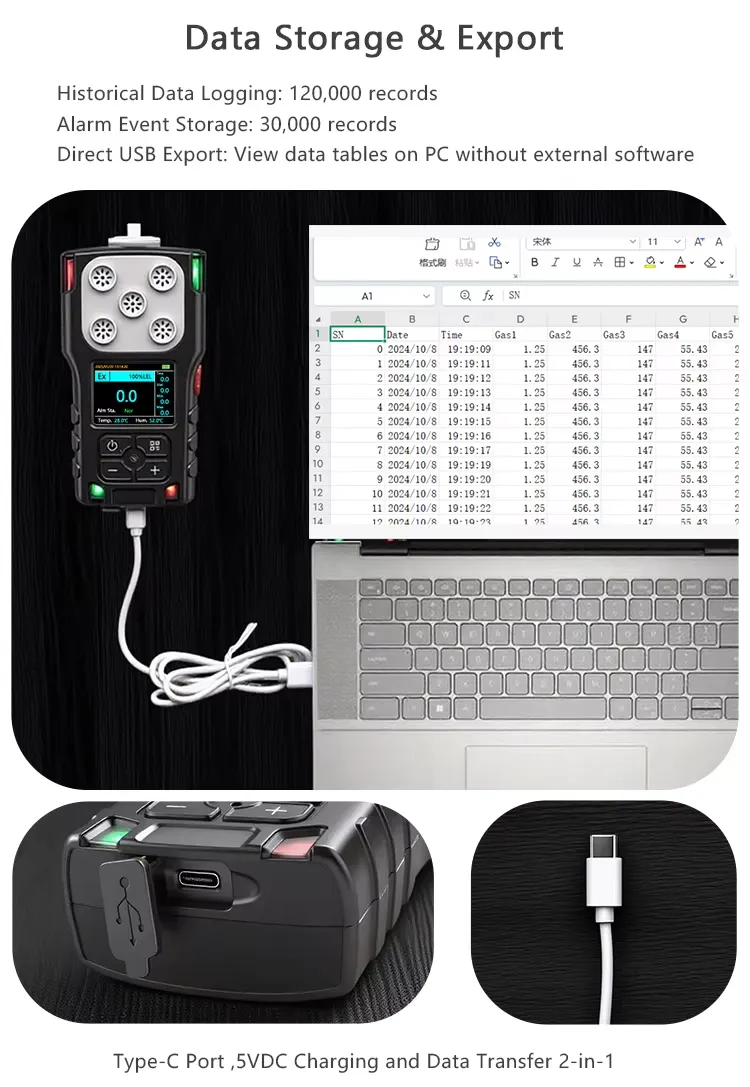

| Screen display | 2.0-inch color LCD, resolution 320*240 | Local storage | It can store 120,000 historical data points and 30,000 alarm records |

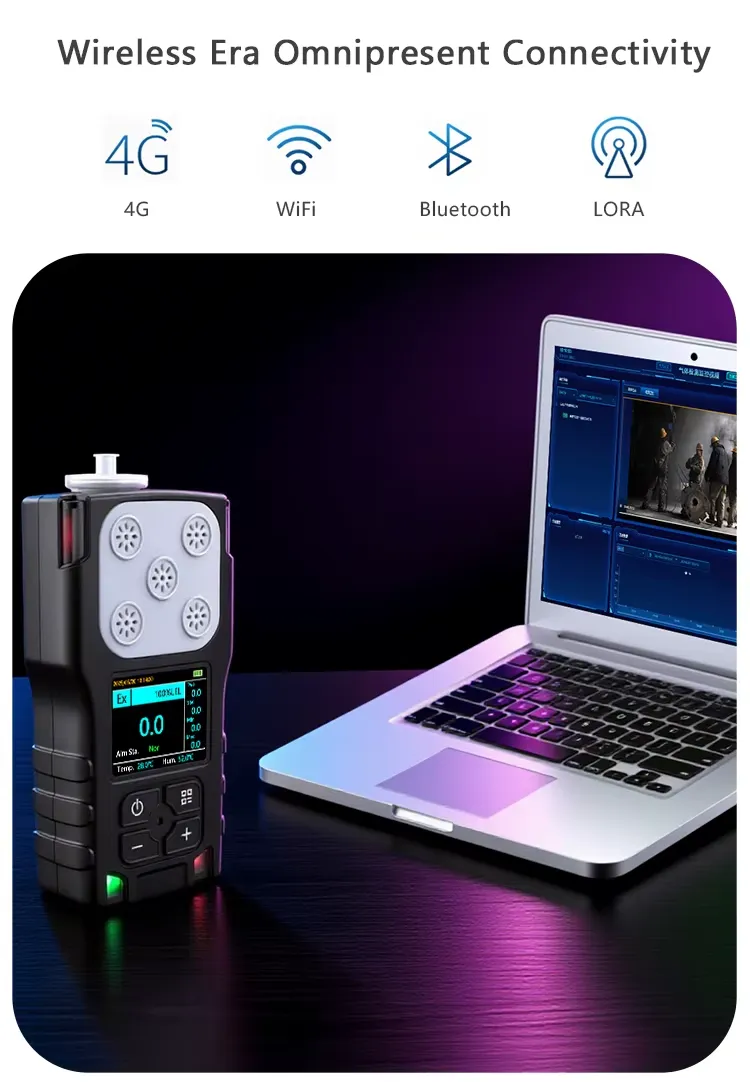

| Receiving equipment | In 4G/LORA/ Bluetooth modes, it can be connected to users' computers, control alarms, etc. for reception | ||
| Alarm method | This machine is equipped with alarm, LORA and 4G transmission alarm | ||
| Alarm Settings | The standard configuration is two-level alarm, and three-level alarm is optional. The alarm modes can be set: conventional high and low alarm, and range control alarm | ||
| Data interface | Type-C (interface), combined with the charging interface, charging interface: 5VDC, combined with the data interface | ||

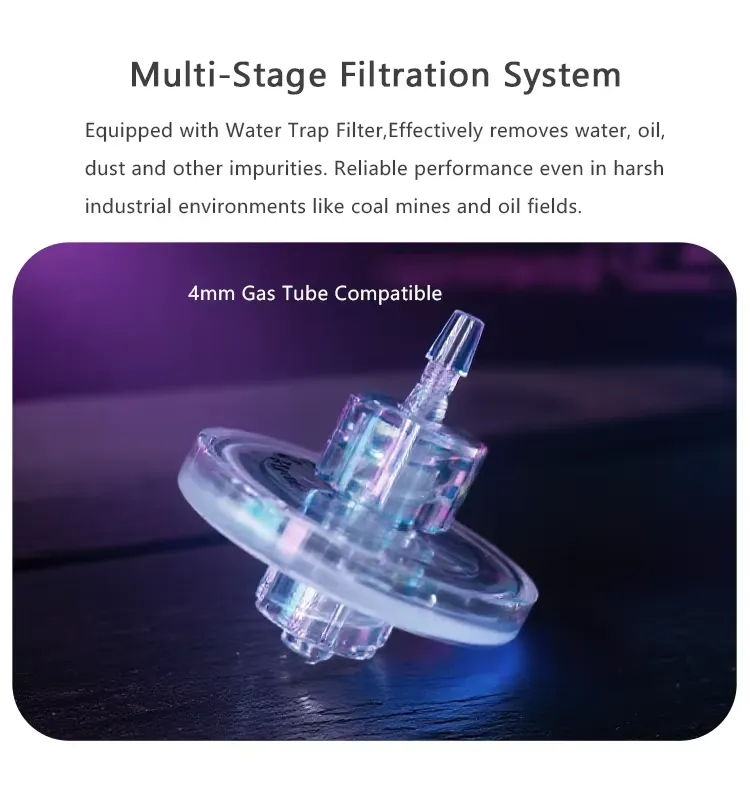

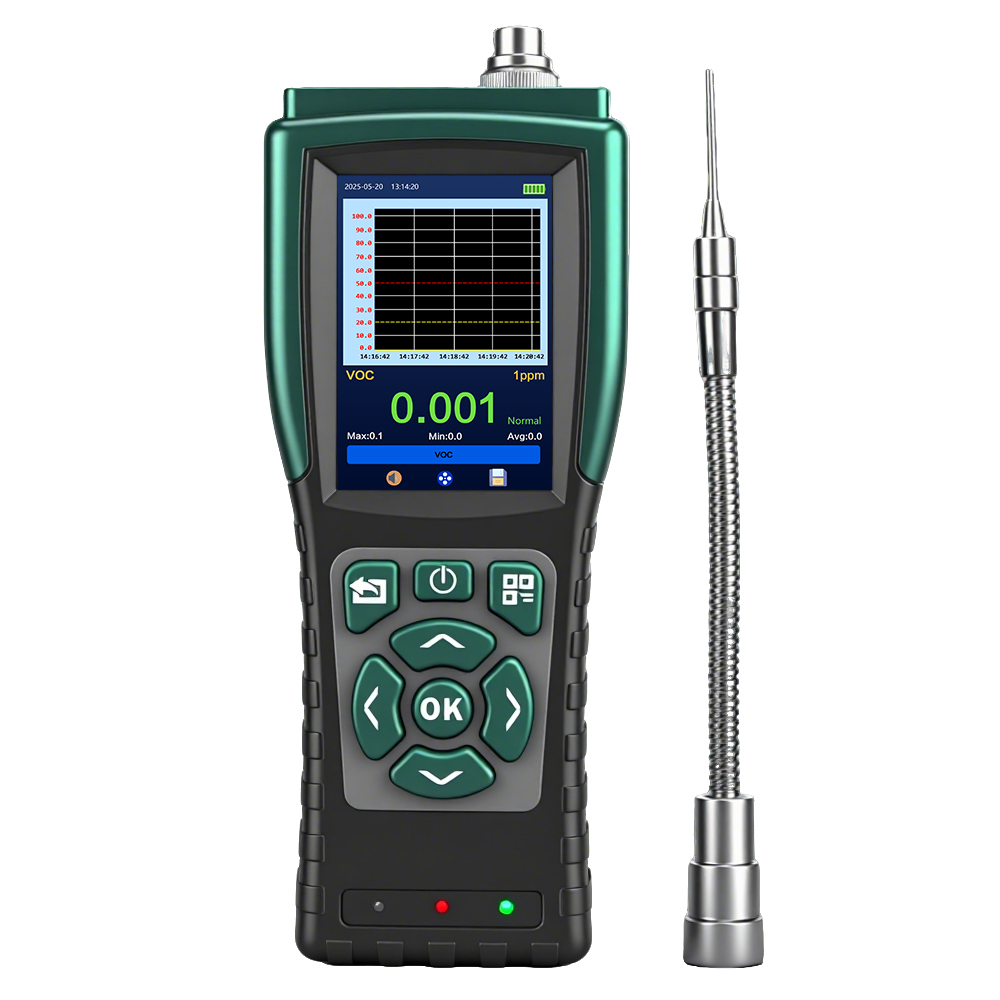

| Optional accessories | In high-temperature environments, a high-temperature sampling handle can be optionally equipped | ||
Portable Pump Suction Diffusion Gas Analyzers Gas Testing Equipment
gas detector
| Output | Reserve a USB interface externally and use a USB cable to communicate with a computer to achieve data export and deletion | 4G, LORA, Bluetooth | |
| Measure gas | Combustible gas/Oxygen/carbon monoxide/hydrogen sulfide/carbon dioxide (customizable) | Detection principle | Catalytic combustion/infrared NDIR// electrochemistry |
| Range selection | For more range inquiries, please contact customer service. | Resolution | Customized according to demand |
| Sampling accuracy | ±3%F.S | Response time | T90<10S |
| Working temperature | -20 to 50℃ | Working humidity | 0-95%RH |
| Storage temperature | -20 to 50℃ | Preheating time | 10S |
| Battery capacity | 2400mA | Working air pressure | 86kpa-106kpa |
| Working voltage | DC5V±1%/DC24±1% | Baud rate | 9600 |
| Detection method | Pump suction and diffusion integrated type | Warranty period | One year |
| External dimensions | 42.5×78.2×41.6mm (excluding gas filter and back clip) | Service life | One to three years |
| Screen display | 2.0-inch color LCD, resolution 320*240 | Local storage | It can store 120,000 historical data points and 30,000 alarm records |
| Receiving equipment | In 4G/LORA/ Bluetooth modes, it can be connected to users' computers, control alarms, etc. for reception | ||
| Alarm method | This machine is equipped with alarm, LORA and 4G transmission alarm | ||
| Alarm Settings | The standard configuration is two-level alarm, and three-level alarm is optional. The alarm modes can be set: conventional high and low alarm, and range control alarm | ||
| Data interface | Type-C (interface), combined with the charging interface, charging interface: 5VDC, combined with the data interface | ||
| Optional accessories | In high-temperature environments, a high-temperature sampling handle can be optionally equipped | ||
Product Recommendation
handheld Hydrogen Fluoride gas detector HF-HNAG920handheld Hydrogen Fluoride gas detector HF
Model: HNAG920 Sampling Method: Pumping Suction Detection Principle: Electrochemistry Gas: Hydrogen Fluoride (HF) Range: 0-10ppm,0-50ppm,0-100ppm Resolution: 0.01ppm,0.1ppm. Accuracy: ≤±2% F.S.
Portable Ethanol analyzer C2H6O ppm-HNAG920Portable Ethanol analyzer C2H6O ppm
Model: HNAG920 Sampling Method: Pumping Suction and Diffusion Detection Principle: Electrochemistry Gas: Ethanol(C2H6O) Range: 0-10ppm,0-50ppm,0-100ppm,Custom Resolution: 0.01ppm,0.1ppm,1ppm. Accuracy: ≤±2% F.S.
Pump suction portable Ethylene gas detector C2H4 0-100ppm-HNAG920Pump suction portable Ethylene gas detector C2H4 0-100ppm
Model: HNAG920 Sampling Method: Pumping Suction and Diffusion Detection Principle: Electrochemistry Gas: Ethylene (C2H4) Range: 0-10ppm,0-50ppm,0-100ppm,0-200ppm. Resolution: 0.01ppm,0.1ppm. Accuracy: ≤±2% F.S.
Portable SF6 gas analyzer Sulfur hexafluoride detector-HNAG920Portable SF6 gas analyzer Sulfur hexafluoride detector
Model: HNAG920 Sampling Method: Pumping Suction and Diffusion Detection Principle: Infrared NDIR Gas: Sulfur hexafluoride (SF6). Range: 0-1000ppm,0-3000PPM,0-5000PPM. Resolution: 1PPM. Accuracy: ≤±2% F.S.
Handheld Acetylene gas detector 0-100%LEL-HNAG920Handheld Acetylene gas detector 0-100%LEL
Model: HNAG920 Sampling Method: Pumping Suction and Diffusion Detection Principle: Infrared NDIR Gas: Acetylene (C2H2). Range: 0-100%LEL Resolution: 0.1LEL. Accuracy: ≤±2% F.S.
Portable Methyl Bromide Gas Detector CH3Br-HNAG920Portable Methyl Bromide Gas Detector CH3Br
Model: HNAG920 Sampling Method: Pumping Suction and Diffusion Detection Principle: PID Gas: Methyl Bromide (CH3Br). Range: 0 to 50/100/200/500/1000/2000/3000ppm Resolution: 0.01ppm;0.1ppm;1ppm. Accuracy: ≤±2% F.S.
Punp suction Portable ozone sensor detector-HNAG920Punp suction Portable ozone sensor detector
Model: HNAG920 Sampling Method: Pumping Suction and Diffusion Detection Principle:Electrochemistry Gas: ozone (O3) Range: 0-50PPM,0-100PPM. Resolution: 0.01PPM,0.1PPM. Accuracy: ≤±2% F.S.
Portable pump-assisted diffusion-type hydrogen gas detector-HNAG920-H2Portable pump-assisted diffusion-type hydrogen gas detector
Explore the Portable pump - assisted diffusion - type hydrogen gas detector. This detector combines pump - assisted and diffusion - type features, offering high - precision hydrogen detection.
Portable Methane Gas Detector Handheld Methane Monitor-HNAG900Portable Methane Gas Detector Handheld Methane Monitor
Skyeaglee HANG-900-CH4-C portable methane gas detector with catalytic detection 0-100%LEL, IP65, Ex ib II CT4 Gb. Expandable to 6 gases, 5400mAh, USB data export. Professional methane gas monitor for oil, coal, petrochemical.
Handheld nitrogen gas detector 0-100%vol-HNAG920Handheld nitrogen gas detector 0-100%vol
Model: HNAG920 Sampling Method: Pumping Suction Detection Principle: Electrochemistry Gas: N2 Range: 0-100%vol Resolution: 1%vol. Accuracy: ≤±2% F.S.
Trending pump suction diffusion portable combustible gas detector co co2 no no2 toxic gas detector Wireless transmission for Underground pipeline Sewage well Cabin-Trending pump suction diffusion portable combustible gas detector co co2 no no2 toxic gas detector Wireless transmission for Underground pipeline Sewage well Cabin
Category: Products Portable gas detector Portable gas detector Key words: Products Model: HNAG920 Measurement object: CO2/Ex/CH4/CO/H2S/O2/N2/NH3/CL2/H2/He/Ar/CH2O/O3/NO/NO2/SO2/C2H4O/PH3/COCL2/HBR/HCL/HCN/CLO2/SIH4/CH3BR/SO2F2/F2/HF/C2H2/CS2/SF6/C2H...
Combustible Online Gas Detector LEL Alarm Monitor System-SK/MIC-600Combustible Online Gas Detector LEL Alarm Monitor System
Discover the Combustible Online Gas Detector LEL Alarm Monitor System. This advanced system is designed for real - time detection of combustible gases. It offers high - precision monitoring, rapid alarm response to ensure safety in environments with potential gas hazards. Ideal for industrial settings, it helps prevent gas - related accidents and provides reliable data for better management.
Intrinsically Safe Carbon Monoxide Detector with Explosion Proof-HNAG1000Intrinsically Safe Carbon Monoxide Detector with Explosion Proof
Discover our Intrinsically Safe Carbon Monoxide Detector with Explosion Proof. Ideal for hazardous environments, it offers reliable CO detection. Built - in safety features prevent explosions, ensuring maximum protection. High - quality sensors provide accurate readings. Suitable for industrial sites, mines, and more. Keep your workplace safe with this top - notch detector.

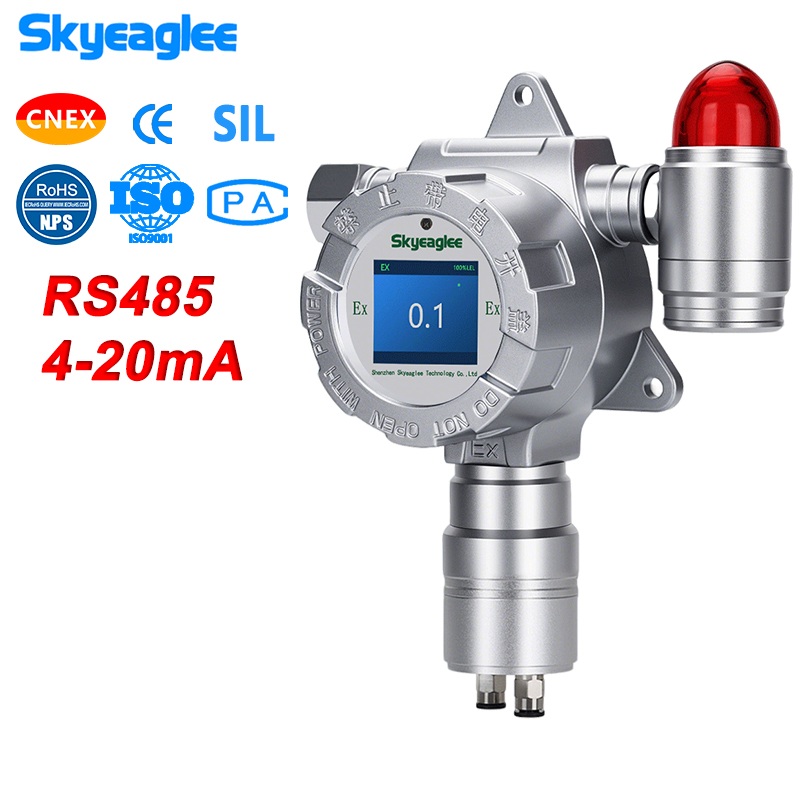

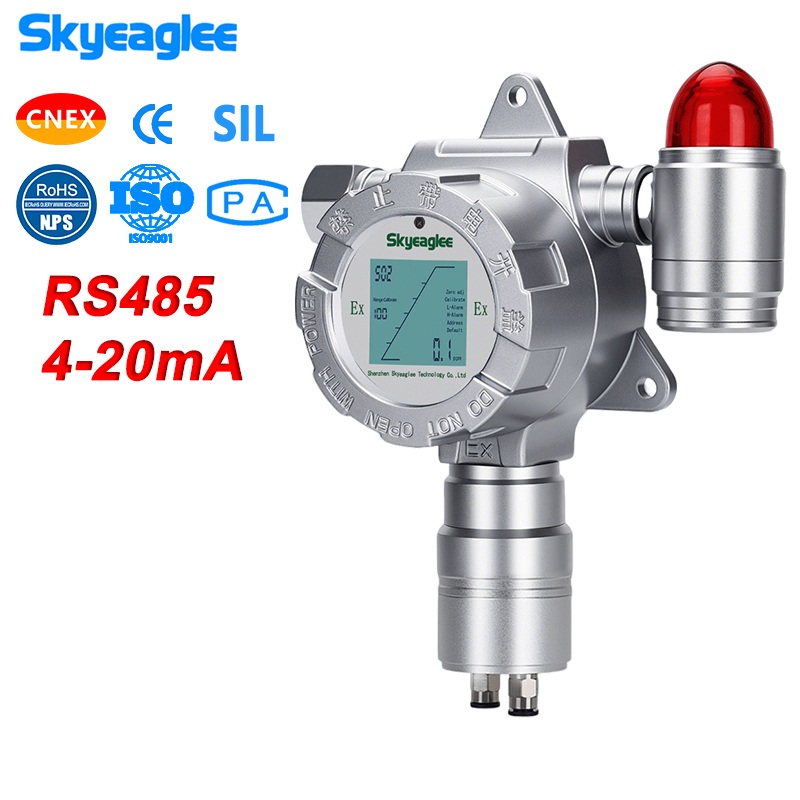

Fixed carbon monoxide detector RS485 4-20mA-HNAG1000Fixed carbon monoxide detector RS485 4-20mA
