pump suction toxic gas online monitoring system H2S NH3 CO NO VOC gas detection alarm HCN CLO2 SIH4 CH3BR for industry
Category: Products Flue gas pretreatment system Simple Pretreatment Online Monitoring System
Key words: Products
Model: SK/MIC-7500
Measurement object: CO2/Ex/CH4/CO/H2S/O2/N2/NH3/CL2/H2/He/Ar/CH2O/O3/NO/NO2/SO2/C2H4O/PH3/COCL2/HBR/HCL/HCN/CLO2/SIH4/CH3BR/SO2F2/F2/HF/C2H2/CS2/SF6/C2H4/C2H6O/H2O2/VOC/PM/RH
Category: Products Flue gas pretreatment system Simple Pretreatment Online Monitoring System
Key words: Products
Model: SK/MIC-7500
Measurement object: CO2/Ex/CH4/CO/H2S/O2/N2/NH3/CL2/H2/He/Ar/CH2O/O3/NO/NO2/SO2/C2H4O/PH3/COCL2/HBR/HCL/HCN/CLO2/SIH4/CH3BR/SO2F2/F2/HF/C2H2/CS2/SF6/C2H4/C2H6O/H2O2/VOC/PM/RH
Product Description
Preprocessing Online Monitoring System SK/MIC-7500 is suitable for real-time and accurate detection of gas concentration and leakage in various environments. It adopts imported catalytic combustion, infrared sensors, and microcontroller technology. It features fast response speed, high measurement accuracy, excellent stability, and repeatability. The explosion-proof wiring method is suitable for various hazardous locations and is compatible with various control alarms, PLC, DCS, and other control systems. It can simultaneously achieve on-site alarm warning, 4-20mA standard signal output, and relay switch output.
|
Output signal |
①4-20mA signal: Standard 12-bit precision 4-20mA output chip, transmission distance 1Km ②RS485 signal: It adopts the standard MODBUS RTU protocol, with a transmission distance of 1Km ③ Voltage signal: 0.4-2V,0-5V, 0-10V output, optional (choose one of voltage output and current output) ④ Switch signal: Standard configuration includes 1 set of passive contact relays with a capacity of 220VAC3AV/24VDC3A |
GPRS、4G、WIFI、LORA、ZigBee and other wireless signals |
|
|
Measure gas |
custom |
Detection principle |
custom |
|
Range selection |
custom |
Resolution |
custom |
|
Sampling accuracy |
±3%F.S |
Response time |
T90<10S |
|
Working temperature |
-20 ～ 50℃ |
Working humidity |
0-95%RH |
|
Storage temperature |
-20 ～ 50℃ |
Preheating time |
10S |
|
Sampling temperature |
At 120℃ (below), it depends on the distance |
Warranty period |
1 year |
|
Sampling distance |
80 meters. It is recommended to be within 20 meters |
Power supply |
220V |
|
Receiving equipment |
User computers, control alarms, PLCS, DCS, DDC, etc |
||
|
Alarm method |
On-site sound and light alarm, external alarm device, remote controller alarm, computer data acquisition software alarm, etc |
||
|
Alarm Settings |
The standard configuration is two-level alarm, and three-level alarm is optional. The alarm modes can be set: conventional high and low alarm, and range control alarm |
||
Function and role
The sampled gas first passes through a filter to remove dust and impurities, and then is pumped by a sampling pump to the flowmeter to control the flow rate of the incoming gas (the flow rate of the flowmeter is generally controlled at 0.3 to 0.5L/Min)." Finally, when it comes to the instrument inspection (the working environment of the instrument needs to be used in a working condition of -20° to 60°), the water produced by the filter needs to be manually drained.
Consumables
The service life of the sensor is approximately 1 to 3 years and it is a consumable. The specific usage time depends on the detection environment.
2. If the color of the chip inside the filter changes, it needs to be replaced. The approximate service life is about 3 months, depending on the testing environment.
The sampling air pump has a service life of approximately one year.
Application scenarios
Petroleum and petrochemical, chemical plants, smelters, steel mills, coal mines, thermal power plants, medical research, pharmaceutical production workshops, tobacco companies, environmental monitoring, school research, building construction, fire alarm, sewage treatment, industrial gas process control, boiler rooms, garbage treatment plants, tunnel construction, oil pipelines, gas stations, underground gas pipeline maintenance, indoor air quality testing, hazardous materials Site safety protection, aerospace, military equipment monitoring, etc.
Equipment flowchart

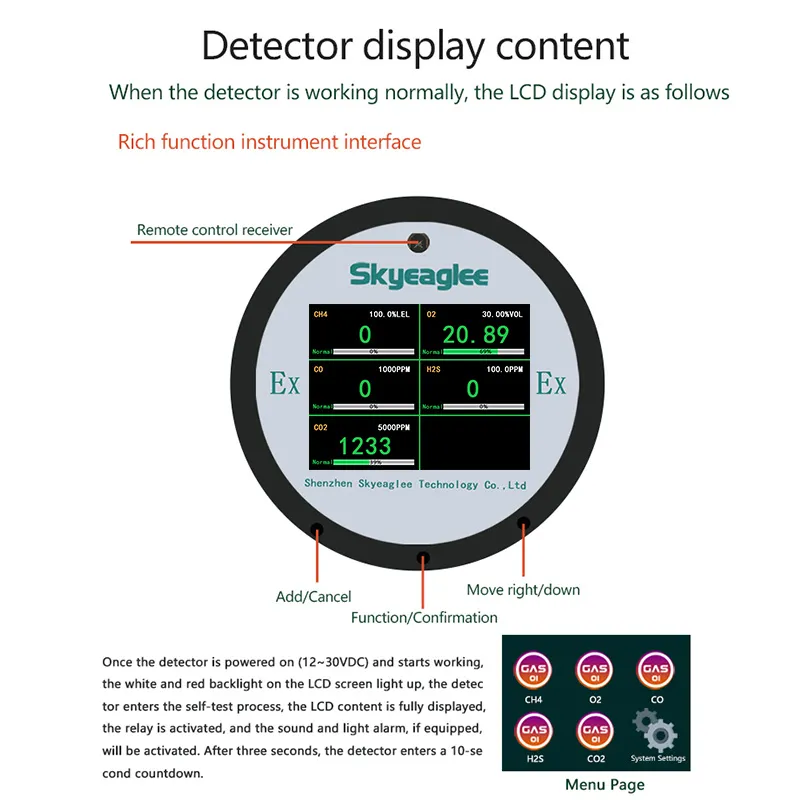

Introduction to the interface display of the simple online monitoring system
The instrument has a total of three buttons, namely "Add/Cancel", "Function/Confirm", and "Move Right/Move Down" (hereinafter referred to as "Add" (" Cancel "), "Function" (" Confirm "), and "Move Right" (" Move Left ")). The positions of the three keys are as follows. Just press the "Function" button.
Preprocessing Online Monitoring System SK/MIC-7500 is suitable for real-time and accurate detection of gas concentration and leakage in various environments. It adopts imported catalytic combustion, infrared sensors, and microcontroller technology. It features fast response speed, high measurement accuracy, excellent stability, and repeatability. The explosion-proof wiring method is suitable for various hazardous locations and is compatible with various control alarms, PLC, DCS, and other control systems. It can simultaneously achieve on-site alarm warning, 4-20mA standard signal output, and relay switch output.
|
Output signal |
①4-20mA signal: Standard 12-bit precision 4-20mA output chip, transmission distance 1Km ②RS485 signal: It adopts the standard MODBUS RTU protocol, with a transmission distance of 1Km ③ Voltage signal: 0.4-2V,0-5V, 0-10V output, optional (choose one of voltage output and current output) ④ Switch signal: Standard configuration includes 1 set of passive contact relays with a capacity of 220VAC3AV/24VDC3A |
GPRS、4G、WIFI、LORA、ZigBee and other wireless signals |
|
|
Measure gas |
custom |
Detection principle |
custom |
|
Range selection |
custom |
Resolution |
custom |
|
Sampling accuracy |
±3%F.S |
Response time |
T90<10S |
|
Working temperature |
-20 ～ 50℃ |
Working humidity |
0-95%RH |
|
Storage temperature |
-20 ～ 50℃ |
Preheating time |
10S |
|
Sampling temperature |
At 120℃ (below), it depends on the distance |
Warranty period |
1 year |
|
Sampling distance |
80 meters. It is recommended to be within 20 meters |
Power supply |
220V |
|
Receiving equipment |
User computers, control alarms, PLCS, DCS, DDC, etc |
||
|
Alarm method |
On-site sound and light alarm, external alarm device, remote controller alarm, computer data acquisition software alarm, etc |
||
|
Alarm Settings |
The standard configuration is two-level alarm, and three-level alarm is optional. The alarm modes can be set: conventional high and low alarm, and range control alarm |
||
Function and role
The sampled gas first passes through a filter to remove dust and impurities, and then is pumped by a sampling pump to the flowmeter to control the flow rate of the incoming gas (the flow rate of the flowmeter is generally controlled at 0.3 to 0.5L/Min)." Finally, when it comes to the instrument inspection (the working environment of the instrument needs to be used in a working condition of -20° to 60°), the water produced by the filter needs to be manually drained.
Consumables
The service life of the sensor is approximately 1 to 3 years and it is a consumable. The specific usage time depends on the detection environment.
2. If the color of the chip inside the filter changes, it needs to be replaced. The approximate service life is about 3 months, depending on the testing environment.
The sampling air pump has a service life of approximately one year.
Application scenarios
Petroleum and petrochemical, chemical plants, smelters, steel mills, coal mines, thermal power plants, medical research, pharmaceutical production workshops, tobacco companies, environmental monitoring, school research, building construction, fire alarm, sewage treatment, industrial gas process control, boiler rooms, garbage treatment plants, tunnel construction, oil pipelines, gas stations, underground gas pipeline maintenance, indoor air quality testing, hazardous materials Site safety protection, aerospace, military equipment monitoring, etc.
Equipment flowchart
Introduction to the interface display of the simple online monitoring system
The instrument has a total of three buttons, namely "Add/Cancel", "Function/Confirm", and "Move Right/Move Down" (hereinafter referred to as "Add" (" Cancel "), "Function" (" Confirm "), and "Move Right" (" Move Left ")). The positions of the three keys are as follows. Just press the "Function" button.
