Portable PH3 Phosphine Single Gas Detector HNAG920-PH3 Industrial Gas Monitor
Model:HNAG920-PH3
Detection Target:Phosphine (PH₃) toxic gas
Detection Principle:High-precision electrochemical sensor principle (specialized for phosphine gas detection)
Detection Range:0-5(20)ppm, 0-20(100)ppm, 0-2000(4000)ppm, 0-4000(6000)ppm (4 optional customizable ranges)
Product Description

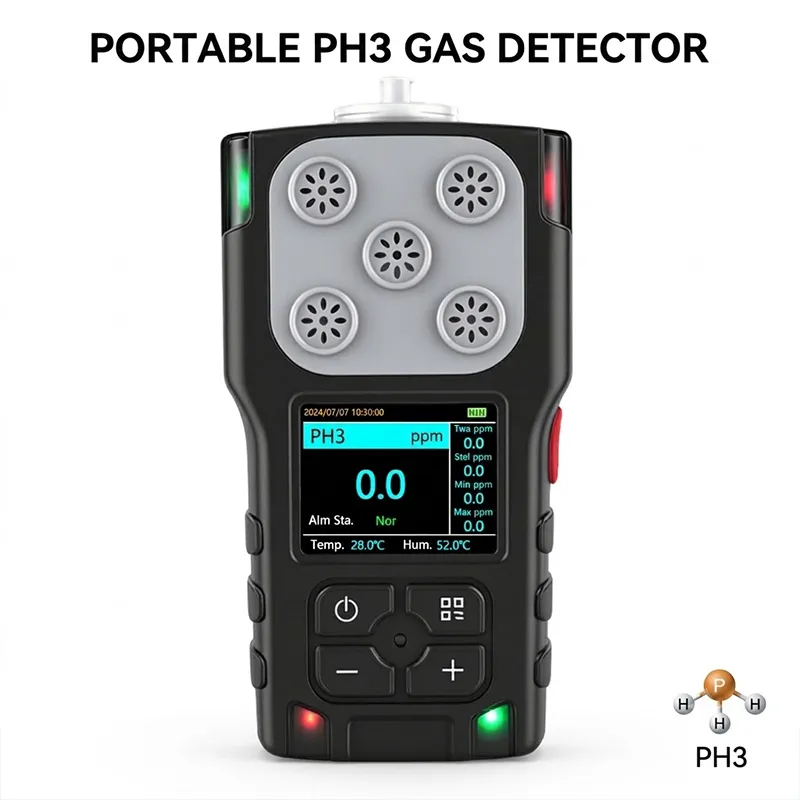

HNAG920-PH3 Portable PH3 Phosphine Single Gas Detector Product Overview
Our HNAG920-PH3 is a professional handheld single gas detector dedicated to phosphine (PH3) concentration monitoring, with multiple customizable detection ranges to fit industrial grain fumigation, chemical manufacturing, pesticide workshop and other high-risk toxic gas scenarios.
Hardware Structure & Portable Design of PH3 Gas Detector
Front Panel Core Functional Parts
The front is equipped with a 2.0" 320*240 high-resolution color LCD, 4 groups of LED alarm lights (green for normal operation, red for alarm status), independent operation buttons, built-in buzzer, and a dedicated diffusion sampling sensor zone for stable PH3 gas collection.<
Rear Protection & Carrying Accessories
The back side is fitted with a sturdy back clip for waist-mounted on-site operation, an official instrument parameter label, and a water trap filter at the pump inlet to block moisture and extend the service life of the sensor. The whole housing adopts PC + TPU composite material, with excellent shockproof, dustproof and anti-drop performance.
Core Competitive Functions of Industrial PH3 Detector
180° Auto Screen Rotation for Complex Working Environments
This device supports automatic 180° screen flipping, you can read PH3 concentration data clearly even when holding the detector upside down in narrow confined spaces or special operation positions.
Multi-Mode Wireless Data Transmission & Offline Report Printing
It is compatible with 4G, WiFi, Bluetooth and LORA 4 mainstream transmission modes: you can check real-time and historical PH3 data remotely via mobile phone APP, and print detection reports on-site through a Bluetooth portable printer for compliance archiving.

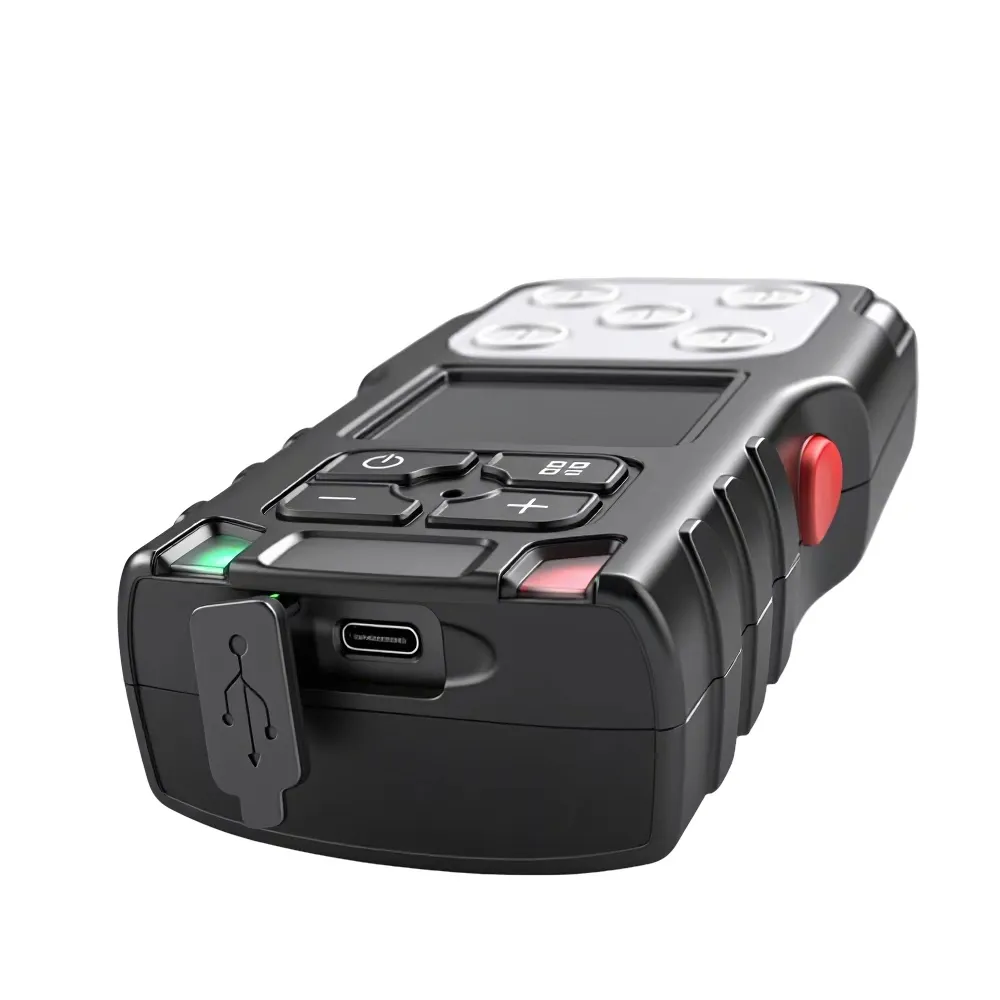

Durable Type-C USB Rechargeable Design
The concealed Type-C USB charging port brings convenient daily recharging, the large-capacity built-in battery can support long-time continuous monitoring for multiple working shifts outdoors.
Customizable PH3 Measuring Ranges for Different Application Scenarios
We provide 4 optional detection ranges to match diversified PH3 concentration test demands: 1. 0-5(20)ppm: For low-concentration precision residual monitoring in grain fumigation warehouses 2. 0-20(100)ppm: For conventional closed fumigation site routine detection 3. 0-2000(4000)ppm: For medium-concentration industrial workshop emission monitoring 4. 0-4000(6000)ppm: For high-concentration extreme working condition emergency detection
Frequently Asked Questions (FAQ) for PH3 Phosphine Gas Detector
Q1: What detection sensor is built into this PH3 gas detector?
A: It adopts industrial-grade phosphine-specific electrochemical sensor, featuring high test accuracy, low drift and long service life for long-term field use.
Q2: Can this detector be used for grain storage phosphine fumigation monitoring?
A: Absolutely. The 0-5(20)ppm and 0-20(100)ppm low ranges are specially calibrated for grain depot fumigation residual PH3 testing, which is the most widely used scenario for PH3 detectors.
Q3: What ways can I export the recorded PH3 detection data?
A: It supports 4G, WiFi, Bluetooth, LORA 4 wireless modes: remote mobile APP data checking, local Bluetooth report printing are both available.
Q4: Is the device suitable for harsh industrial working environments?
A: Yes, the PC+TPU composite housing has excellent shockproof, anti-drop and dustproof performance, the water trap filter can prevent humid air from damaging the internal sensor.
Q5: Can I view readings normally when holding the detector upside down?
A: Yes, the auto 180° screen rotation function will adjust the display direction automatically, you can get legible readings no matter the holding angle.
