industrial gas detector o2 pump suction Oxygen analyzer
Detection gas:O2/Oxygen
Range:0-30%VOL (0-25%VOL) / 0-100%VOL
Detection Principle:Electrochemistry
Resolution:0.1%VOL/0.01%VOL
Detection Accuracy:±2%F.S
Model:HNAG920
Product Description
Product parameters
|
Measure gas |
O2 |
Detection principle |
Electrochemistry |
|
Gas range |
0-30%vol/0-100%vol |
Resolution |
0.01%vol/0.1%vol |
|
Sampling accuracy |
±1%F.S |
Response time |
T90<10S |
|
Working temperature |
-20 to 50℃ |
Working humidity |
0-95%RH |
|
Screen size |
2.0-inch LCD, 320*240 |
Charging interface |
Type-C |
|
Battery capacity |
2400mA |
Working air pressure |
86kpa-106kpa |
|
Working voltage |
DC5V±1%/DC24±1% |
Output method |
USB |
|
Sampling method |
Pump suction and diffusion |
Warranty period |
One year |
|
External dimensions |
42.5×78.2×41.6mm |
Sensor service life |
1 to 3 years |
|
Protection grade |
IP65 |
Explosion-proof grade |
Ex ib ll CT4 Gb |
|
Data storage |
120,000 entries |
Alarm record |
30,000 entries |
|
Material |
PC+TPU |
Overall weight of the machine |
About 380g |
|
Alarm Settings |
The standard configuration is two-level alarm, and the alarm mode can be set: high and low alarm |
||
|
Communication method |
Transmission modes such as 4G/wifi/ Bluetooth /Lora wireless |
||
|
Calibration method |
Primary calibration, secondary calibration, and tertiary calibration |
||
|
Optional accessories |
High-temperature sampling handle (Customized sampling handles of different temperatures according to the detection temperature) |
||
Product features of Portable pump suction diffusion type combustible gas concentration detector
● Equipped with a 32-bit microprocessor and high-speed, high-precision processing circuitry for fast and accurate measurements
● Features an external USB port for data export and deletion via USB cable connection to a computer
● Supports up to 5 different sensors for flexible detection
● Built-in buttons for easy parameter viewing and configuration
● Allows unit switching (e.g., ppm ↔ mg/m³) through coefficient adjustment
● Customizable historical data storage intervals
● Supports Chinese/English language display switching
● Fall alarm / one-touch emergency alarm function
● 180° auto-rotating screen
● Temperature & humidity compensation
● PC+TPU (rubber overmolding process) for impact resistance

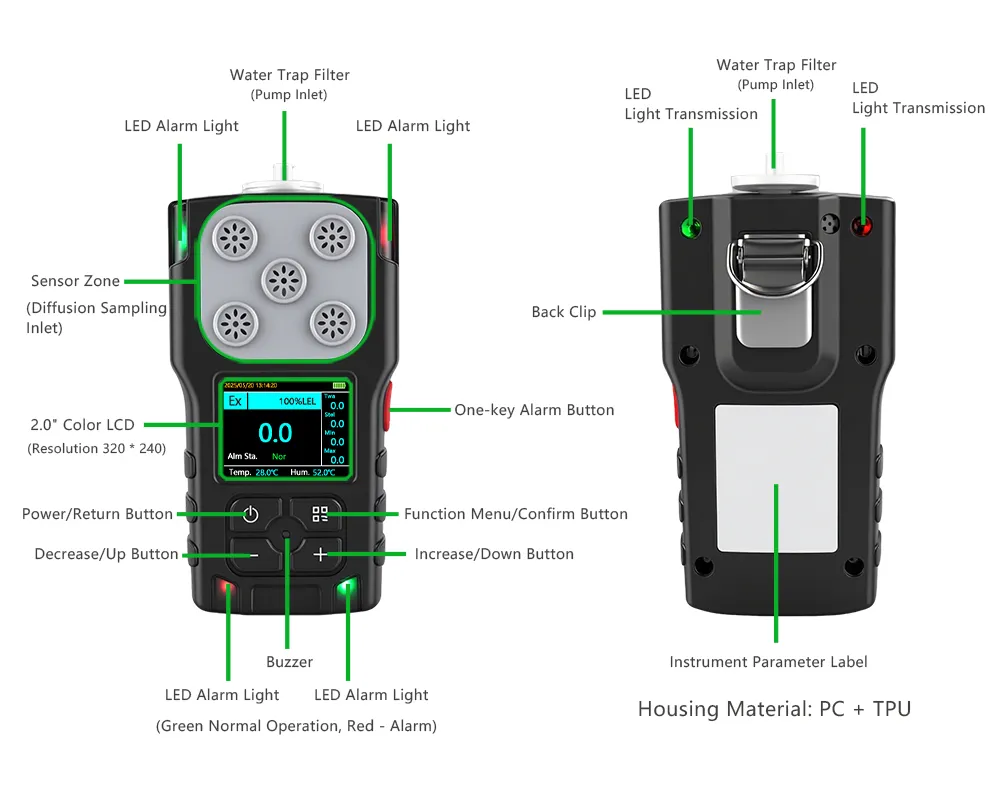

Instrument illustration

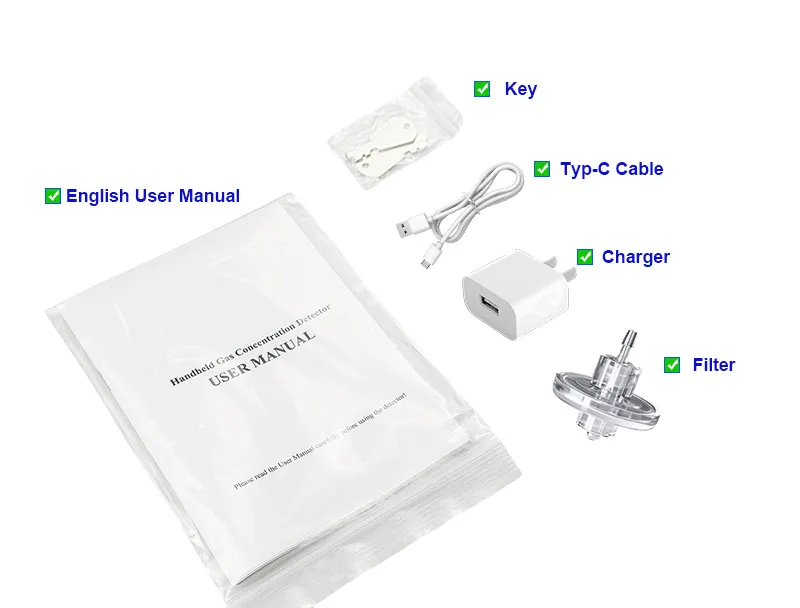

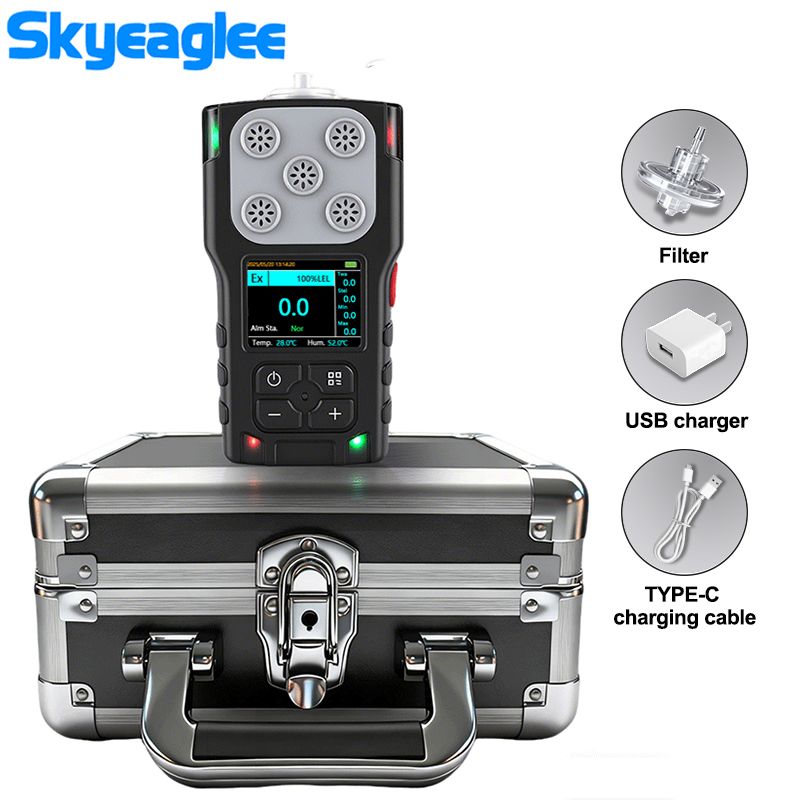

Accessories
Precautions for Use
● When charging the detector, please do so in a safe location and use a compliant charger with 5V/2A or higher.
● For first-time use, fully charge the battery before operation.
● During daily use, avoid exposing the detector to gas concentrations beyond its measurement range to prevent irreversible damage.
● Do not use the detector in harsh environments with extreme temperatures, high pressure, or excessive humidity. If ambient humidity is high,
perform dehumidification filtration before detection.
● If sensor failure occurs, contact the manufacturer’s after-sales service.
● Under normal usage, the sensor's effective lifespan is 24–36 months. During this period, perform calibration checks every 6 months or 1 year
(depending on the working environment) to ensure accurate gas monitoring. Sensors exceeding their lifespan or showing faults must be replaced.
Product Recommendation
Portable CS2 Carbon Disulfide Single Gas Detector 0-10000ppm Industrial Gas Monitor Alarm-Portable CS2 Carbon Disulfide Single Gas Detector 0-10000ppm Industrial Gas Monitor Alarm
This HNAG920-CS2 portable carbon disulfide gas detector supports multiple CS2 measuring ranges from 0-20ppm to 0-10000ppm. It adopts advanced sensing principle, features auto screen rotation, dual pump/diffusion sampling, 120,000 historical data logs, multi wireless transmission, Type-C 2-in-1 charging & data transfer, visual & audible multi-alarm, rugged PC+TPU housing for industrial hazardous scenarios.
Intrinsically Safe Carbon Monoxide Detector with Explosion Proof-HNAG1000Intrinsically Safe Carbon Monoxide Detector with Explosion Proof
Discover our Intrinsically Safe Carbon Monoxide Detector with Explosion Proof. Ideal for hazardous environments, it offers reliable CO detection. Built - in safety features prevent explosions, ensuring maximum protection. High - quality sensors provide accurate readings. Suitable for industrial sites, mines, and more. Keep your workplace safe with this top - notch detector.
Portable C2H2 Acetylene Single Gas Detector, Multi Range Industrial Acetylene Gas Monitor-Portable C2H2 Acetylene Single Gas Detector, Multi Range Industrial Acetylene Gas Monitor
HNAG920-C2H2 portable C2H2 acetylene single gas detector with multiple customizable ppm & LEL measuring ranges. Supports pump/diffusion dual sampling, auto rotating screen, 120,000 data logs, Type-C data export, 4G/WiFi/Bluetooth/LORA wireless transmission, CE RoHS SIL2 Ex certification for welding, chemical acetylene leak safety monitoring.
Fixed carbon monoxide detector RS485 4-20mA-HNAG1000Fixed carbon monoxide detector RS485 4-20mA
Explore our fixed carbon monoxide detector with RS485 and 4 - 20mA interfaces. Ideal for continuous CO monitoring in industrial and commercial settings. It offers high - precision detection, reliable performance, and seamless integration with existing systems. Ensure safety and compliance with this advanced detector.
Portable HF Hydrogen Fluoride Single Gas Detector, 0-10/50/100ppm Industrial HF Gas Monitor-Portable HF Hydrogen Fluoride Single Gas Detector, 0-10/50/100ppm Industrial HF Gas Monitor
HNAG920-HF portable hydrogen fluoride HF single gas detector with 0-10/50/100ppm customizable ranges. Equipped with pump+diffusion dual sampling, auto 180° rotating screen, 120,000 data logs, Type-C data export, multi wireless transmission, CE/RoHS/SIL2/Ex explosion-proof certification for chemical plant HF leakage safety monitoring.
Portable Fluorine F2 Single Gas Detector, 0-5/1000/10000ppm Range Industrial Gas Monitor-Portable Fluorine F2 Single Gas Detector, 0-5/1000/10000ppm Range Industrial Gas Monitor
This portable F2 fluorine single gas detector (Model HNAG920-F2) supports 0-5 (10) ppm, 0-1000ppm, 0-10000ppm ranges. It features pump/diffusion dual sampling, auto 180° screen rotation, 120,000 historical data logs, Type-C 2-in-1 charging & data export, multi-alarm modes, and 4G/WiFi/Bluetooth/LORA connectivity for industrial hazardous scenarios.
Portable Methyl Bromide CH3Br Single Gas Detector 0-10000ppm Industrial Gas Monitor Alarm-Portable Methyl Bromide CH3Br Single Gas Detector 0-10000ppm Industrial Gas Monitor Alarm
This HNAG920-CH3Br portable methyl bromide single gas detector supports 6 optional measuring ranges from 0-50ppm to 0-10000ppm. It adopts high-precision detection principle, features dual pump/diffusion sampling, 180° auto-rotating color screen, multi-connectivity (4G/WiFi/Bluetooth/LORA), 120,000 historical data logs, visual audio-light alarm, IP rugged housing, suitable for fumigation, chemical plant, warehouse industrial gas monitoring scenarios.
HNAG920 Portable NH3 Ammonia Single Gas Detector with Custom Ranges-HNAG920 Portable NH3 Ammonia Single Gas Detector with Custom Ranges
This HNAG920-NH3 handheld single ammonia gas detector provides 12 optional NH3 measuring ranges from 0-10ppm up to 0-100%Vol. It supports auto 180° screen rotation, 4G/WiFi/Bluetooth/LORA wireless transmission, Type-C rechargeable design, 4-side LED alarm lights, durable PC+TPU housing, and allows mobile data viewing & Bluetooth printing for chemical plants, livestock farms and refrigeration workshop hazardous gas monitoring.
Portable Methane Gas Detector Handheld Methane Monitor-HNAG900Portable Methane Gas Detector Handheld Methane Monitor
Skyeaglee HANG-900-CH4-C portable methane gas detector with catalytic detection 0-100%LEL, IP65, Ex ib II CT4 Gb. Expandable to 6 gases, 5400mAh, USB data export. Professional methane gas monitor for oil, coal, petrochemical.
Portable pump-assisted diffusion-type hydrogen gas detector-HNAG920-H2Portable pump-assisted diffusion-type hydrogen gas detector
Explore the Portable pump - assisted diffusion - type hydrogen gas detector. This detector combines pump - assisted and diffusion - type features, offering high - precision hydrogen detection.
Industrial Fixed Dust Concentration Detector PM Sensor-HNAG1000-PMIndustrial Fixed Dust Concentration Detector PM Sensor
The HNAG1000-PM is an industrial fixed dust detector featuring a high-precision laser scattering sensor. With IP66 protection, explosion-proof casing, and RS485/4-20mA outputs, it ensures real-time, accurate PM monitoring for harsh environments.
Continuous PM Monitor & Explosion-Proof Dust Sensor-HNAG1000-PMContinuous PM Monitor & Explosion-Proof Dust Sensor
Engineered for hazardous industrial sites, the HNAG1000-PM-M provides continuous online particulate matter monitoring. With an IP66 rugged enclosure, ExdIICT6 certification, and seamless PLC integration via RS485/4-20mA, it guarantees absolute safety.
Multi-gas Integrated Pretreatment Online Monitoring System Toxic Gas Analyzer RTO Leak-proof Detection Alarm Instrument-SK/MIC-7500Multi-gas Integrated Pretreatment Online Monitoring System Toxic Gas Analyzer RTO Leak-proof Detection Alarm Instrument
Category: Products Flue gas pretreatment system Simple Pretreatment Online Monitoring System Key words: Products Model: SK/MIC-7500 Measurement object: CO2/Ex/CH4/CO/H2S/O2/N2/NH3/CL2/H2/He/Ar/CH2O/O3/NO/NO2/SO2/C2H4O/PH3/COCL2/HBR/HCL/HCN/CLO2/SIH4/...

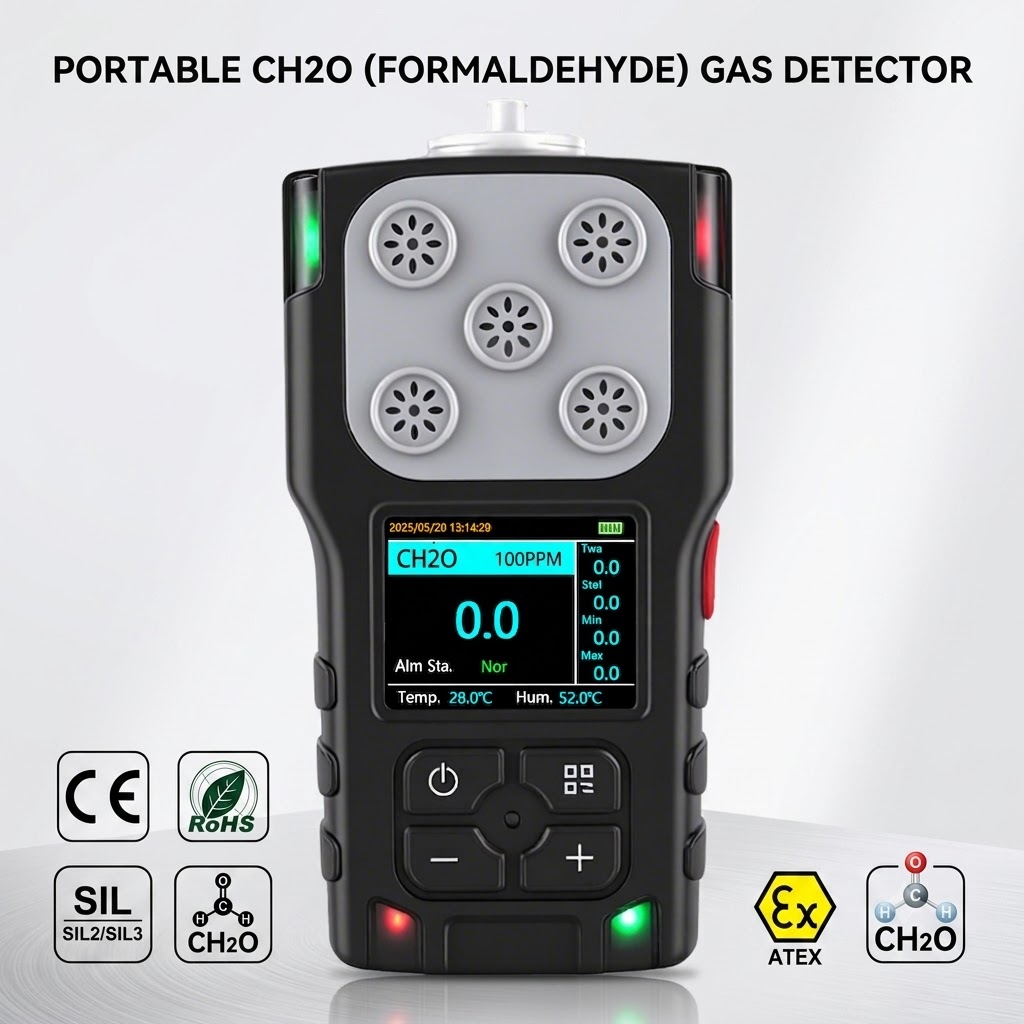

Portable CH2O Formaldehyde Single Gas Detector High Precision Air Quality Monitor Alarm Detector-Portable CH2O Formaldehyde Single Gas Detector High Precision Air Quality Monitor Alarm Detector
