HNAG920 Portable NH3 Ammonia Single Gas Detector with Custom Ranges
Model:HNAG920-NH3
Detection:Single NH3 (Ammonia) Gas Concentration Detection
Detection Principle:High-precision Electrochemical Gas Sensing Principle
Detection Range:0-10ppm,0-20(50)ppm,0-100ppm,0-200(500)ppm,0-500(1000)ppm,0-1000(2000)ppm,0-2000(5000)ppm,0-5000(10000)ppm,0-10000(15000)ppm,0-30%vol,0-50%vol,0-100%Vol
Product Description
HNAG920-NH3 Portable Ammonia (NH3) Single Gas Detector Full Introduction

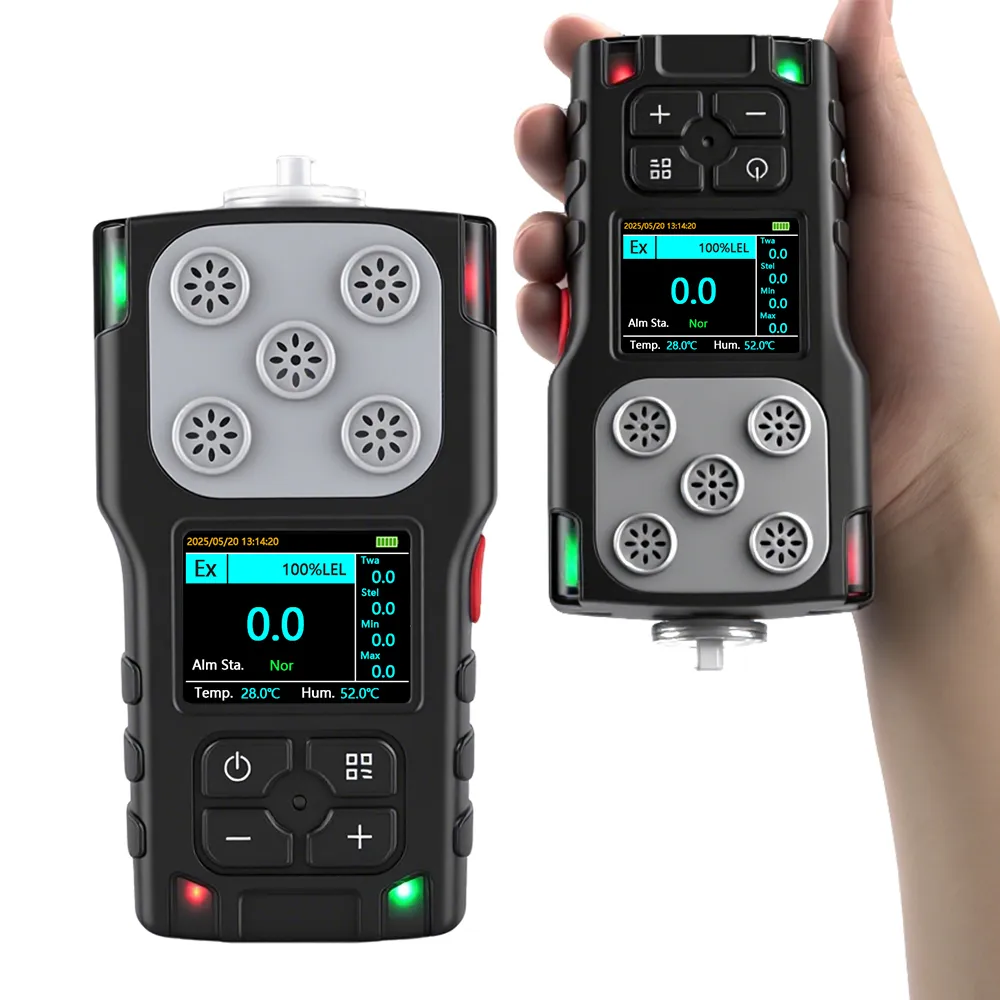

Ergonomic Appearance & Protective Configuration of NH3 Gas Detector
Dual-Side Layout & Matching Portable Storage Kit
This handheld NH3 gas monitor adopts human-centered grip and split button layout, with 4-corner distributed LED alarm lights. It can be matched with customized shock-resistant aluminum carry case for outdoor, factory and field mobile detection scenarios.
Wear-Resistant PC+TPU Housing & Internal Structural Design
The detector shell is made of anti-drop PC+TPU composite material, equipped with back clip for waist mounting, independent water trap filter for pump sampling, and dedicated one-key emergency alarm button for unexpected gas hazards.
User-Friendly Display Design for Complex NH3 Monitoring Scenarios
180° Automatic Screen Rotation Function
The 2.0-inch 320*240 HD color LCD can auto rotate 180 degrees, ensuring clear data reading when the device is inverted in narrow or high-position working areas, and it synchronously shows real-time ambient temperature & humidity data.
Customizable NH3 Detection Range & Core Detection Performance
Full-Cover Optional Measuring Ranges for Diversified Scenarios
We provide 12 graded NH3 detection options, covering trace ppm-level low concentration to 100%Vol full volume concentration, fully matching livestock breeding, chemical manufacturing, cold storage logistics and other scenes with different ammonia concentration levels.
Stable Electrochemical Sensing Technology
It adopts industrial-grade electrochemical NH3 sensor, supporting real-time TWA/STEL/Min/Max detection data recording, to guarantee long-term stable and accurate ammonia concentration monitoring.
Multi-Channel Wireless Data Management of NH3 Detector
4G/WiFi/Bluetooth/LORA 4-In-One Connection Solution
This ammonia gas tester is compatible with 4 mainstream wireless protocols, realizing remote cloud data upload, mobile APP real-time data viewing, and offline Bluetooth thermal printing of historical records to achieve full-process data traceability.
Low-Maintenance Charging & Daily Use Design

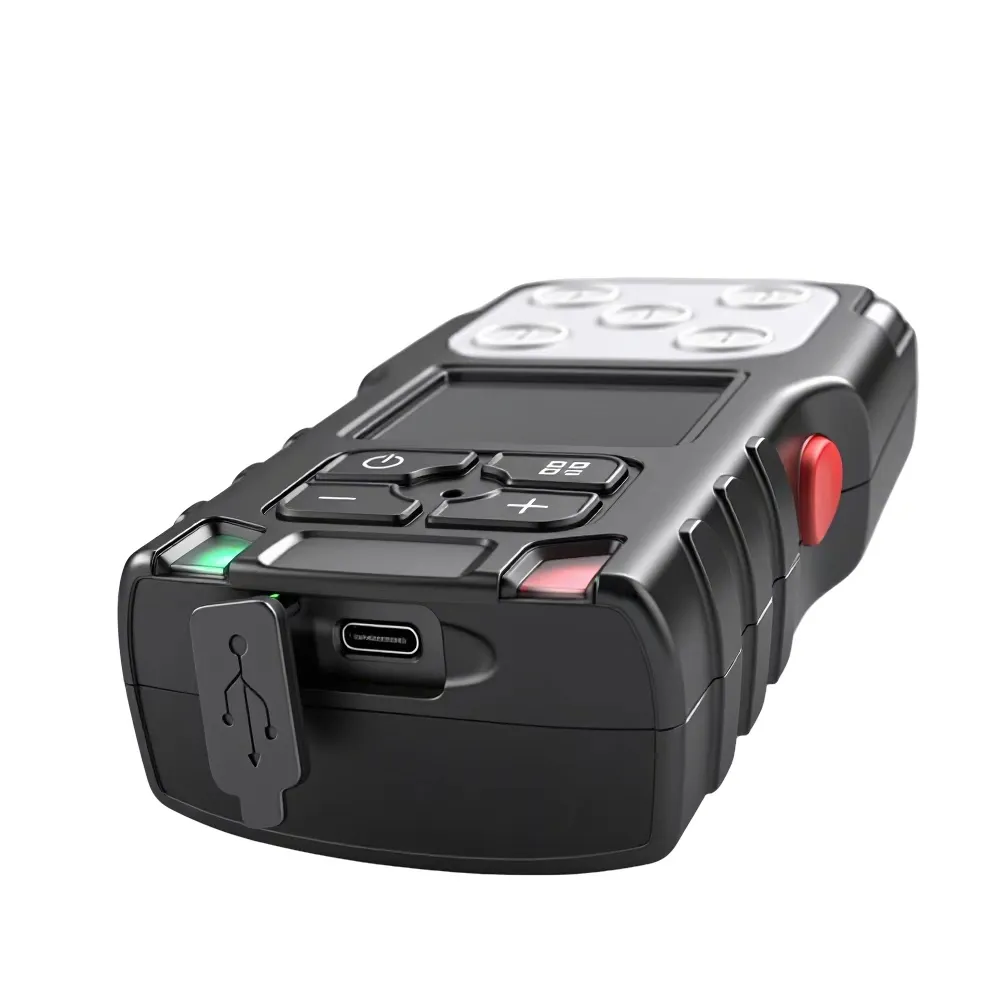

Dustproof Type-C Fast Charging Structure
The concealed Type-C charging port comes with a protective dust plug, supporting fast cyclic charging to meet long-time continuous field monitoring demands, with easy daily maintenance operation.
Frequently Asked Questions (FAQ) for NH3 Ammonia Gas Detector
Pre-Sales Customization & After-Sales Technical FAQ
Q1: Can I select a specific NH3 measuring range from the list?
A: Yes, all 12 listed ranges are optional, we can configure the exact range according to your on-site ammonia concentration environment.
Q2: Can the detector adapt to high-humidity livestock farm environments?
A: Absolutely, the built-in water trap filter can block water vapor interference, and the screen can display real-time humidity data to adapt to humid breeding workshops.
Q3: What ways can I use to export historical NH3 detection data?
A: You can check data on mobile APP, upload data to cloud via 4G/WiFi remotely, or print paper records via Bluetooth thermal printer on site.
Q4: What is the service life of the NH3 sensor?
A: The electrochemical ammonia sensor has a 2-3 year service life under normal use, we provide official sensor replacement and calibration service.
Q5: What alarm reminders does this ammonia detector have?
A: It has 4-direction LED flash alarm, loud buzzer alarm, and manual one-key alarm, to deliver multi-dimensional hazard alerts for operators.
