HNAG920-Cl2CO Portable Phosgene Detector 0-10ppm Dual Range
Model: HNAG920-Cl2CO
Detection Gas: Chlorine Carbonyl (Cl2CO / Phosgene / Carbonyl Chloride)
Detection Principle: High-Precision Electrochemical Detection Principle
Detection Range: 0-1ppm, 0-10ppm (dual range optional, customizable)
Product Description
HNAG920-Cl2CO Portable Phosgene Gas Detector: Industrial-Grade Cl₂CO Leak Detection Solution
This professional single-gas detector is designed for Cl₂CO (phosgene/carbonyl chloride) concentration monitoring and leak warning in industrial scenarios. With high-precision sensing technology and robust explosion-proof design, it provides reliable safety guarantee for operators in chemical, pharmaceutical, municipal and confined space working environments.
Robust Explosion-Proof Design for Harsh Working Environments
The housing is made of high-strength PC + TPU composite material, which is wear-resistant, drop-resistant and dust-proof, adapting to various complex industrial field environments. The product has passed CE, RoHS, SIL and explosion-proof certifications, meeting the safety standards for use in hazardous industrial sites. The back clip design supports wearing on work clothes, which is convenient for hand-held inspection and mobile operation.
High-Precision Electrochemical Sensing for Reliable Cl₂CO Monitoring
Dual Range Detection for Flexible Application Requirements
It adopts a professional electrochemical sensor specially optimized for Cl₂CO gas, with fast response speed, high detection accuracy and good long-term stability. The standard configuration provides two optional ranges of 0-1ppm and 0-10ppm, which can be selected according to the concentration of the application scenario. It supports real-time calculation of TWA (time-weighted average) and STEL (short-term exposure limit) to fully protect occupational health.
Diffusion & Pump Suction Dual Sampling Modes
The product supports both diffusion natural sampling and pump suction active sampling. The top is equipped with a water trap filter to protect the gas path from moisture and dust. The diffusion mode is suitable for daily environmental patrol, and the pump suction mode can be used for sampling in pipelines, narrow spaces and other special positions to meet diversified detection needs.
User-Centric Design for Convenient On-Site Operation
2.0" Color LCD with Auto 180° Screen Rotation
Equipped with a 2.0-inch high-definition color LCD screen with a resolution of 320*240, the concentration data, alarm status, temperature and humidity are displayed clearly at a glance. The unique automatic 180° screen rotation function can automatically adjust the display direction according to the holding posture, ensuring easy data reading in special operation positions such as overhead work and narrow space operation.

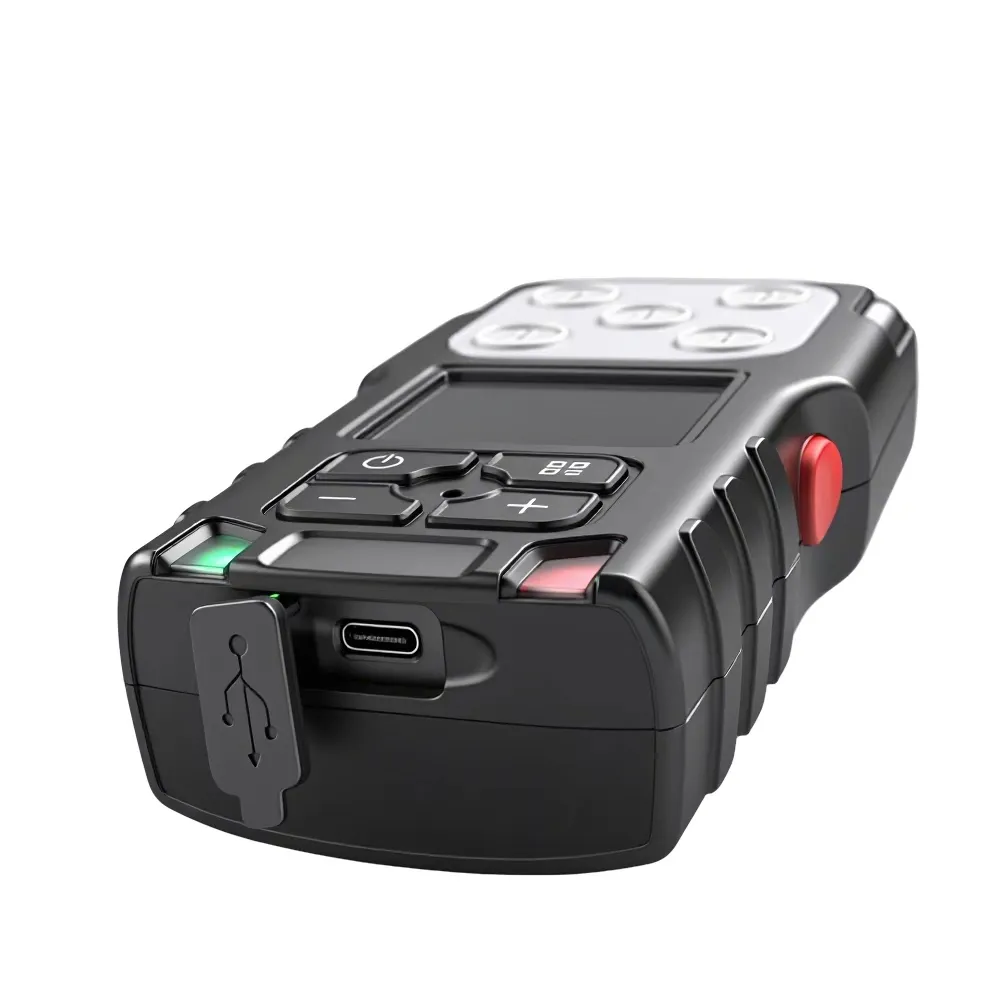

Multi-Mode Alarm System & One-Key Emergency Alarm
It is equipped with a sound-light dual alarm system. The green indicator light indicates normal operation, and the red indicator light with high-decibel buzzer triggers an alarm when exceeding the limit. The side of the body is designed with a one-key alarm button, which can quickly trigger the alarm in emergency. It supports low battery, sensor failure and other fault alarms, with comprehensive safety reminders.
Wireless Connectivity & Intelligent Data Management
Built-in 4G, WiFi, Bluetooth and LoRa multiple wireless communication modules support real-time data upload to the cloud management platform. Managers can view real-time monitoring data, historical records and alarm logs remotely through the mobile APP. It supports Bluetooth connection to a thermal printer to print detection reports on site, which meets the needs of enterprise digital safety management and work traceability.
Complete Portable Kit for Field Inspection Work
The product is equipped with a high-strength aluminum alloy protective box, which is shockproof and drop-resistant, convenient for outdoor carrying and equipment storage. The complete set includes gas detector, USB charging cable, user manual, warranty card and other accessories. It can be put into use directly out of the box, which is very suitable for on-site inspection, emergency detection and other mobile work scenarios.
Wide Applications of HNAG920-Cl2CO Carbonyl Chloride Detector
This portable Cl₂CO gas detector is widely used in chemical production, pharmaceutical manufacturing, warehousing and logistics, municipal engineering, confined space operation, fire emergency detection, environmental monitoring and other fields. It is an essential safety equipment for enterprise occupational health management and on-site gas safety detection.
Frequently Asked Questions (FAQ)
Q: What detection principle does the HNAG920-Cl2CO phosgene detector use?
A: The HNAG920-Cl2CO gas detector adopts a high-precision electrochemical sensor specially optimized for Cl₂CO (phosgene/carbonyl chloride) gas, with fast response, high detection accuracy and good long-term stability.
Q: What detection ranges are available for this Cl₂CO gas detector?
A: The standard configuration supports dual ranges of 0-1ppm and 0-10ppm, which can be selected according to actual application scenarios. We also support customized ranges for special industry requirements.
Q: Does this phosgene detector support both diffusion and pump suction sampling?
A: Yes, the device is designed with both a diffusion sampling inlet and a pump suction port with a water trap filter. It can adapt to daily environmental inspection and sampling detection in narrow spaces and pipelines.
Q: Can the monitoring data of the Cl₂CO detector be transmitted remotely?
A: The device is equipped with 4G, WiFi, Bluetooth and LoRa wireless communication modules, supporting real-time data upload to the cloud platform, remote viewing via mobile APP, and on-site Bluetooth printing of reports.
