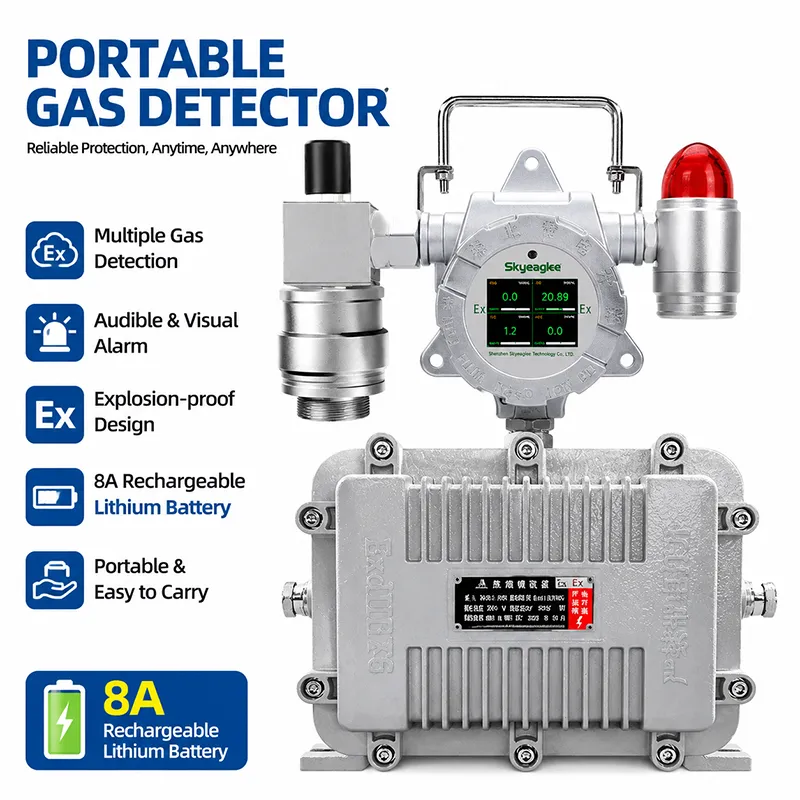

Skyeaglee Fixed Multi Gas Detector H2SO4 O2 SO2 CO
Model：HNAG1000
Detection：H₂SO₄, O₂, SO₂, CO
Detection Principle：Electrochemical (Optional NDIR infrared sensor)
Detection range：H₂SO₄: 0-20ppm; O₂: 0-30%VOL; SO₂: 0-20ppm; CO: 0-1000ppm (Customizable)
Product Description
Comprehensive Overview of the Skyeaglee Fixed Multi Gas Detector
The Skyeaglee fixed multi gas detector (Model: HNAG1000) is a state-of-the-art monitoring solution engineered specifically for hazardous locations, confined spaces, and rigorous industrial processing environments. Integrating advanced gas sensing technology, secure wireless data transmission, and rugged mechanical engineering, it provides simultaneous, continuous protection against multiple toxic and asphyxiant hazards. Designed to bridge the gap between fixed and portable monitoring systems, it delivers unmatched reliability for industrial safety compliance.
| Technical Parameter | Specification Details |
| Model Code | HNAG1000 |
| Detection Gases | H₂SO₄, O₂, SO₂, CO (1 to 4 types freely matched) |
| Detection Principle | Electrochemical / Optional NDIR Infrared |
| Measurement Ranges | H₂SO₄: 0-20ppm; O₂: 0-30%VOL; SO₂: 0-20ppm; CO: 0-1000ppm |
| Response Time (T90) | T90 ≤ 30s (varies with gas types) |
| Ingress Protection | IP66 (Resists water splash and short-term rain) |
| Explosion-Proof Rating | Exd II CT6 / Exd II BT6 / ATEX |
Advanced Intelligent Sensor Technology and Precision Measurement
Equipped with high-performance intelligent sensors utilizing intrinsic safety technology, this instrument supports multi-gas and multi-range detection tailored to exact operational conditions. The built-in intelligent temperature and zero-point compensation algorithm optimizes measurement precision, ensures superior gas selectivity, and effectively neutralizes cross-interference from background gases. Furthermore, it supports tool-free sensor interchangeability, offline calibration, and zero-point self-calibration for minimal downtime.
Rugged Explosion-Proof Enclosure and Environmental Durability
Engineered for extreme industrial sites, the detector utilizes a robust die-cast aluminum alloy flameproof enclosure certified with Exd II CT6, Exd II BT6, and ATEX explosion-proof ratings. With an IP66 ingress protection rating, it effectively resists dust and water exposure. Powered by a high-capacity rechargeable 8AH lithium battery, it delivers up to 36 to 80 hours of continuous, uninterrupted testing under standard configurations, ensuring reliable performance in harsh chemical and petrochemical environments.
Real-Time IoT Wireless Transmission and Smart Connectivity
The unit features a built-in wireless transmission module (such as LTE Cat-1 DTU) that integrates seamlessly into Internet of Things (IoT) frameworks. It enables real-time synchronization of gas concentration data and alarm signals to user mobile terminals, computers, PLC, DCS systems, and cloud platforms. When a hazard is detected, it triggers local audible-visual alarms while simultaneously driving remote receiving terminals to alert on-site operators immediately.
Intuitive LCD Display Interface and Single-Person Maintenance
The large dot-matrix LCD display provides a clear, comprehensive operation interface supporting multiple units (%VOL, PPM, %LEL, mg/m³). Operators can perform alarm point settings, zero-point adjustments, and target calibrations using an infrared remote control without opening the heavy explosion-proof enclosure. This design allows safe, single-person maintenance even in active hazardous areas.
Versatile Industrial Applications and Scenario Adaptability
Designed to meet rigorous safety demands, the detector is widely deployed across paint booths, incineration plants, pharmaceutical workshops, wastewater treatment, petroleum pipelines, chemical processing plants, steel mills, tunnel construction, and emergency rescue operations. Its flexibility in housing up to 4 distinct gas sensors makes it an indispensable tool for comprehensive facility safety monitoring.
Frequently Asked Questions (FAQ)
Q1: What specific gases can the Skyeaglee HNAG1000 monitor simultaneously?
A: It supports simultaneous monitoring of 1 to 4 types of flammable, toxic, and harmful gases. The standard configuration covers sulfuric acid mist (H₂SO₄), oxygen (O₂), sulfur dioxide (SO₂), and carbon monoxide (CO), with optional sensors available for Cl₂, NH₃, HCl, and VOCs.
Q2: Can the measurement ranges and operational parameters be customized?
A: Yes, detection ranges are fully customizable based on your exact working conditions. Standard ranges include H₂SO₄ (0-20ppm), O₂ (0-30%VOL), SO₂ (0-20ppm), and CO (0-1000ppm), with high-precision options available upon request.
Q3: How does the explosion-proof and ingress protection design safeguard the unit?
A: The device features a flameproof die-cast aluminum alloy structure with Exd II CT6, Exd II BT6, and ATEX explosion-proof ratings, alongside an IP66 dust-tight and water-resistant rating, making it fully safe for Zone 1 and Zone 2 hazardous areas.
