Portable 4-in-1 Gas Detector Multi Gas Monitor for Confined Space
Model:SK/MIC-600-4H-STH
Detection:Methane (CH4), Oxygen (O2), Carbon Monoxide (CO), Hydrogen Sulfide (H2S) - 4 gases simultaneously
Detection Principle:Catalytic combustion (CH4), Electrochemical (O2, CO, H2S), optional NDIR infrared or PID sensor
Detection Range:CH4: 0-100%LEL; O2: 0-30%VOL; CO: 0-1000ppm; H2S: 0-100ppm (customizable ranges available)
Previous: No more data
Product Description
Product Overview
The Skyeaglee SK/MIC-600-4H-STH portable 4-in-1 gas detector is a professional-grade gas monitoring solution designed for confined space operations, tunnel construction, and various industrial environments. Featuring both pump suction and diffusion sampling modes, this detector delivers fast response times, high measurement accuracy, and excellent stability.
Built with explosion-proof enclosure (Exd II BT6,ATEX), this multi-gas monitor is suitable for use in hazardous locations. The integrated 4G wireless module enables real-time data transmission to the cloud platform, allowing remote monitoring from computers, tablets, and mobile devices.

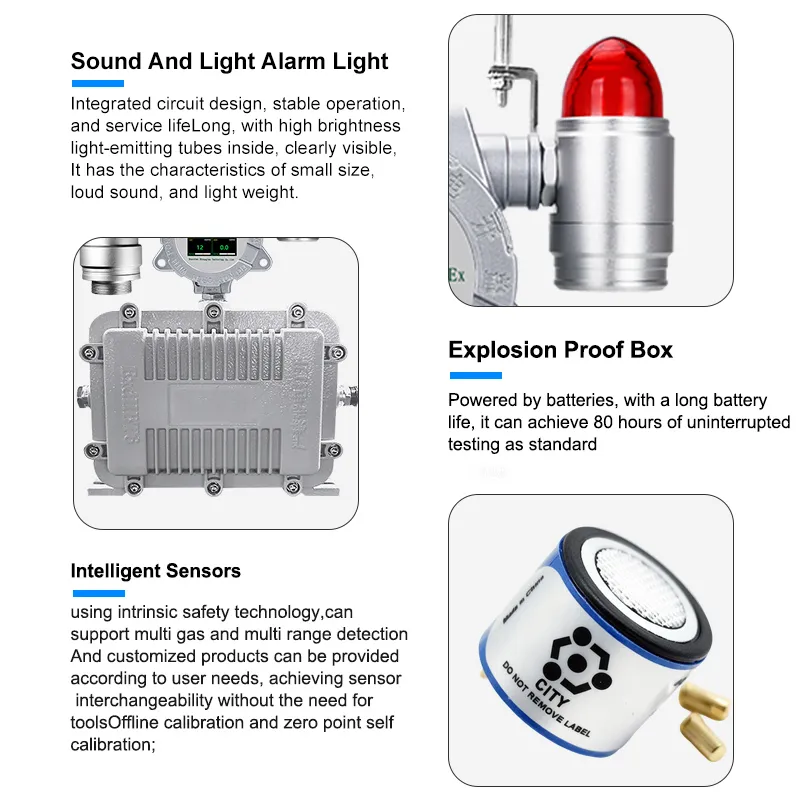

Key Features
Intelligent Sensor Technology
Supports multi-gas and multi-range detection
Customizable sensor configurations based on user requirements
Tool-free sensor interchangeability
Offline calibration and zero point self-calibration
Imported high-precision sensors for reliable readings
Real-time Monitoring & Data Transmission
4G wireless data transmission to cloud platformReal-time video and gas concentration monitoring
Data accessible via PC, tablet, and mobile phone
8-year free cloud platform service
Supports third-party platform integration via protocol
Explosion-proof & Durable Design
Exd II BT6、ATEX explosion-proof enclosure
Built-in rechargeable battery with 36 hours continuous operation
Sound and light alarm for concentration exceedance
Industrial-grade construction for harsh environments
Portable handheld design with carrying handle

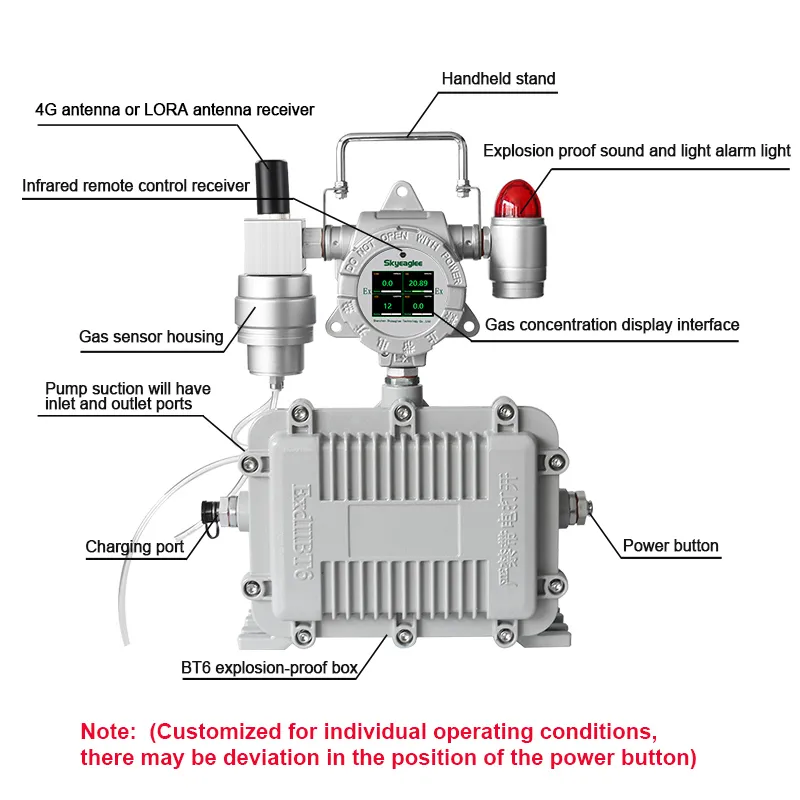

Product Structure
Main Components
Gas sensor housing - Houses the 4 gas sensors

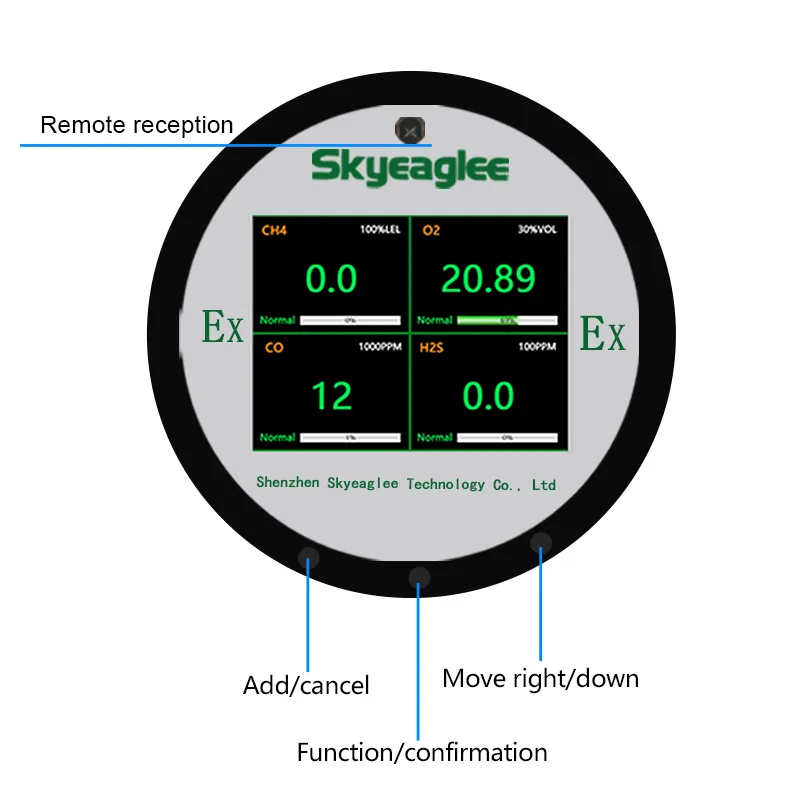

Gas concentration display interface - LCD screen showing real-time readings
Explosion proof sound and light alarm light - Visual and audible alert system
4G antenna or LORA antenna receiver - Wireless data transmission
Infrared remote control receiver - Remote operation support
Handheld stand - Portable carrying handle
BT6 explosion-proof box - Battery and control unit
Charging port - USB charging interface
Power button - Device control
Technical Specifications
Detection Parameters
| Gas | Detection Range | Resolution | Principle |
|---|---|---|---|
| CH4 (Methane) | 0-100% LEL | 0.1% LEL | Catalytic Combustion |
| O2 (Oxygen) | 0-30% VOL | 0.01% VOL | Electrochemical |
| CO (Carbon Monoxide) | 0-1000 ppm | 1 ppm | Electrochemical |
| H2S (Hydrogen Sulfide) | 0-100 ppm | 0.1 ppm | Electrochemical |
Note: Custom ranges and additional gases available upon request
Physical Specifications
Dimensions: 420mm (H) × 240mm (W) × 200mm (D)
Box Dimensions: 200mm × 240mm × 120mm
Enclosure Rating: Exd II BT6,ATEX
Battery Life: Up to 36 hours continuous testing
Sampling Method: Pump suction / Diffusion (dual mode)
Display: LCD digital display
Alarm: Sound and light alarm

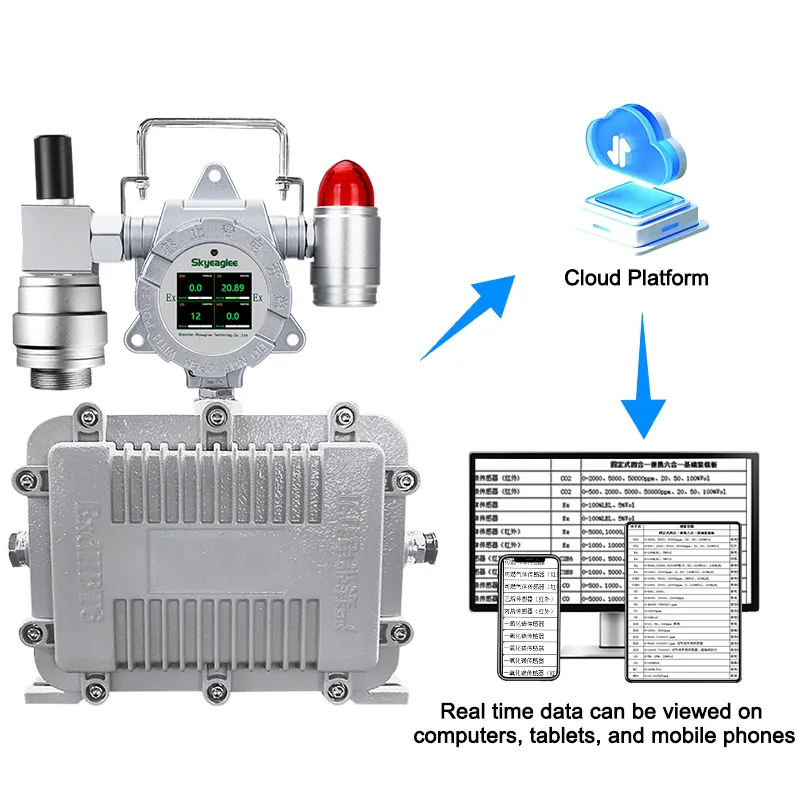

Cloud Platform & Data Management
Real-time Cloud Monitoring
The built-in 4G module transmits gas concentration data to the cloud platform in real-time. Users can monitor multiple devices simultaneously from anywhere.Platform Features
Real-time gas concentration displayHistorical data recording and analysis
Device management and configuration
Remote alarm notifications
Video monitoring integration (optional)
Data export and reporting
Service Terms
Cloud platform: 8 years free serviceVideo data traffic: Monthly or annual subscription required
Custom platform integration: Available via protocol
Applications
Industries & Scenarios
Petrochemical & Chemical: Refineries, chemical plants, gas pipelines
Metallurgy & Mining: Steel plants, smelters, coal mines

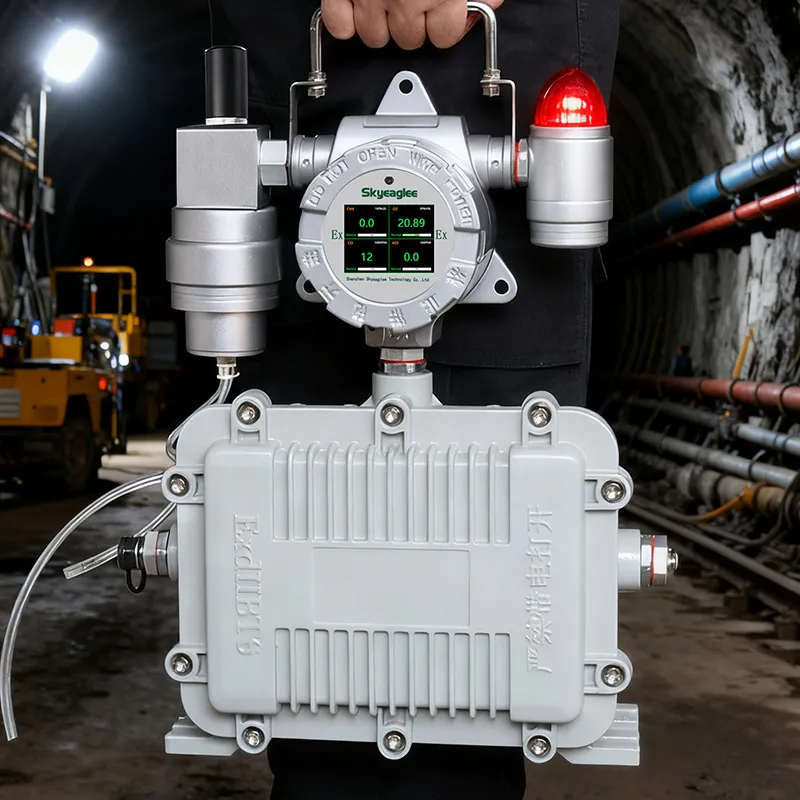

Construction: Tunnel construction, confined space operations
Environmental: Air quality monitoring, sewage treatment
Pharmaceutical: Production workshops, research laboratories
Utilities: Boiler rooms, gas stations, power plants
Safety: Firefighting, hazardous material response
Others: Aerospace, military equipment monitoring
Frequently Asked Questions (FAQ)
Q1: What gases can this 4-in-1 detector measure?
A: The standard configuration measures Methane (CH4), Oxygen (O2), Carbon Monoxide (CO), and Hydrogen Sulfide (H2S). Custom gas combinations and ranges are available upon request.
Q2: How long does the battery last?
A: The built-in rechargeable battery provides up to 36 hours of continuous testing on a single charge, making it ideal for extended work shifts.
Q3: Is this detector suitable for confined space entry?
A: Yes, this portable gas detector is specifically designed for confined space operations. The pump suction feature allows you to test air quality before entering, ensuring worker safety.
Q4: Can I monitor data remotely?
A: Absolutely. The built-in 4G module transmits real-time data to our cloud platform. You can monitor readings from your computer, tablet, or smartphone anywhere with internet access.
Q5: What does the explosion-proof rating mean?
A: The Exd II BT6,ATEX rating means the detector is certified safe for use in explosive gas environments. It can be used in Zone 1 and Zone 2 hazardous areas.
Q6: How do I calibrate the detector?
A: The detector supports offline calibration and zero point self-calibration. Sensors are also interchangeable without tools, making maintenance simple and cost-effective.
Q7: Is the cloud platform free?
A: Yes, the cloud platform service is free for 8 years. Video data traffic requires a separate monthly or annual subscription fee.
