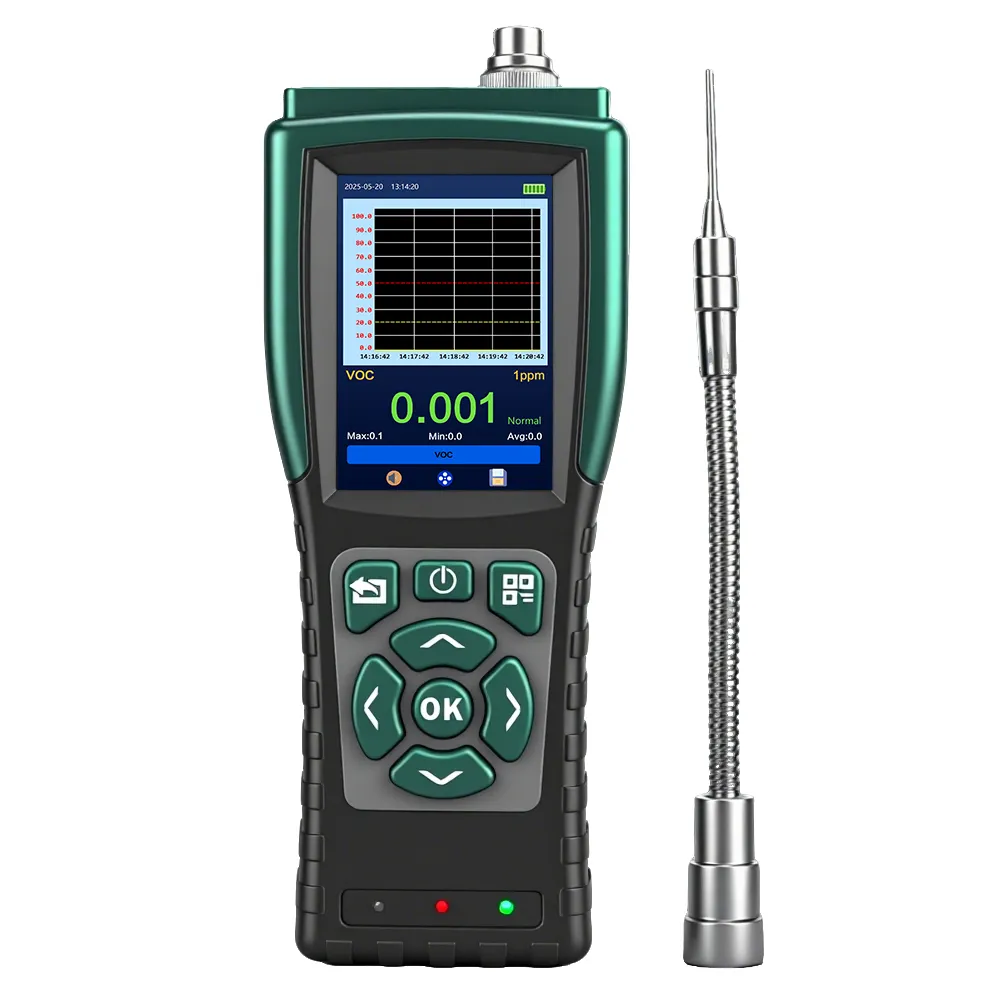

Portable Argon Gas Detector Thermal Conductivity Meter
Model： HNAG900
Detection： Argon (Ar)
Detection Principle： Thermal Conductivity
Detection range： 0-10%, 50%, 100%, 99.999%Vol
Product Description
Advanced Portable Argon Gas Detector for Precise Thermal Conductivity Measurement
Ensure workplace safety and accurate gas concentration analysis with our state-of-the-art portable argon gas detector. Engineered with advanced thermal conductivity detection principles, this device delivers rapid response times and exceptional stability for tracking argon (Ar) leaks across demanding industrial environments.
Key Technical Specifications & Flexible Measurement Ranges
Equipped with a high-performance 32-bit microprocessor, the HNAG900 model provides customizable detection scales to match specific operational demands.
• Measure Gas: Argon (Ar)
• Detection Principle: Thermal Conductivity
• Detection Range: 0-10%, 50%, 100%, 99.999%Vol
• Sampling Method: Pump suction type (adjustable pump speed)
• Response Time: T90 < 10S
• Protection Grade: IP65
• Explosive-proof Grade: Ex ib ll CT4 Gb
Smart Data Transmission & 3.5-Inch TFT Display
Monitoring gas levels has never been easier. The device incorporates a vibrant 3.5-inch TFT color screen (480*320 resolution) displaying real-time concentration curves, max/min averages, and system statuses clearly.
• Data Storage: Stores up to 100,000 historical data entries and 1,000 alarm records.
• Data Export: Features an external USB interface allowing users to connect with a computer, export data, and generate Excel spreadsheets effortlessly.
• Wireless Options: Supports flexible data transmission including custom 4/5G upload, LoRa P2P, and Bluetooth options.
Standard Accessories & Durable Build
Built for tough field conditions, the detector comes housed in a rugged enclosure with a 27cm bendable metal probe for hard-to-reach sampling zones.
• Standard Accessories: Portable gas detector, aluminum alloy enclosure, bendable sampling probe, Mini-USB cable, charger, and user manual.
• Battery Capacity: Built-in 5400mA rechargeable lithium battery ensuring extended standby performance.
Frequently Asked Questions (FAQ)
Q1: What is the primary detection principle used for this argon detector?
A: It utilizes an advanced thermal conductivity detection principle, making it highly reliable for measuring argon (Ar) concentrations across various ranges (0-10%, 50%, 100%, 99.999%Vol).
Q2: How can I export the recorded data to my computer?
A: The device features an external USB interface. You can easily connect it via a USB cable to export up to 100,000 stored entries into a computer spreadsheet for analysis.
Q3: How often should the sensor be calibrated?
A: Under normal working conditions, the sensor has a service life of 1 to 3 years and should be regularly inspected and calibrated every 6 months to 1 year to ensure maximum monitoring accuracy.
