Industry online multi gas detector RS485 signal Output
Detection gas:CO2/Ex/CH4/CO/H2S/O2/N2/NH3/Custom
Range:0-5000ppm/0-100%LEL/Custom
Detection Principle:Catalytic combustion / Electrochemical / Infrared / PID
Resolution:1ppm/0.1%LEL/Custom
Detection Accuracy:±2%F.S
Model:SK/MIC-600
Detection gas:CO2/Ex/CH4/CO/H2S/O2/N2/NH3/Custom
Range:0-5000ppm/0-100%LEL/Custom
Detection Principle:Catalytic combustion / Electrochemical / Infrared / PID
Resolution:1ppm/0.1%LEL/Custom
Detection Accuracy:±2%F.S
Model:SK/MIC-600
Previous: No more data
Product Description
Measured Gas：4 Gas
Testing principle：Catalytic combustion / Electrochemical / Infrared / PID
Power supply：DC24V
Baud rate：9600
Accuracy：±3%F.S
Response Time：<20S
Repeatability：±1%F.S
Humidity：10-95%RH(no condensing)
Temperature：-20 ~ 50℃
Long-term Drift：≤±1%(F.S/year)
Storage Temp：-20 ~ 50℃
Warm-up Time：30S
Working Current：≤50mA
Working Pressure：86kpa-106kpa
Type：Fixed
Warranty：1 year

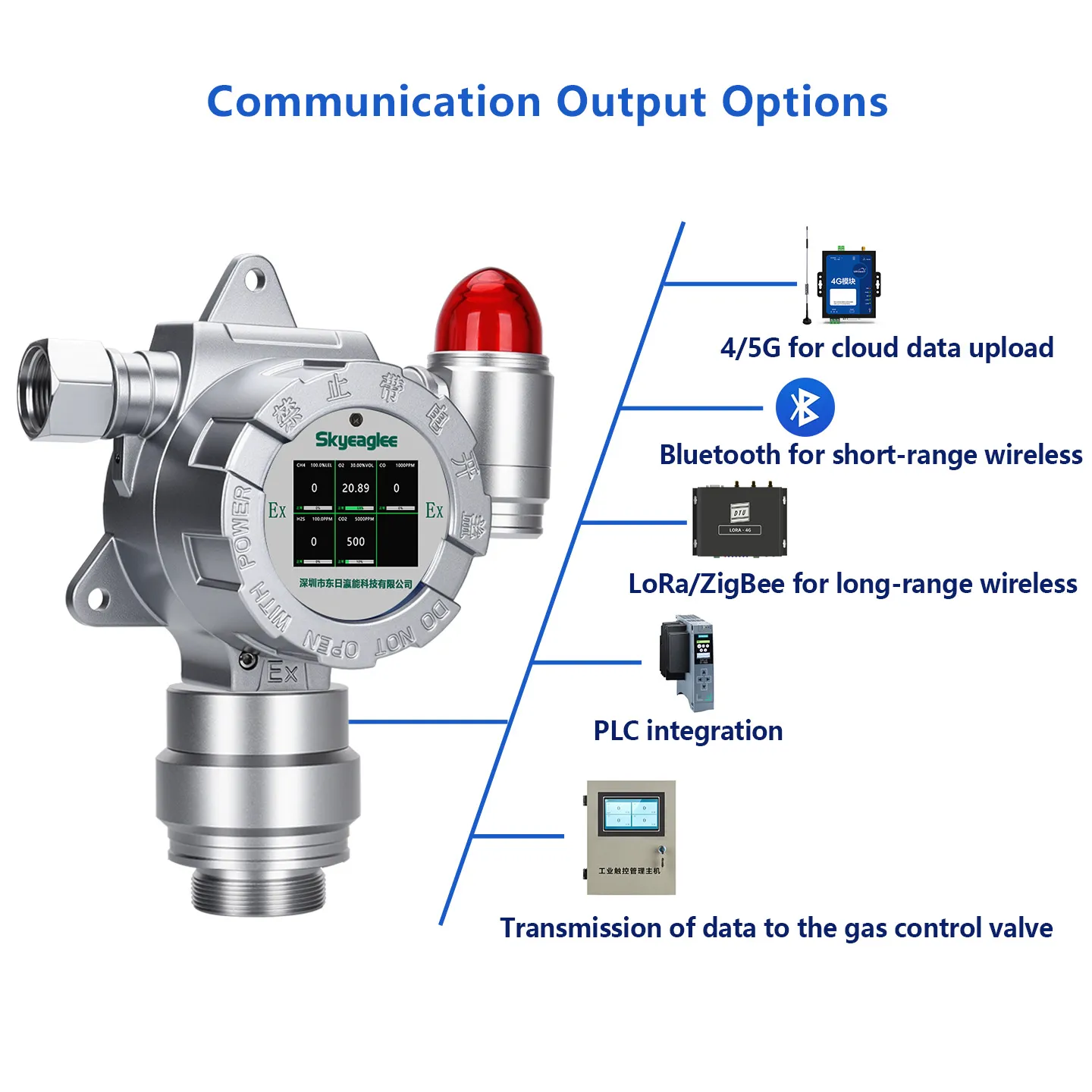

Output：4-20mA/RS485
Housing Material：Aluminum alloy
Service Life：1-3 years
Size：220*205*97(L*W*H)
Measured Gas：4 Gas
Testing principle：Catalytic combustion / Electrochemical / Infrared / PID
Power supply：DC24V
Baud rate：9600
Accuracy：±3%F.S
Response Time：<20S
Repeatability：±1%F.S
Humidity：10-95%RH(no condensing)
Temperature：-20 ~ 50℃
Long-term Drift：≤±1%(F.S/year)
Storage Temp：-20 ~ 50℃
Warm-up Time：30S
Working Current：≤50mA
Working Pressure：86kpa-106kpa
Type：Fixed
Warranty：1 year
Output：4-20mA/RS485
Housing Material：Aluminum alloy
Service Life：1-3 years
Size：220*205*97(L*W*H)
