Industrial Management Control Host
Category: Products Host control alarm 4-20mA Quad Management Host 4-20mA eight-way management host 4-20mA twelve-way management host 4-20mA 16-way management host 4-20mA 32-way management host
Key words: Products
Model: SK/MIC-6500
Measurement object:
Category: Products Host control alarm 4-20mA Quad Management Host 4-20mA eight-way management host 4-20mA twelve-way management host 4-20mA 16-way management host 4-20mA 32-way management host
Key words: Products
Model: SK/MIC-6500
Measurement object:
Next: No more data
Product Description
Industrial touch management host (hereinafter referred to as the management host), this management host uses7 inch,26 Wan Zhencai display, four-wire resistive touchpad, accurate touch accuracy, durable, long touch life. Also configured with high performanceCortex M4Processor, clocked up180MHzand the data storage mode isUDisk storage, a large amount of stored data, provides convenience for later data analysis.
Features:
1, password login to prevent misoperation by irrelevant personnel;
2, The channel is freely set, which is convenient for users to configure flexibly;
3, historical dataUDisk storage;
4Historical AlarmUDisk storage;
5, the historical data recording time interval can be set;
6,4 The alarm mode can be set freely;
7Time display and setting;
8At the same time, support the most32 Road485 Equipment +16 Road4-20mAEquipment;
9, default4 Passive dry node output, can be equipped with relay expansion module and so on according to user requirements.
Main parameters of management host
Input power: AC220V
Output power: DC24V/2A
Power consumption: less than 7W
测量单位：ppm、ppb、%LEL、%VOL、mg/m3、mg/L、g/m3、ug/m3、%rh、℃、MPa、KPa、 Pa 等等
Installation mode: wall-mounted
Alarm setting: 4 modes free setting
Received signal: 4-20MA, RS485 (standard ModbusRTU protocol)
Alarm mode: buzzer alarm and alarm information stored to U disk
Storage: U disk stores alarm records in CSV format. A single file can store 1 million records. A new file will be automatically created after a single file is full. U disk stores historical data in CSV format. A single file can store 1 million records. A new file will be automatically created after a single file is full.
Output contacts: default 4 normally open contacts, contact capacity 30V/3A or 250V/3A, relay module expandable output contacts can be cross-configured
Temperature:-20~70 ℃
Humidity: 0 ~ 90% RH without condensation
The human-computer interaction of this product is realized through the touch function of the 7-inch TFT touch screen. The touch screen is a resistive touch screen, which is different from the current popular capacitive screen mobile phones. The resistive screen detects the position of the pressing point through the internal sensor to judge the user's operation, and needs to press the screen with a certain degree of strength. Before using this product, you must be familiar with the relevant parameters of the gas detector, such as the slave number, slave name, display accuracy, slave range, low alarm value, high alarm value, relay number, alarm mode, alarm return, etc. After getting familiar with it, you can power on and operate it. All functions are described as follows: startup preheating, password login, slave number, slave status, slave unit, display accuracy, slave range, relay number, data address, slave name, low alarm value, high alarm value, alarm return difference, alarm mode, 4mA calibration value, 20mA calibration value, local address, reading interval, saving interval, monitoring page cycle time, backlight time, touch sound, alarm sound, date and time settings, language switching;
Industrial touch management host (hereinafter referred to as the management host), this management host uses7 inch,26 Wan Zhencai display, four-wire resistive touchpad, accurate touch accuracy, durable, long touch life. Also configured with high performanceCortex M4Processor, clocked up180MHzand the data storage mode isUDisk storage, a large amount of stored data, provides convenience for later data analysis.
Features:
1, password login to prevent misoperation by irrelevant personnel;
2, The channel is freely set, which is convenient for users to configure flexibly;
3, historical dataUDisk storage;
4Historical AlarmUDisk storage;
5, the historical data recording time interval can be set;
6,4 The alarm mode can be set freely;
7Time display and setting;
8At the same time, support the most32 Road485 Equipment +16 Road4-20mAEquipment;
9, default4 Passive dry node output, can be equipped with relay expansion module and so on according to user requirements.
Main parameters of management host
Input power: AC220V
Output power: DC24V/2A
Power consumption: less than 7W
测量单位：ppm、ppb、%LEL、%VOL、mg/m3、mg/L、g/m3、ug/m3、%rh、℃、MPa、KPa、 Pa 等等
Installation mode: wall-mounted
Alarm setting: 4 modes free setting
Received signal: 4-20MA, RS485 (standard ModbusRTU protocol)
Alarm mode: buzzer alarm and alarm information stored to U disk
Storage: U disk stores alarm records in CSV format. A single file can store 1 million records. A new file will be automatically created after a single file is full. U disk stores historical data in CSV format. A single file can store 1 million records. A new file will be automatically created after a single file is full.
Output contacts: default 4 normally open contacts, contact capacity 30V/3A or 250V/3A, relay module expandable output contacts can be cross-configured
Temperature:-20~70 ℃
Humidity: 0 ~ 90% RH without condensation
The human-computer interaction of this product is realized through the touch function of the 7-inch TFT touch screen. The touch screen is a resistive touch screen, which is different from the current popular capacitive screen mobile phones. The resistive screen detects the position of the pressing point through the internal sensor to judge the user's operation, and needs to press the screen with a certain degree of strength. Before using this product, you must be familiar with the relevant parameters of the gas detector, such as the slave number, slave name, display accuracy, slave range, low alarm value, high alarm value, relay number, alarm mode, alarm return, etc. After getting familiar with it, you can power on and operate it. All functions are described as follows: startup preheating, password login, slave number, slave status, slave unit, display accuracy, slave range, relay number, data address, slave name, low alarm value, high alarm value, alarm return difference, alarm mode, 4mA calibration value, 20mA calibration value, local address, reading interval, saving interval, monitoring page cycle time, backlight time, touch sound, alarm sound, date and time settings, language switching;
Product Recommendation
handheld Hydrogen Fluoride gas detector HF-HNAG920handheld Hydrogen Fluoride gas detector HF
Model: HNAG920 Sampling Method: Pumping Suction Detection Principle: Electrochemistry Gas: Hydrogen Fluoride (HF) Range: 0-10ppm,0-50ppm,0-100ppm Resolution: 0.01ppm,0.1ppm. Accuracy: ≤±2% F.S.

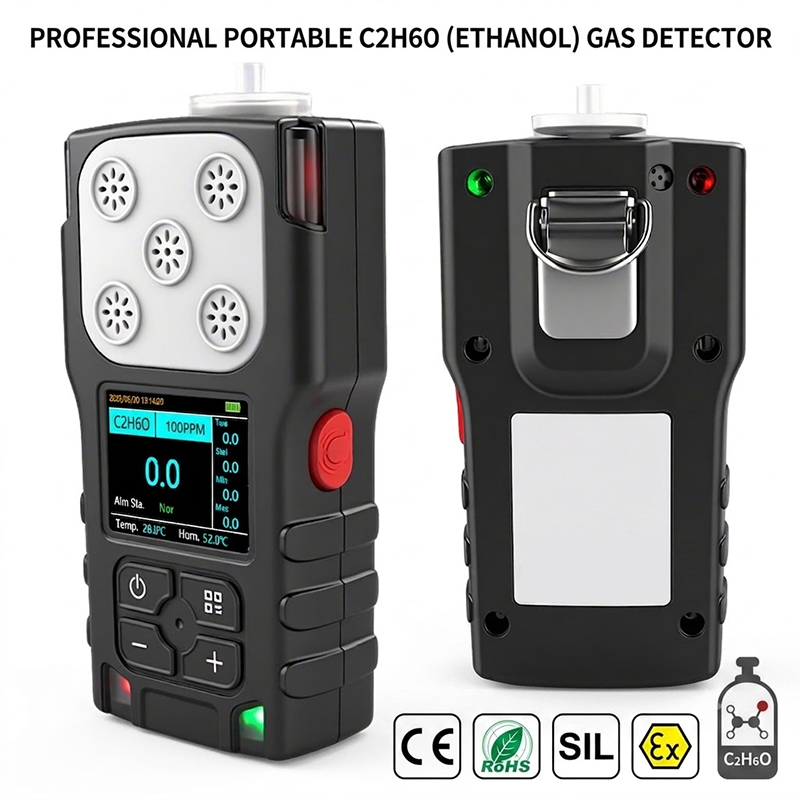

Portable Ethanol analyzer C2H6O ppm-HNAG920Portable Ethanol analyzer C2H6O ppm
