Industrial Gas Analyzer RS485 Multi-Channel Gas Alarm 7-inch LCD touch screen Controller with Host Voice Prompt Gas Detection Controller
Category: Products Host control alarm RS485 bus management host
Key words: Products
Model: SK/MIC-6500
Measurement object: CO2/Ex/CH4/CO/H2S/O2/N2/NH3/CL2/H2/He/Ar/CH2O/O3/NO/NO2/SO2/C2H4O/PH3/COCL2/HBR/HCL/HCN/CLO2/SIH4/CH3BR/SO2F2/F2/HF/C2H2/CS2/SF6/C2H4/C2H6O/H2O2/VOC/PM/RH
Category: Products Host control alarm RS485 bus management host
Key words: Products
Model: SK/MIC-6500
Measurement object: CO2/Ex/CH4/CO/H2S/O2/N2/NH3/CL2/H2/He/Ar/CH2O/O3/NO/NO2/SO2/C2H4O/PH3/COCL2/HBR/HCL/HCN/CLO2/SIH4/CH3BR/SO2F2/F2/HF/C2H2/CS2/SF6/C2H4/C2H6O/H2O2/VOC/PM/RH
Product Description
Industrial Management Control Host

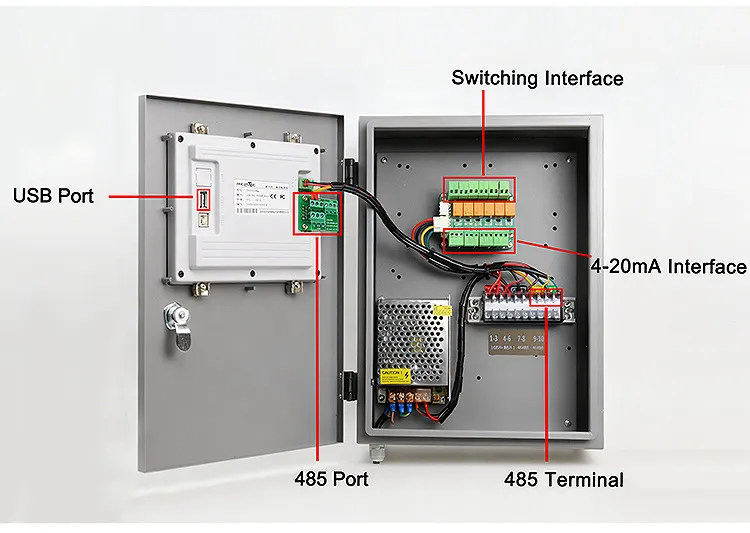

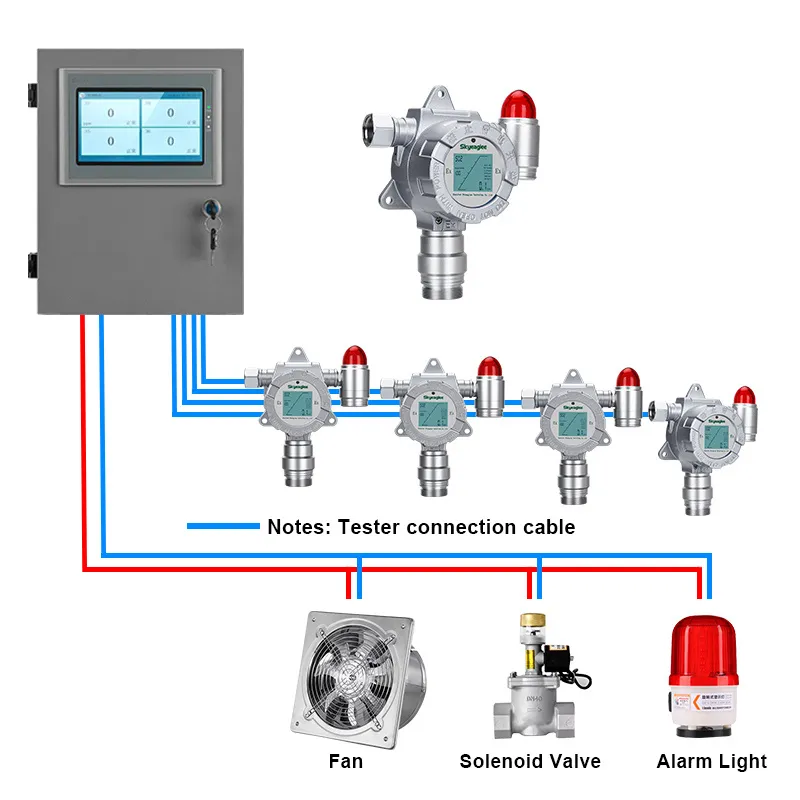

Connectable Sensors: Bus system (485) 32 sensors
Point-to-point system current output (4-20mA) 16 sensors
Display: 7-inch LCD touch display screen
Signals: 4-20mA, RS485 (Standard Modbus RTU Protocol)

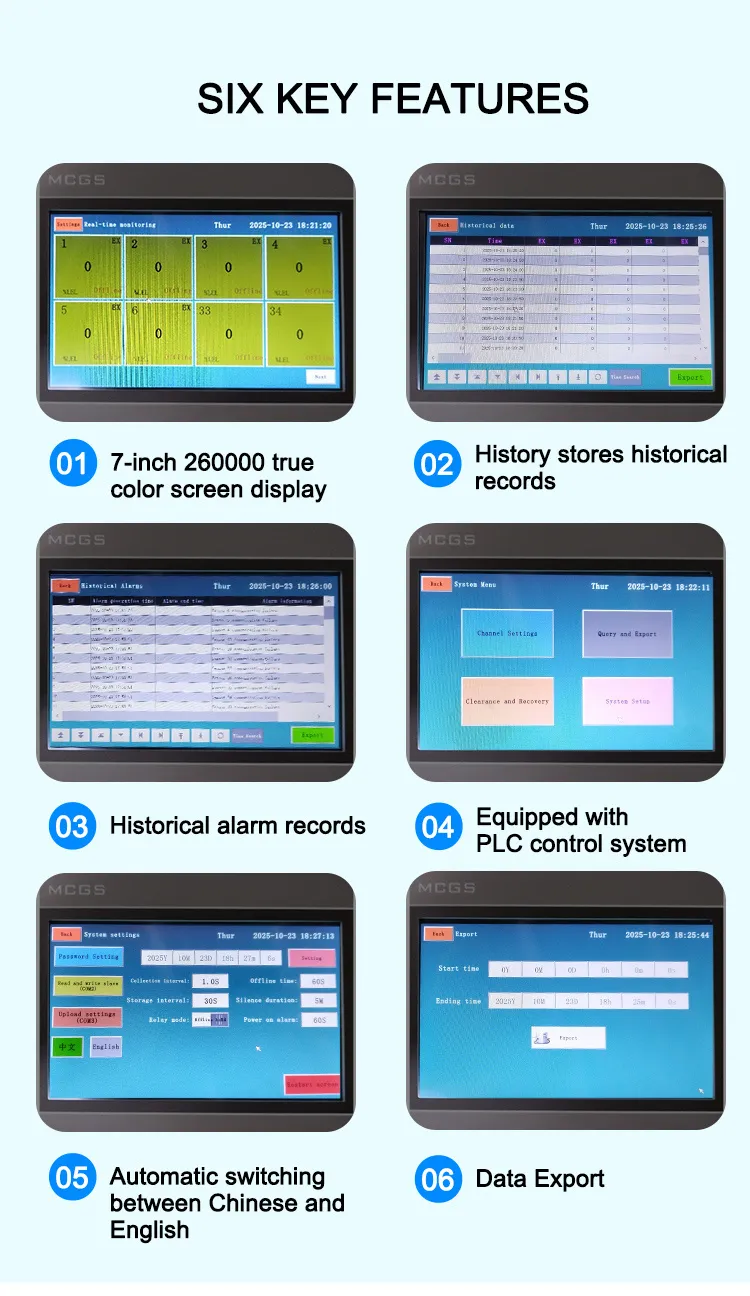

Features:
Equipped with PLC control system
Historical data storage and recording
Historical alarm records
Built-in buzzer (external sound and light alarm can be connected)
Free switching between Chinese and English
Data storage mode: USB drive storage
Industrial Touch Management Host: This management host adopts a 7-inch 260K true-color display and a four-wire resistive touch panel, providing accurate touch precision, durability, and a long touch lifespan. It is also equipped with a high-performance Cortex M4 processor, with a main frequency of up to 180MHz. The data storage mode is USB drive storage, offering large storage capacity and facilitating later data analysis.
Measurement Units: ppm, ppb, %LEL, %VOL, mg/m³, µg/m³, etc.

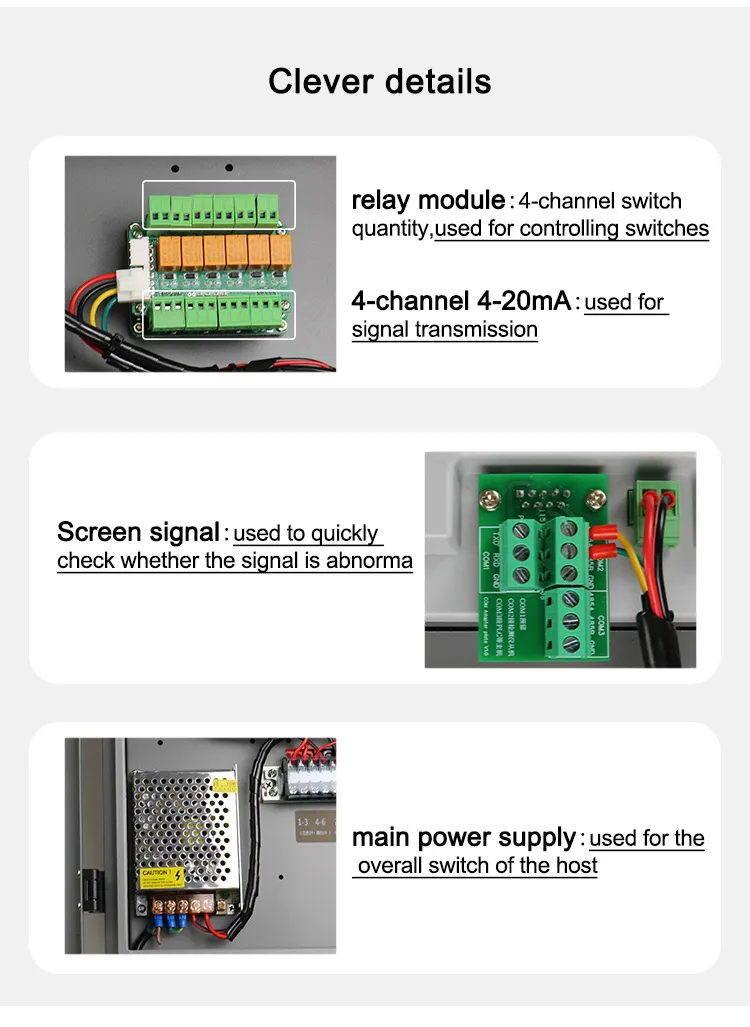

Output Contacts: 4 normally open contacts, contact capacity 30V/3A or 250V/3A, relay module expandable
Temperature: -20~50°C, Humidity: 0~95% RH non-condensing
Input Power: AC220V
Output Power: DC24V/2A
Power Consumption: Less than 7W
Alarm Mode: Buzzer alarm and alarm information stored to USB drive

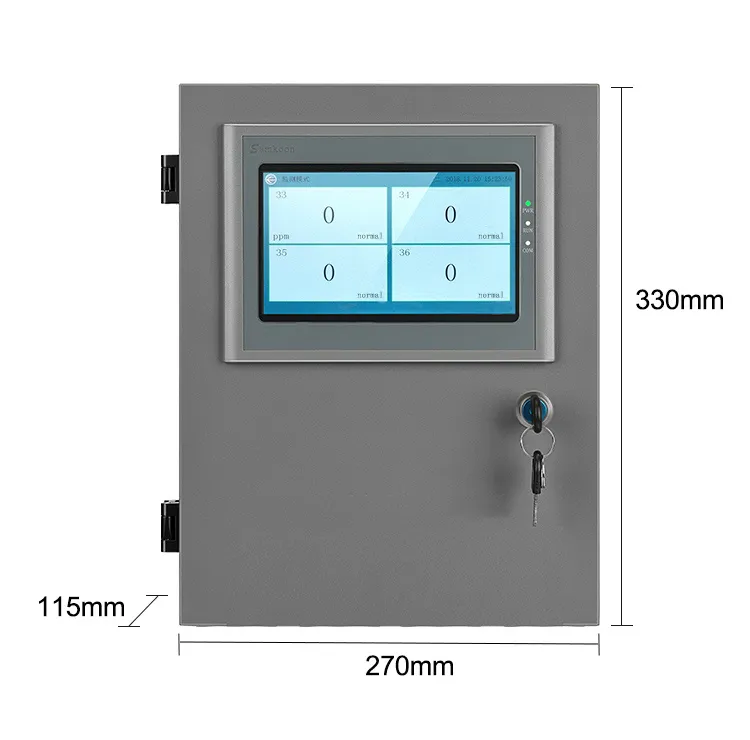

Chassis Dimensions: 330 * 270 * 115mm (LWH), left-opening door structure
Password Login: Prevents unauthorized operation by unrelated personnel

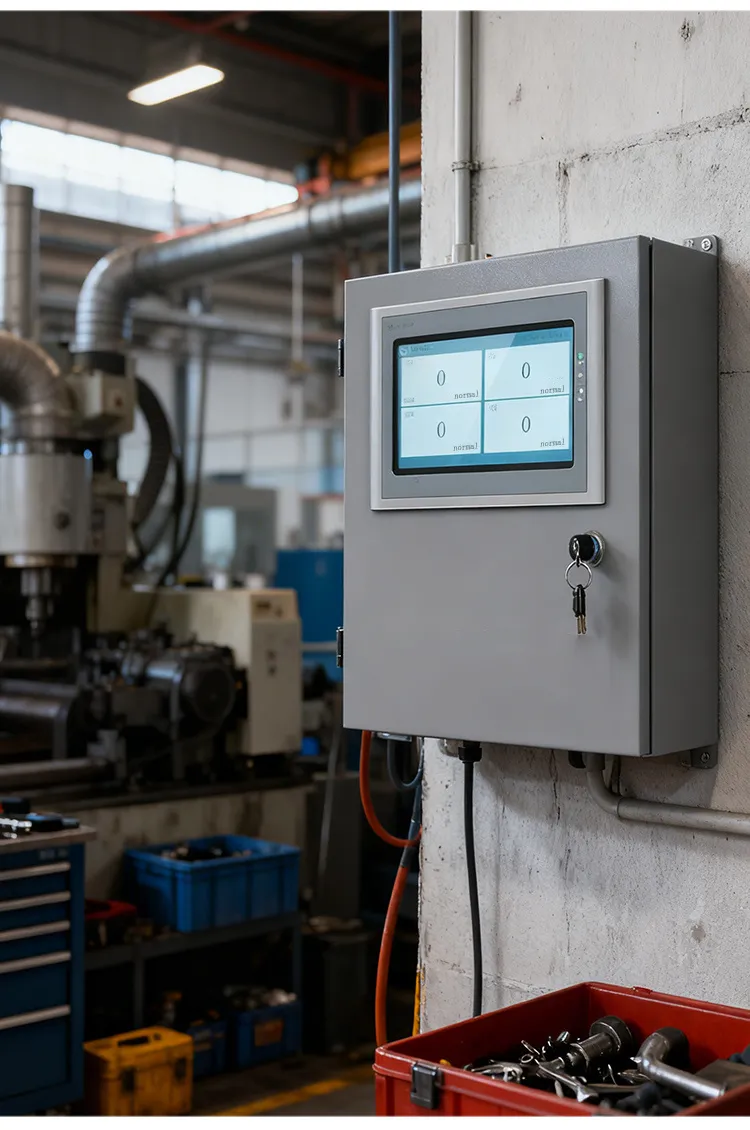

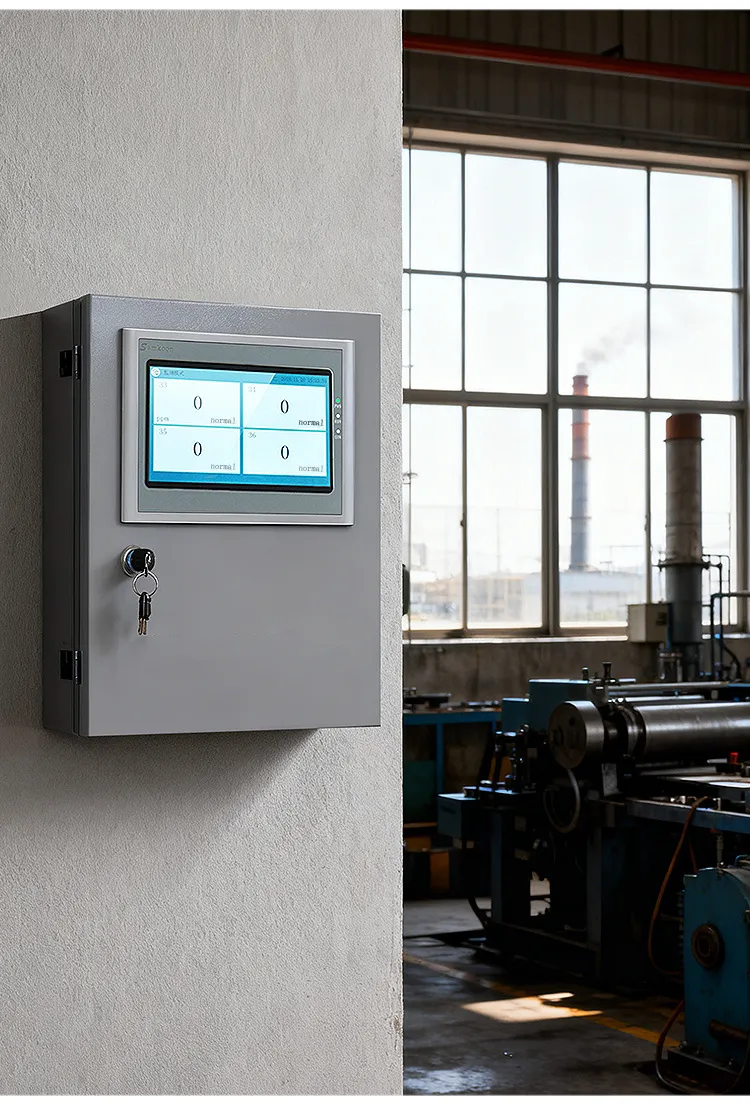

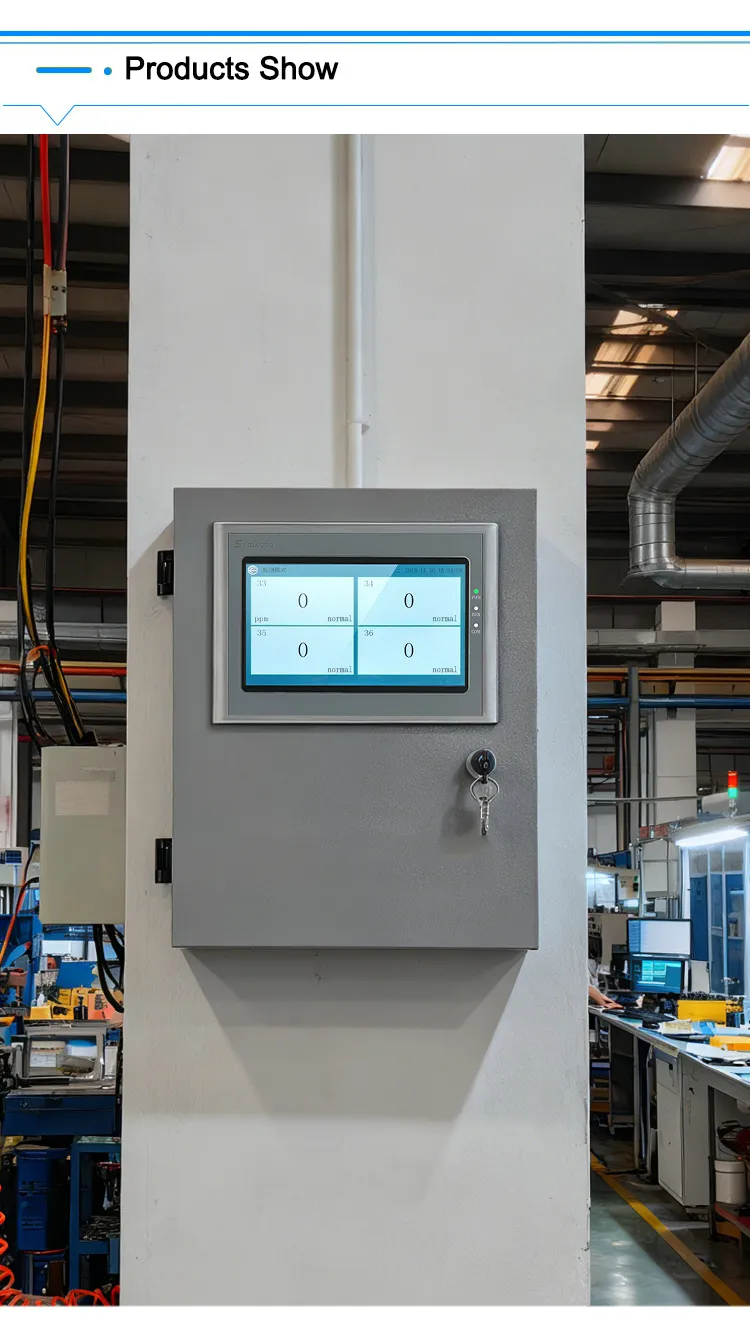

Installation Mode: Wall-mounted
Industrial Management Control Host
Connectable Sensors: Bus system (485) 32 sensors
Point-to-point system current output (4-20mA) 16 sensors
Display: 7-inch LCD touch display screen
Signals: 4-20mA, RS485 (Standard Modbus RTU Protocol)
Features:
Equipped with PLC control system
Historical data storage and recording
Historical alarm records
Built-in buzzer (external sound and light alarm can be connected)
Free switching between Chinese and English
Data storage mode: USB drive storage
Industrial Touch Management Host: This management host adopts a 7-inch 260K true-color display and a four-wire resistive touch panel, providing accurate touch precision, durability, and a long touch lifespan. It is also equipped with a high-performance Cortex M4 processor, with a main frequency of up to 180MHz. The data storage mode is USB drive storage, offering large storage capacity and facilitating later data analysis.
Measurement Units: ppm, ppb, %LEL, %VOL, mg/m³, µg/m³, etc.
Output Contacts: 4 normally open contacts, contact capacity 30V/3A or 250V/3A, relay module expandable
Temperature: -20~50°C, Humidity: 0~95% RH non-condensing
Input Power: AC220V
Output Power: DC24V/2A
Power Consumption: Less than 7W
Alarm Mode: Buzzer alarm and alarm information stored to USB drive
Chassis Dimensions: 330 * 270 * 115mm (LWH), left-opening door structure
Password Login: Prevents unauthorized operation by unrelated personnel
Installation Mode: Wall-mounted
