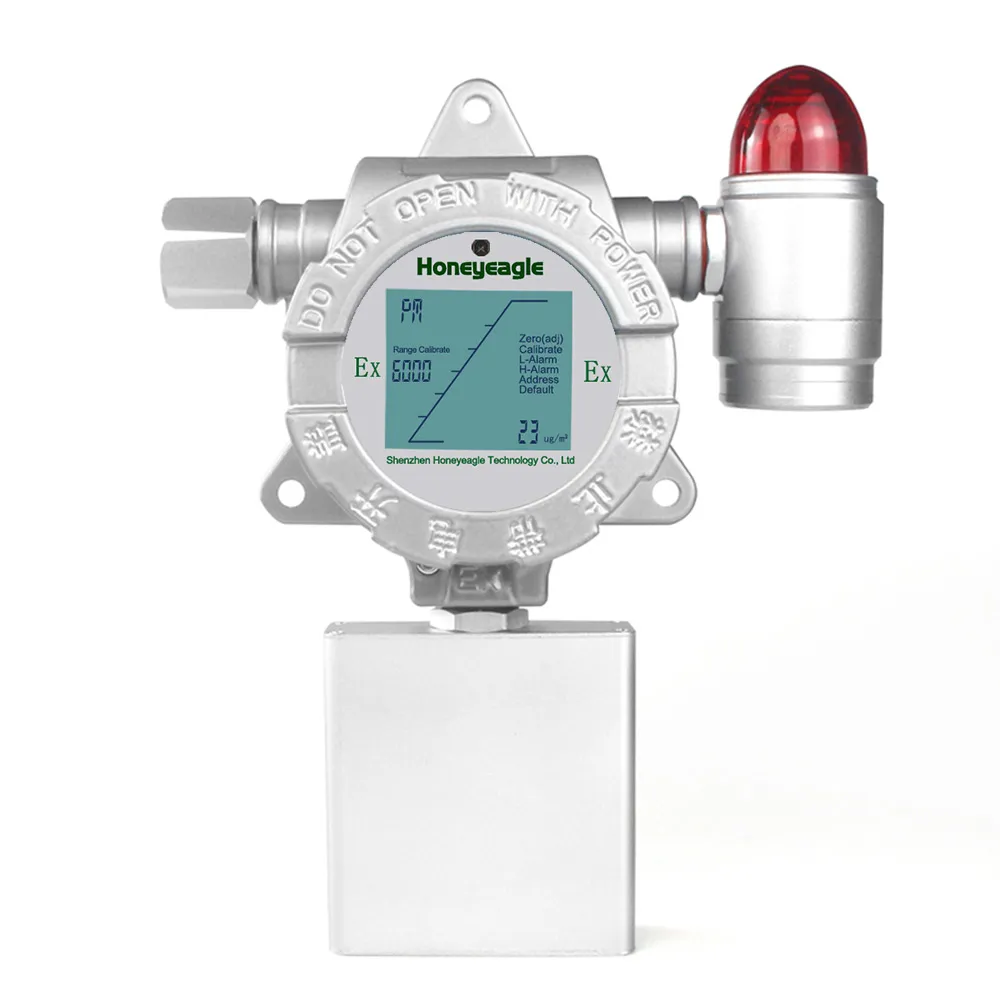

Industrial Fixed Dust Concentration Detector PM Sensor
Model: HNAG1000-PM
Detection: Dust PM
Detection Principle: Laser Scattering
Detection range: 0-20、30,100,1000mg/m3
Previous: No more data
Product Description
High-Performance Fixed Dust Detector for Industrial Safety
The HNAG1000-PM online fixed dust concentration detector is engineered for real-time, highly accurate PM monitoring in various demanding environments. Utilizing advanced laser scattering sensor technology and microcontroller processing, this device delivers fast response times, high measurement accuracy, and outstanding stability. Backed by over a decade of manufacturing expertise, this detector is fully compatible with PLC, DCS, and other control systems to ensure comprehensive site safety.
Key Features & Technical Advantages

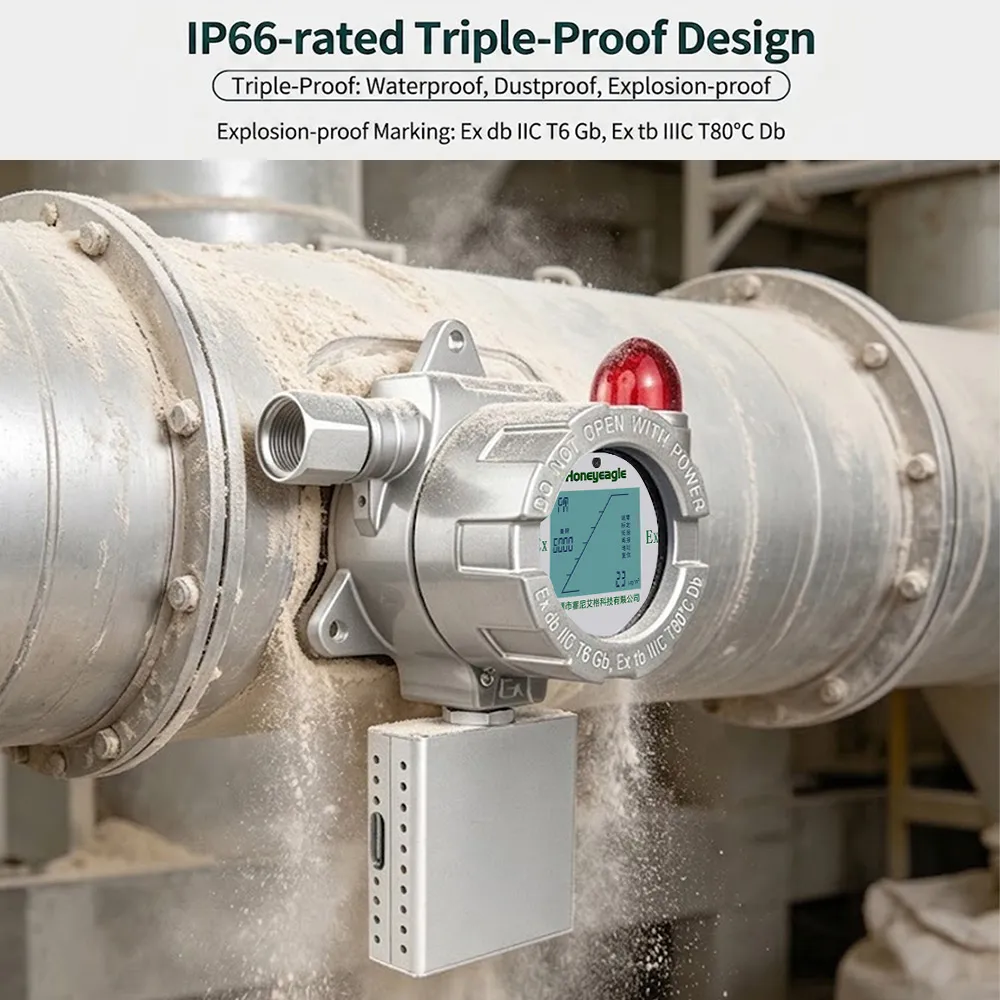

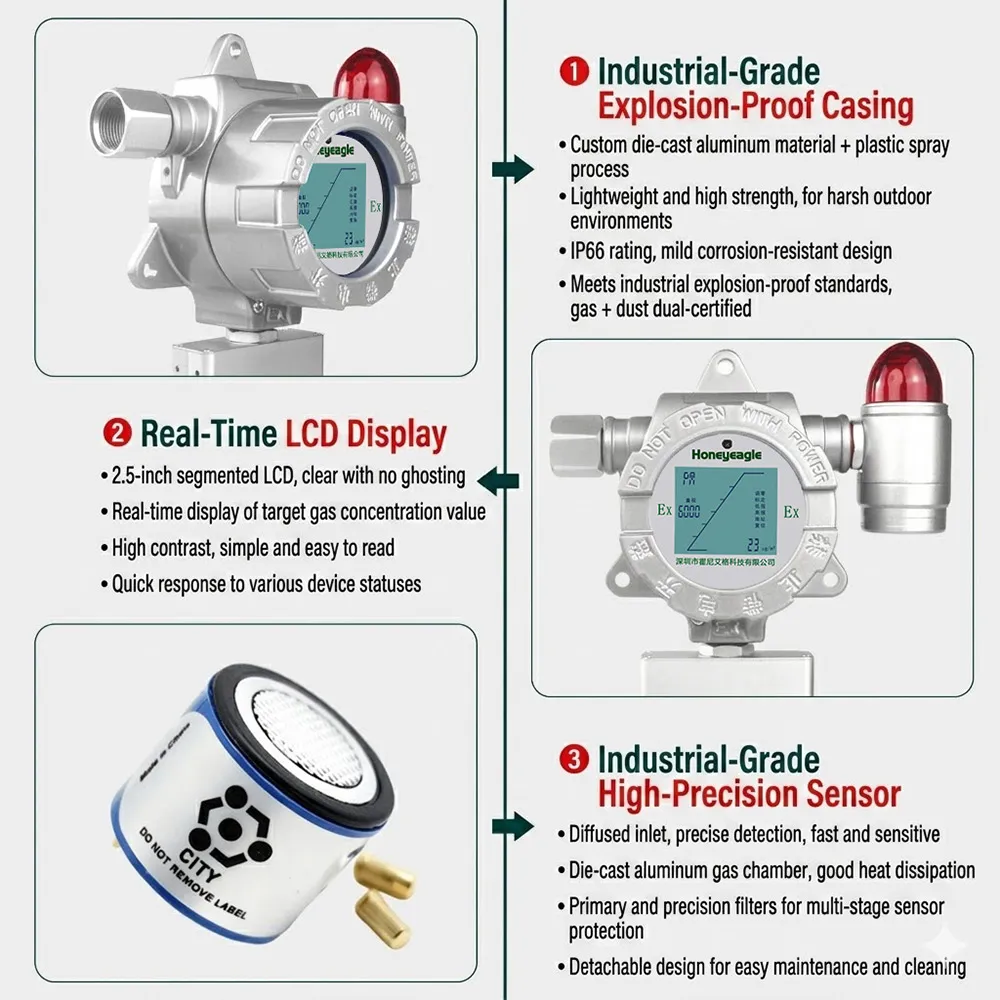

Industrial-Grade Explosion-Proof Casing
Designed for harsh outdoor and industrial settings, the detector features a custom die-cast aluminum casing with an IP66 rating, offering robust waterproof and dustproof capabilities. It strictly meets atex ExdIICT6 explosion-proof standards, providing reliable dual-certification for gas and dust environments.
High-Precision Sensor & Real-Time LCD
Equipped with an industrial-grade precision sensor featuring a diffused inlet for fast and sensitive detection. The integrated 2.5-inch high-contrast LCD screen displays real-time target gas concentration values, temperature, and humidity clearly without ghosting.

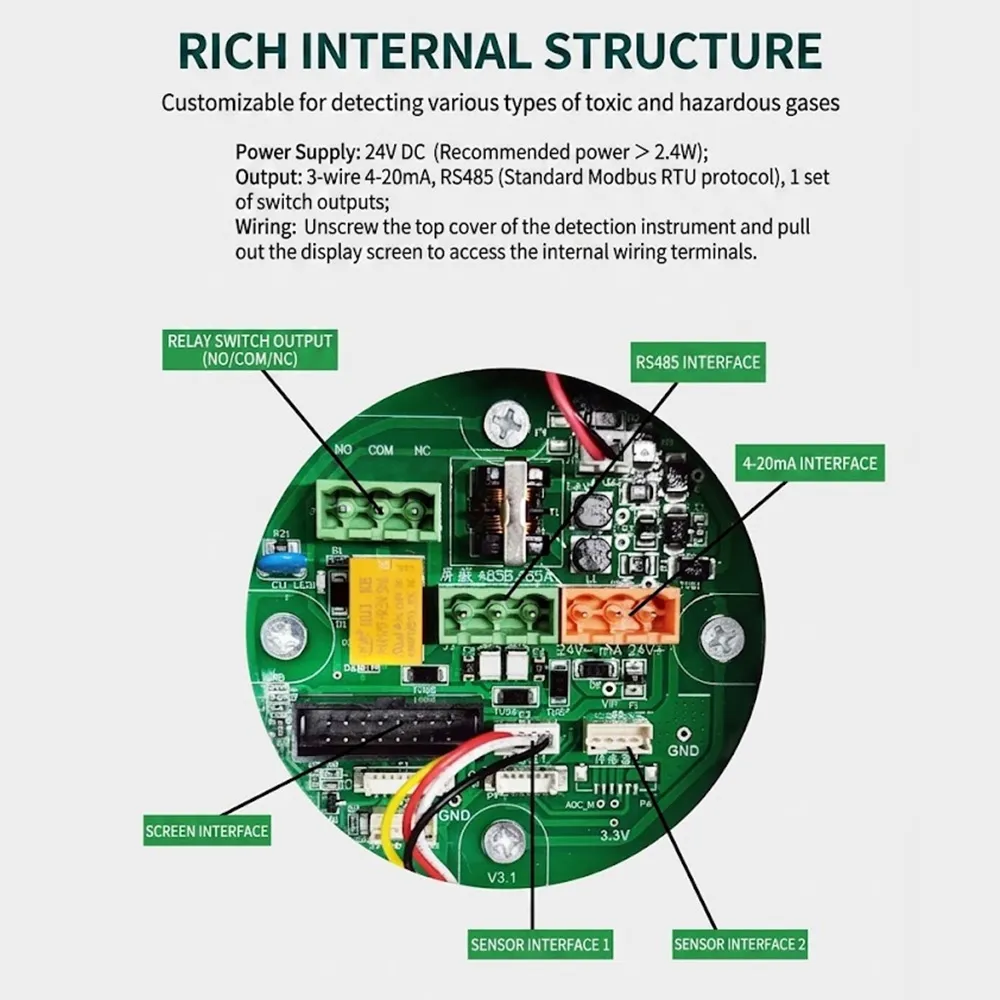

Rich Internal Structure & Multiple Outputs
To meet complex project requirements, the internal wiring is highly customizable. Standard outputs include standard RS485 (Modbus RTU protocol) and a 12-bit precision 4-20mA signal capable of 1km transmission. It also includes one set of passive relay contact outputs to easily drive external fans, solenoid valves, or high-power equipment.

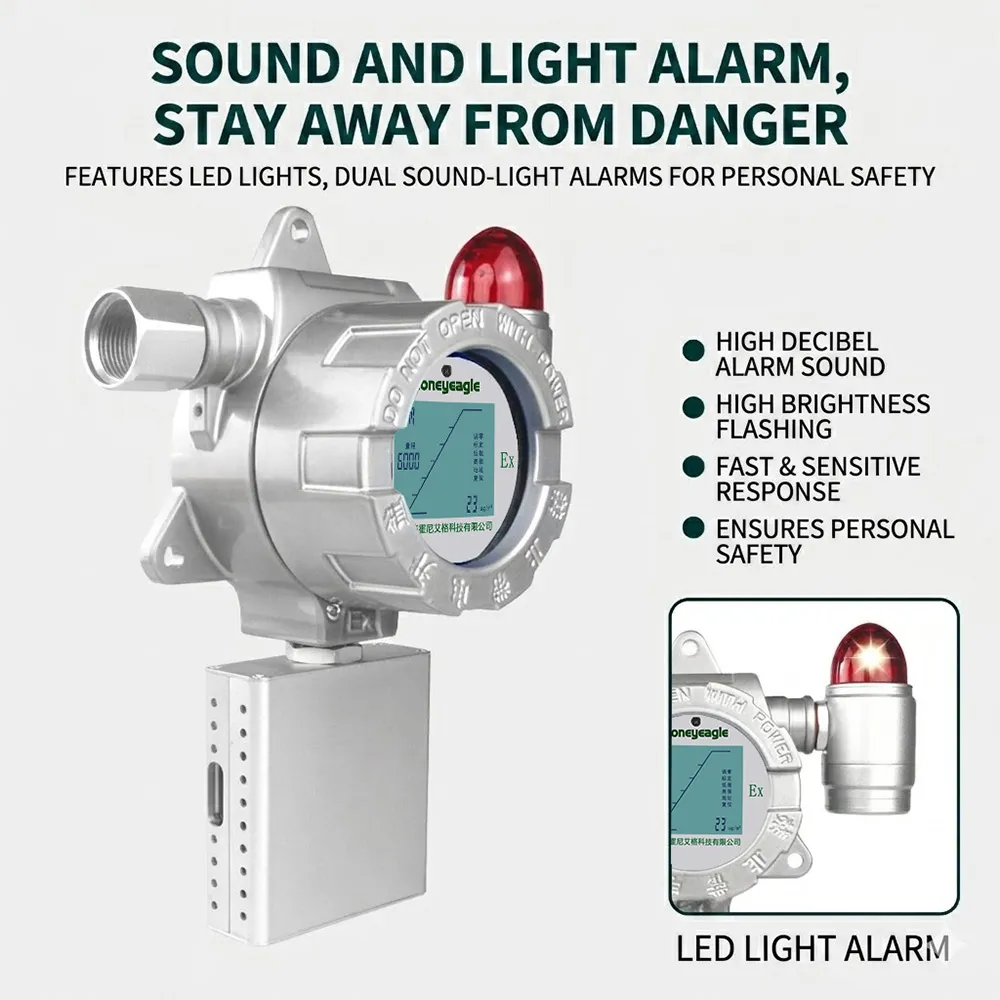

Dual Sound and Light Alarm System
Personal safety is paramount. This unit supports standard two-level alarms (optional three-level) featuring high-decibel sound and high-brightness LED flashing. The fast-response alarm system ensures that personnel stay away from danger immediately upon detecting hazardous dust levels.

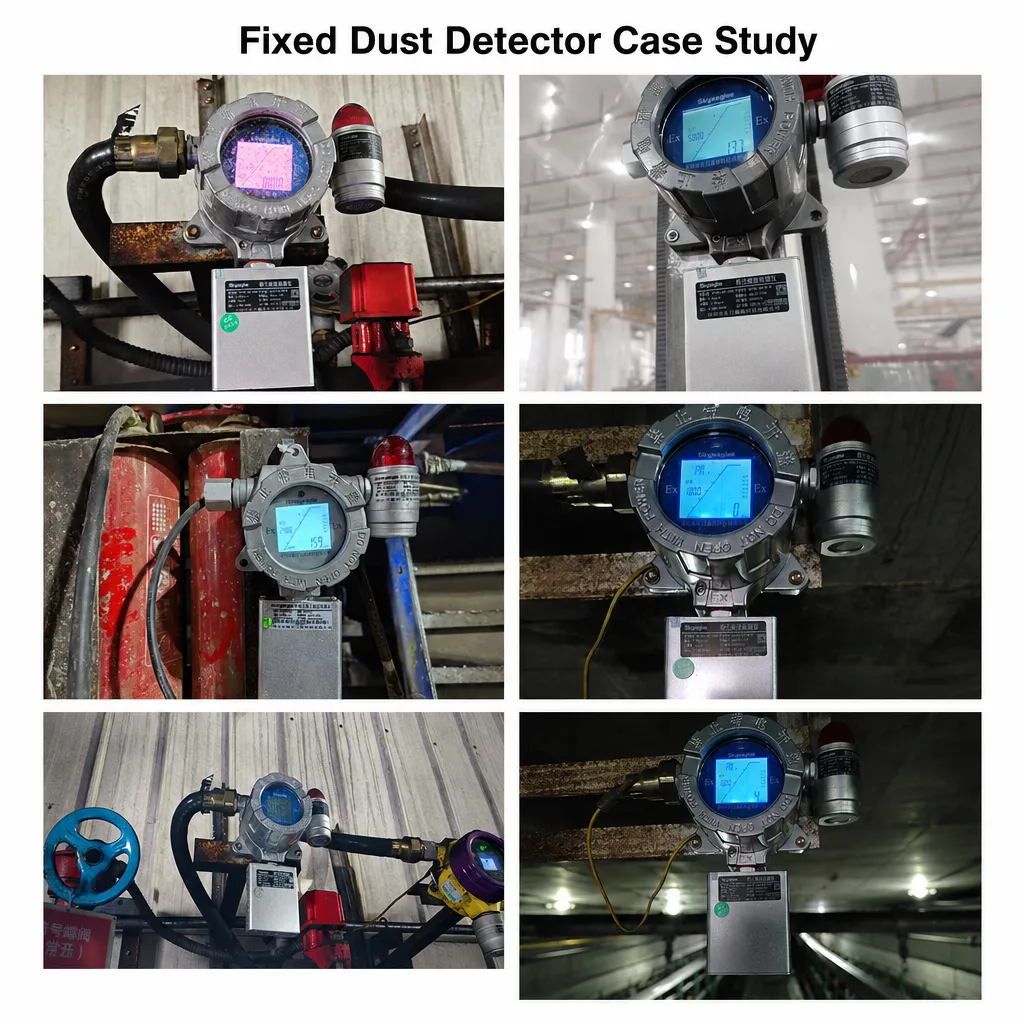

Typical Applications & Installation Examples
The HNAG1000-PM is widely utilized across diverse sectors, including petrochemicals, smelting plants, coal plants, thermal power plants, environmental monitoring, sewage treatment, and underground tunnel construction. The device supports multiple installation methods: wall-mounted, pipeline-mounted, ceiling-mounted, and bracket-mounted, providing maximum flexibility for your technical team.
Frequently Asked Questions (FAQ)
Q1: What is the lifespan of the dust sensor?
A1: Under normal operating conditions, the high-precision laser scattering sensor has an expected service life of 3 to 5 years.
Q2: Does it support wireless data transmission?
A2: Yes, wireless transmission is optional. It can be equipped with built-in LORA or ZigBee modules for short-range transmission, or external GPRS/4G modules to upload data directly to cloud platforms for remote PC and mobile viewing.
Q3: How do I operate the device in an explosion-proof area?
A3: The detector comes standard with an infrared remote control, allowing operators to adjust settings, calibrate, and mute alarms safely without opening the cover in hazardous locations.
Q4: What is the operating temperature range?
A4: The device is built to withstand extreme environments, operating reliably in temperatures ranging from -30℃ to 50℃ and humidity levels up to 95% RH.
