Industrial Fixed Carbon Monoxide (CO) Gas Analyzer IP66
Product Name:Industrial Fixed Carbon Monoxide (CO) Analyzer
Measured Gas:Carbon Monoxide (CO)
Material:Stainless Steel Shell
Signal Output:4-20mA signal/RS485 signal
Product Description
Product Overview: Reliable Continuous CO Monitoring System
The online combustible gas concentration detector HNAG1000 is suitable for real-time and accurate detection of gas concentration and leakage in various environments. It uses imported catalytic combustion, infrared sensor and microcontroller technology. It has fast response speed and measurement accuracy. The explosion-proof wiring method is suitable for various dangerous places, and is compatible with various control alarms, PLC, DCS and other control systems.
Core Advantages of the Wall-Mounted Toxic Gas Leak Alarm

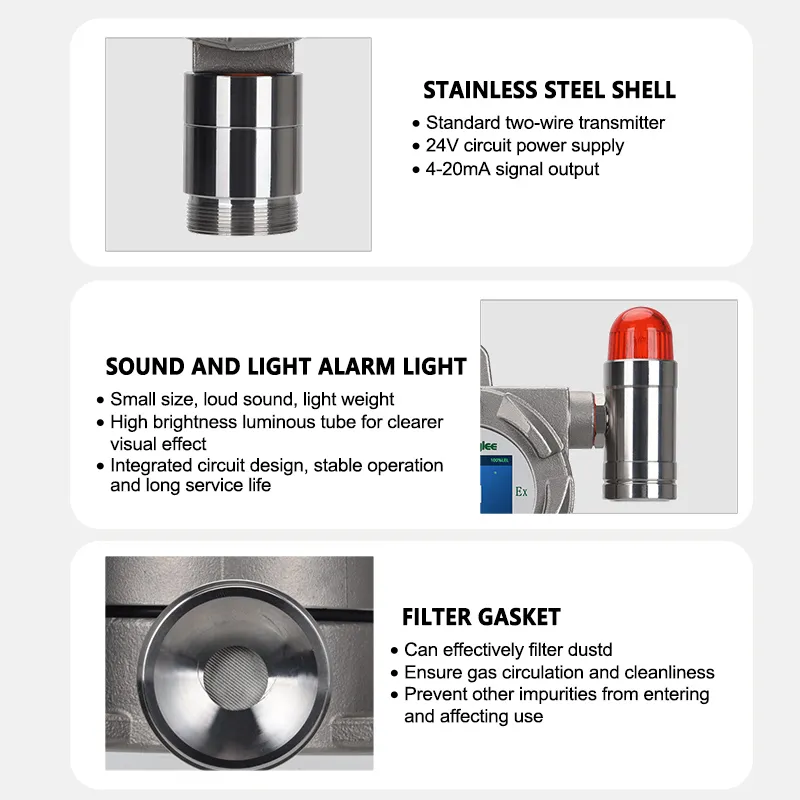

Explosion-Proof & IP66 Stainless Steel Design
 |
Intrinsically safe circuit design, explosion-proof certification, secondary lightning protection, anti-static, lightning protection and anti-static capabilities exceed national standards, and can withstand high-intensity pulse surge current impacts. Designed with an IP66 rating to protect against splashing water and short periods of rain, making it ideal for harsh industrial environments. The robust design aligns with rigorous international industrial standards, including CE, RoHS, and ATEX certifications.

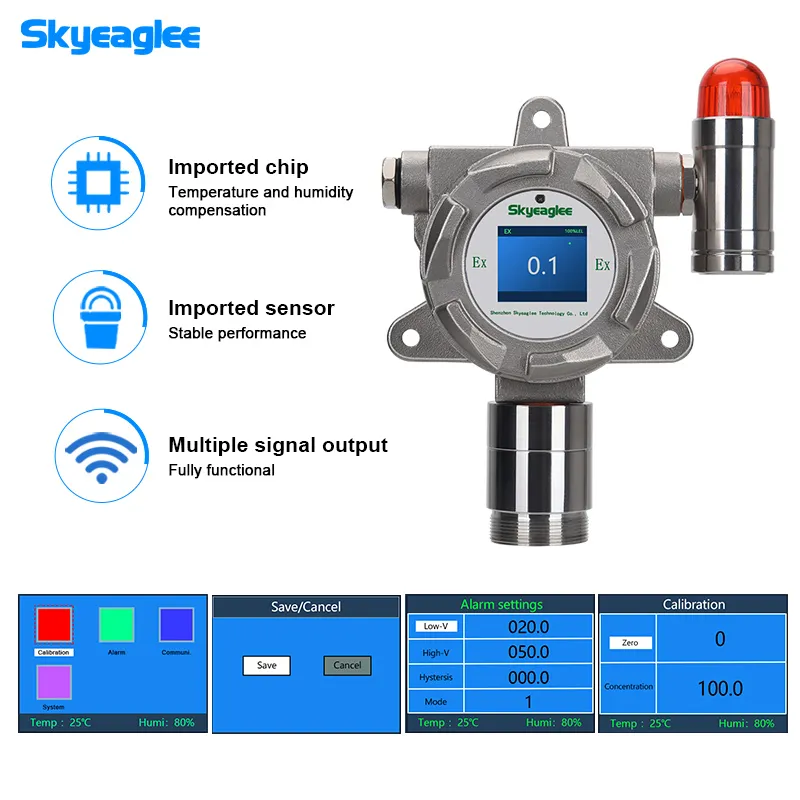

Imported Sensor Technology & Accurate Detection
 |
Automatically tracks zero point to prevent drift, temperature compensation, multi-level calibration, and can comply with national standards and local and provincial metrology bureau standards in various regions.

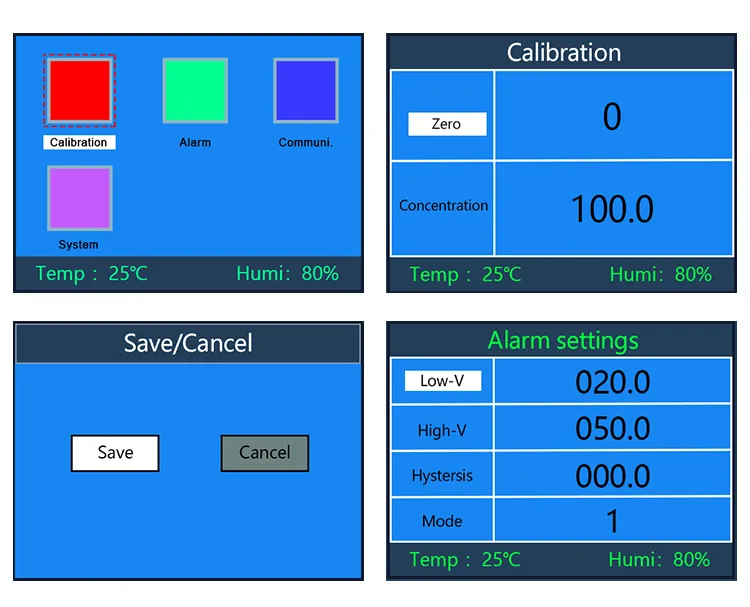

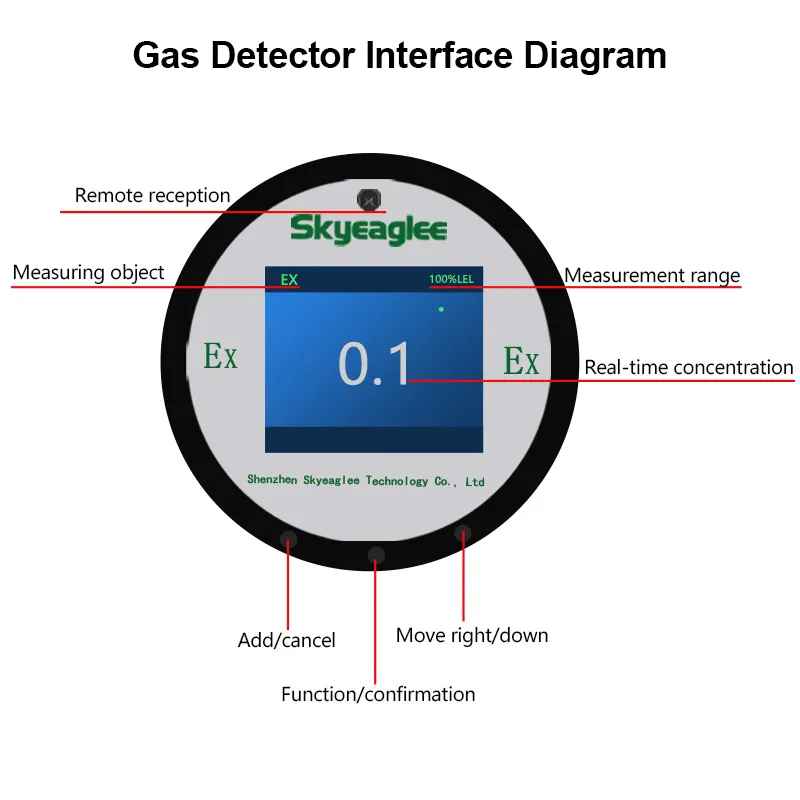

HD LCD Display & Remote Infrared Operation
 |
 |
2.5-inch high-definition color screen (TF) displays real-time concentration, temperature, humidity. The standard infrared remote control enables operation without opening the cover in dangerous situations. The instrument has a total of 3 buttons, namely "Add/Cancel", "Function/Confirm", "Move Right/Move Down"
Technical Specifications: 4-20mA RS485 Gas Sensor Data
 |
Model: HNAG1000-CO-C
Measured Gas: CO
Testing Principle: Infrared NDIR,Electrochemistry.
Range: 0-50%VOL,0-100%VOL,0-1000PPM,0-40000PPM.
Resolution: 0.01%VOL,1PPM.
Precision: ±2%F.S
Response Time: T90<10S
Working Temp / Humidity: -20 ～ 50℃ / 0-95%RH
Working Voltage: DC5V±1%/DC24±1%

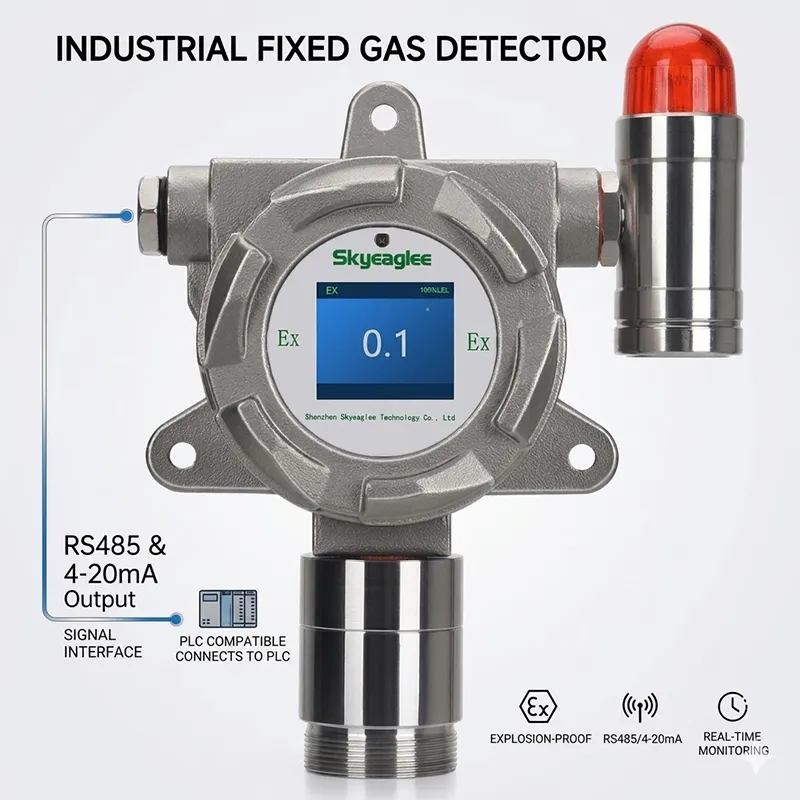

Diverse Signal Output & PLC/DCS Integration

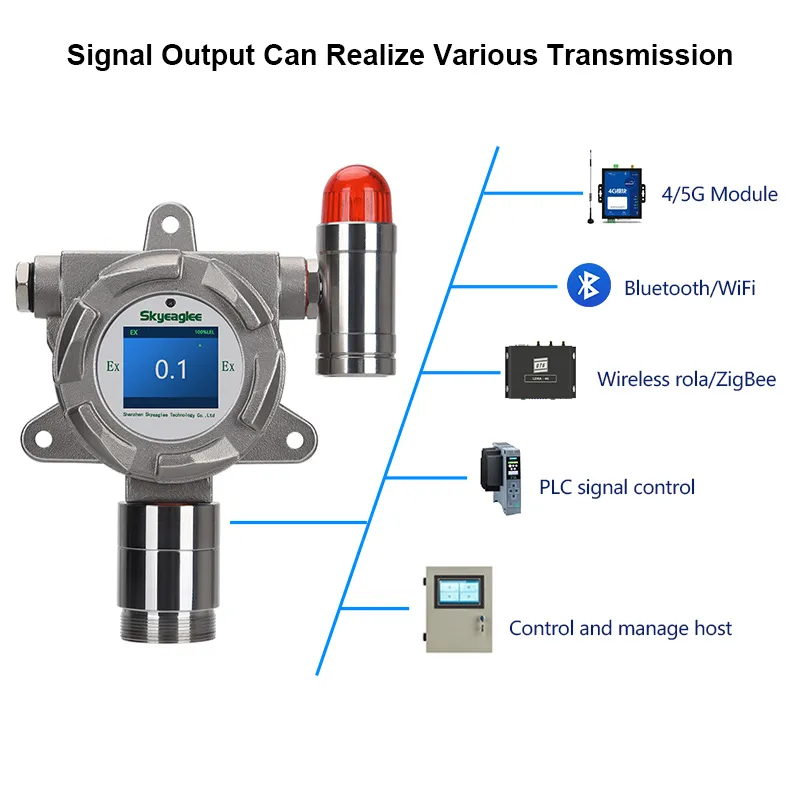

4-20mA, RS485 & Wireless Transmission Capabilities
 |
 |

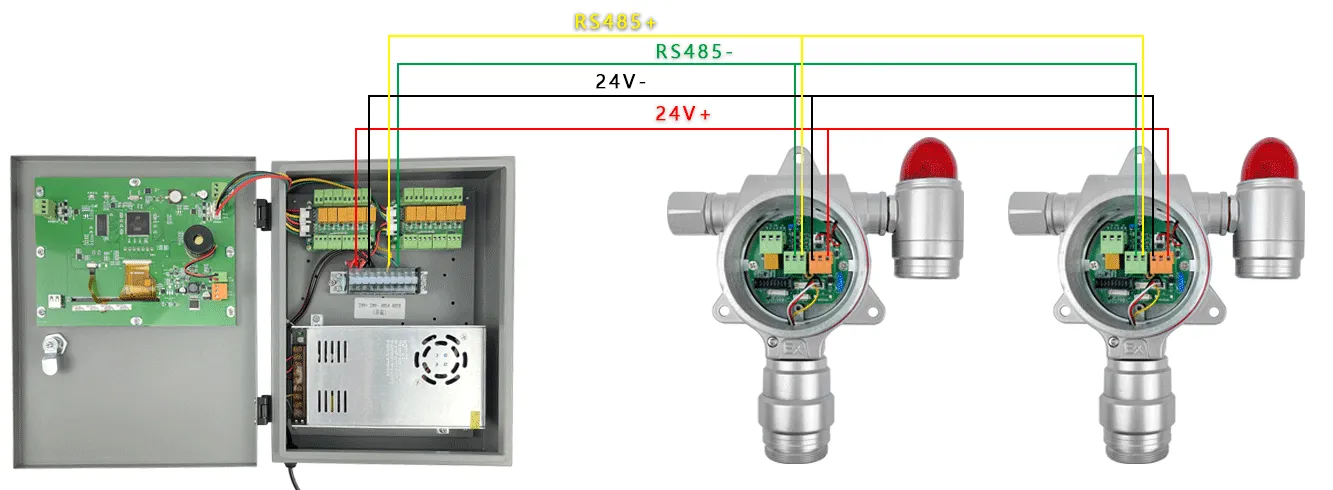

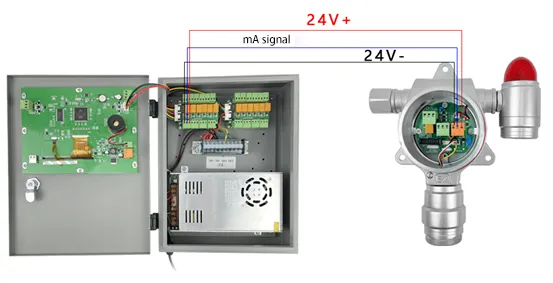

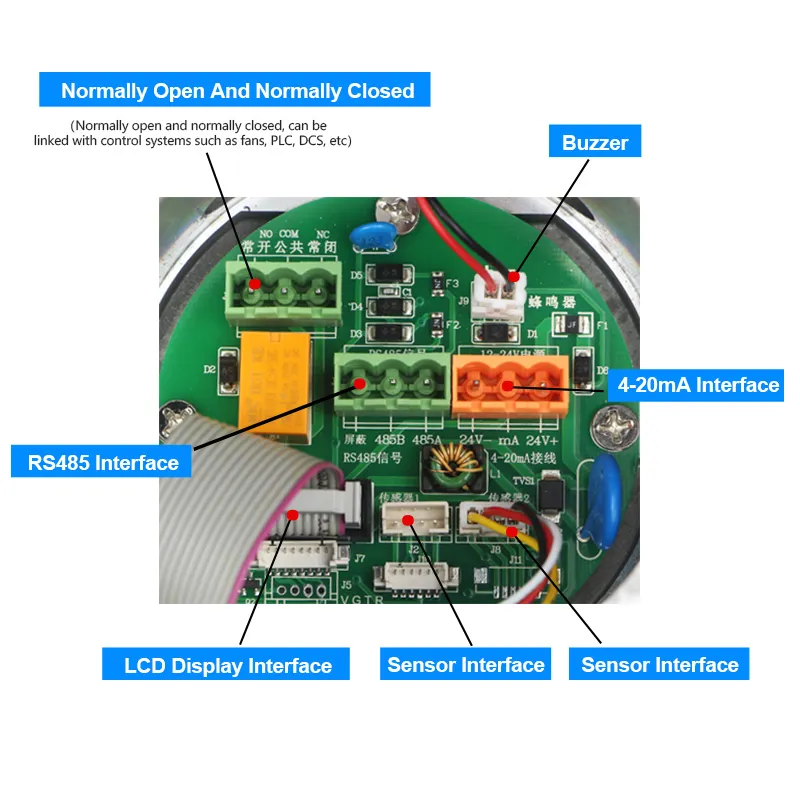

Standard bus RS485 and 4~20mA standard signals are output simultaneously, 1 set of relay switching output, optional frequency output 200-1000Hz, 1~5V output, wireless transmission (10-50 kilometers or unlimited distance). It can directly drive solenoid valves, fans, alarms and other equipment, and can also drive high-power equipment by driving intermediate relays.
 |
 |

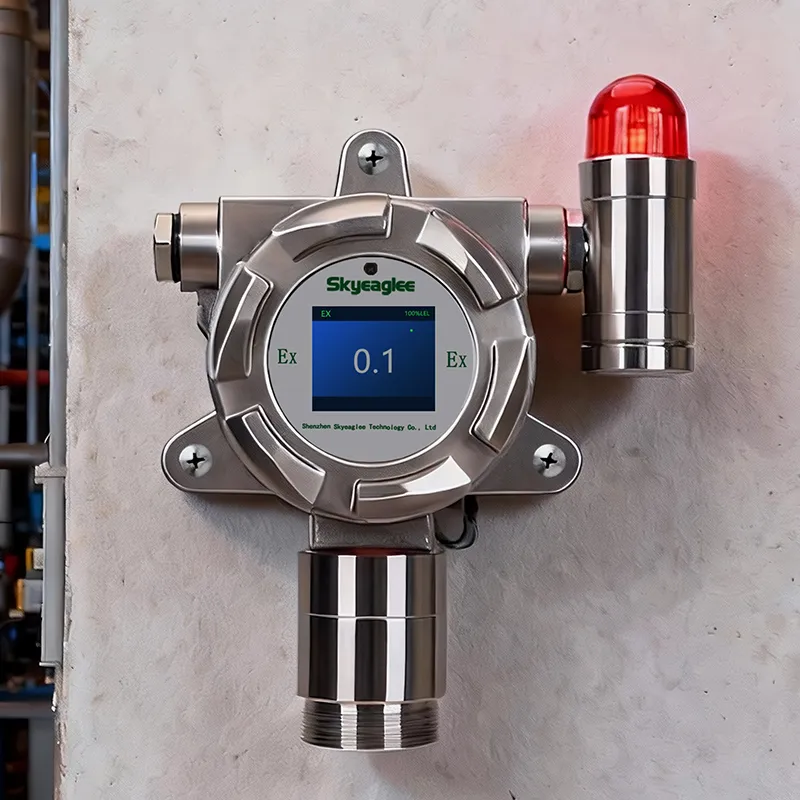

Installation Guidelines for Industrial Environments
 |
According to the specific gravity and wind direction of the gas, the detector should be installed within one meter from the possible gas leakage location, so that the actual response speed of the detector is relatively fast. The detector should be installed at a height greater than 30 cm from the ground to prevent water from splashing in. The detector should be installed with the probe facing downwards. If it is installed outdoors, a rain shield should be installed above the detector.
👉 Click for Free Consultation：Free Consultation For More Information
