Portable pump suction 4 gases concentration detector

Product Description of Portable Pump Suction Gas Concentration Detector

Portable Pumping Gas Detector HNAG920-4H is suitable for real-time and accurate detection of gas concentration and leakage in various environments, with advantages such as fast response, high measurement accuracy, excellent stability, and repeatability. It supports both pumping and diffusion modes in one unit, can be expanded to detect up to 5 gases simultaneously, and supports 4G/WiFi/Bluetooth/LoRa wireless transmission modes. The device is equipped with a built-in 2400mAh lithium battery.

Product parameters of Portable pump suction gas concentration detector

Product features of Portable pump suction 4  gases concentration detector

● Equipped with a 32-bit microprocessor and high-speed, high-precision processing circuitry for fast and accurate measurements

● Features an external USB port for data export and deletion via USB cable connection to a computer

● Supports up to 5 different sensors for flexible detection

● Built-in buttons for easy parameter viewing and configuration

● Allows unit switching (e.g., ppm ↔ mg/m³) through coefficient adjustment

● Customizable historical data storage intervals

● Supports Chinese/English language display switching

● Fall alarm / one-touch emergency alarm function

● 180° auto-rotating screen

● Temperature & humidity compensation

● PC+TPU (rubber overmolding process) for impact resistance

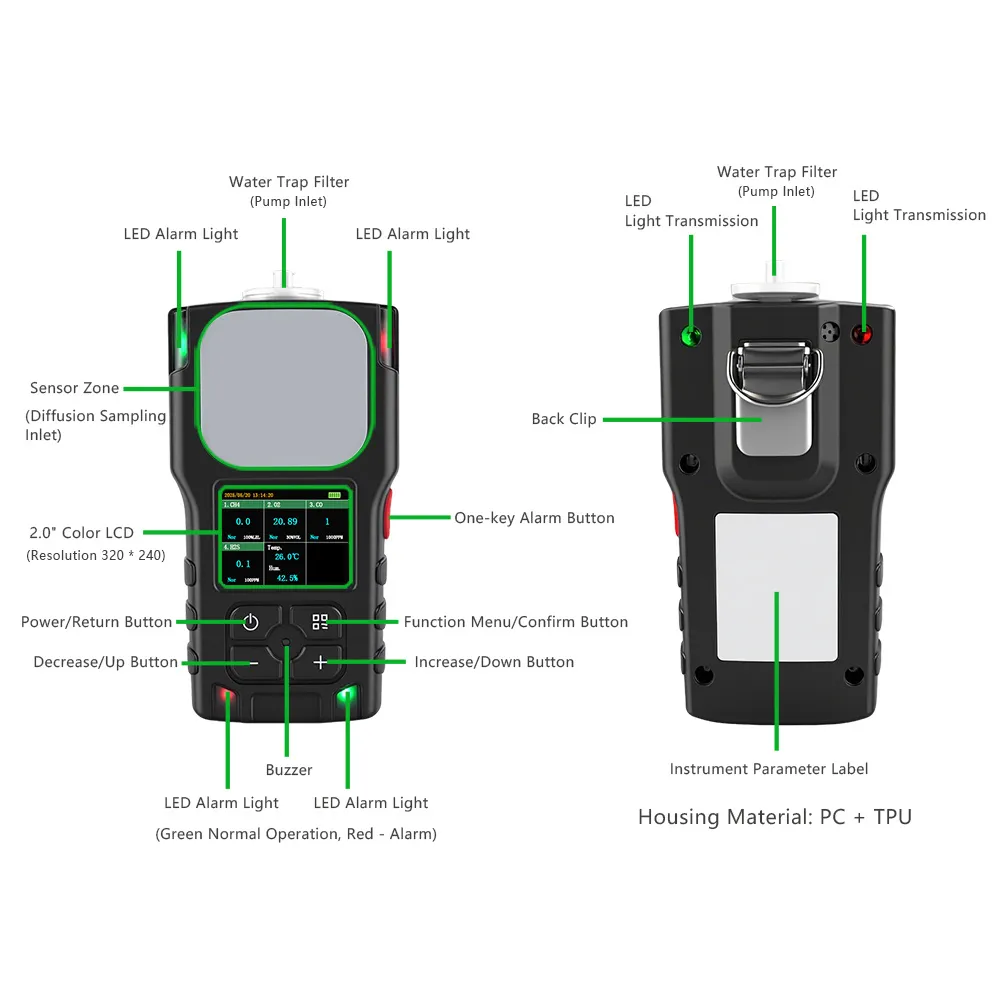

Instrument illustration

Application scenarios

Petroleum and petrochemical, chemical plants, smelters, steel mills, coal mines, thermal power plants, medical research, pharmaceutical production workshops, tobacco companies, environmental monitoring, school research, building construction, fire alarm, sewage treatment, industrial gas process control, boiler rooms, garbage treatment plants, tunnel construction, oil pipelines, gas stations, underground gas pipeline maintenance, indoor air quality testing, hazardous materials Site safety protection, aerospace, military equipment monitoring, etc.

Precautions for Use

● When charging the detector, please do so in a safe location and use a compliant charger with 5V/2A or higher.

● For first-time use, fully charge the battery before operation.

● During daily use, avoid exposing the detector to gas concentrations beyond its measurement range to prevent irreversible damage.

● Do not use the detector in harsh environments with extreme temperatures, high pressure, or excessive humidity. If ambient humidity is high, perform dehumidification filtration before detection.

● If sensor failure occurs, contact the manufacturer’s after-sales service.

● Under normal usage, the sensor's effective lifespan is 24–36 months. During this period, perform calibration checks every 6 months or 1 year (depending on the working environment) to ensure accurate gas monitoring. Sensors exceeding their lifespan or showing faults must be replaced.
