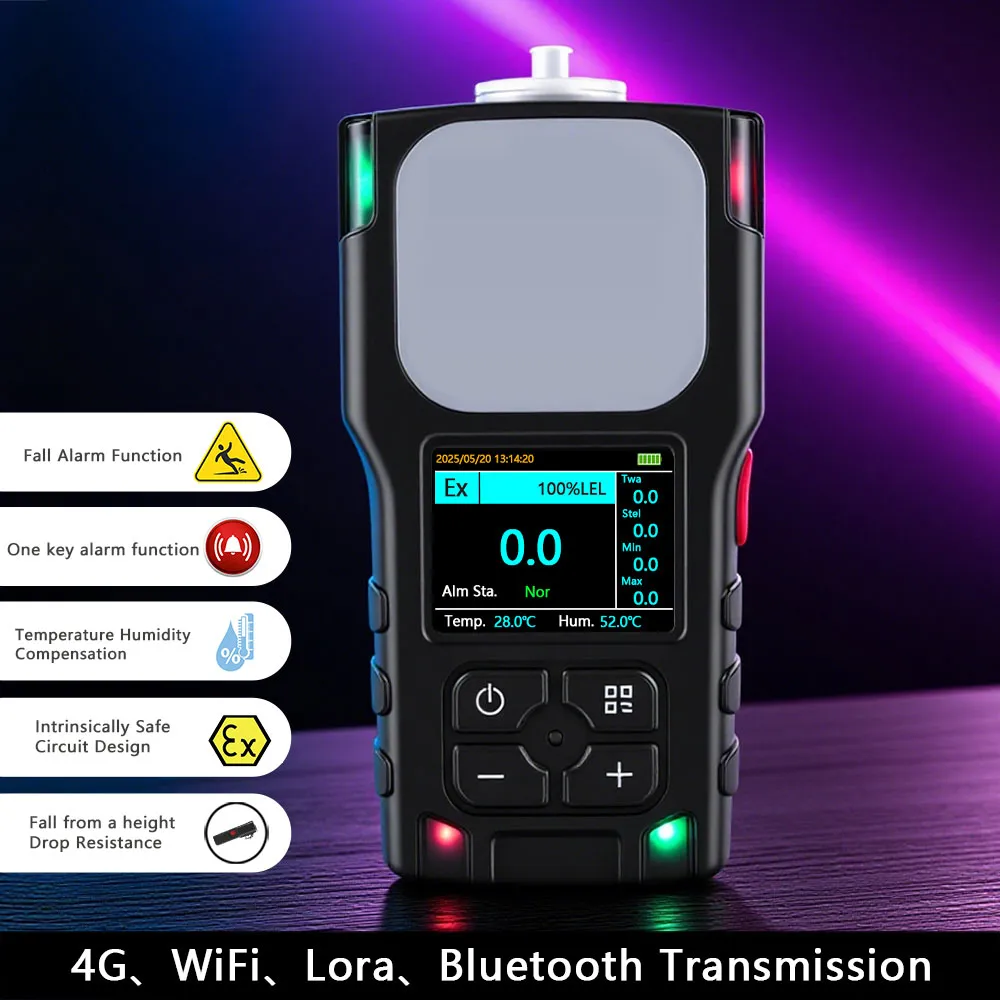

Portable phosphine gas detector
Model: HNAG920-PH3
Detection Principle: Electrochemistry
Gas: Phosphine (PH3)
Range: 0 to 10ppm ~ 0 to 3000ppm
Resolution: 0.01ppm, 0.1ppm, or 1ppm
Accuracy: ≤±2% F.S.
Product Description
● Equipped with a 32-bit microprocessor and high-speed, high-precision processing circuitry for fast and accurate measurements.

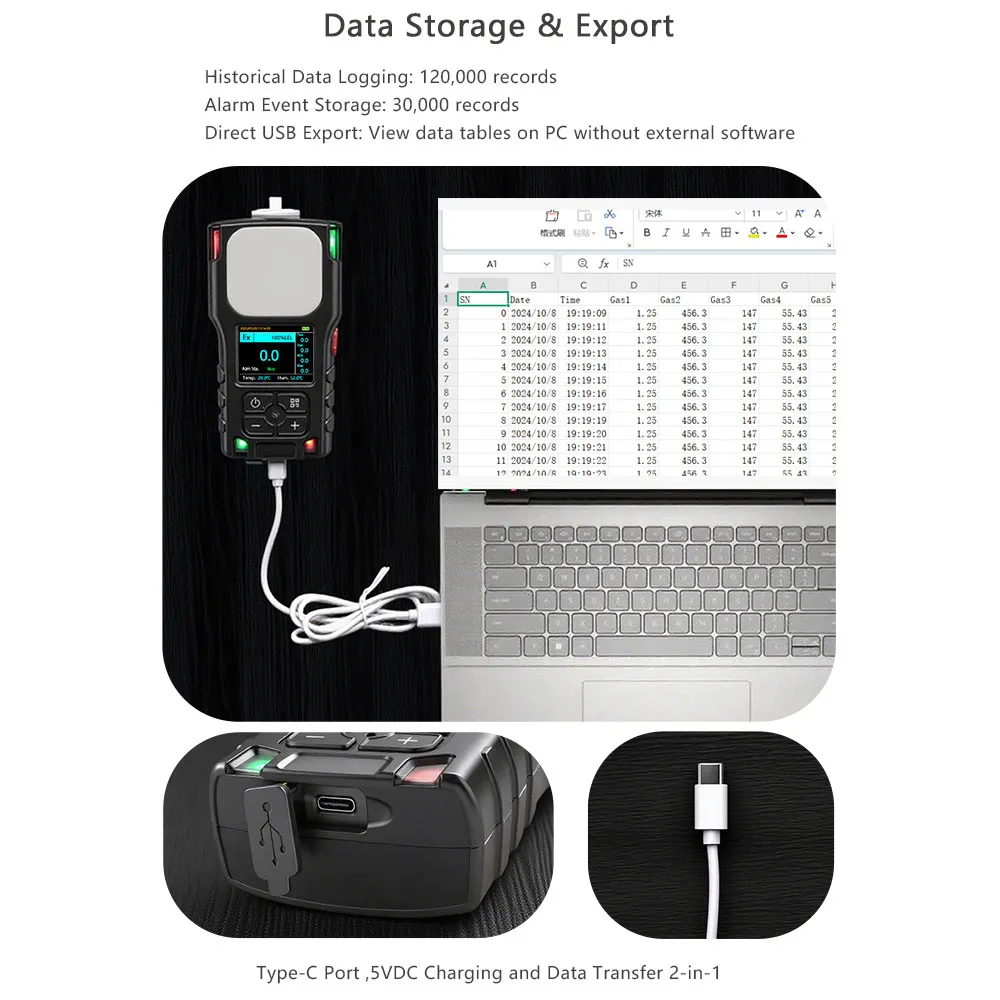

● Features an external USB port for data export and deletion via USB cable connection to a computer.
● Supports up to 5 different sensors for flexible detection.
● Built-in buttons for easy parameter viewing and configuration.
● Allows unit switching (e.g., ppm ↔ mg/m³) through coefficient adjustment.
● Customizable historical data storage intervals.
● Supports Chinese/English language display switching.
● Fall alarm / one-touch emergency alarm function.
● 180° auto-rotating screen.
● Temperature & humidity compensation.
● PC+TPU (rubber overmolding process) for impact resistance.
 |
 |
 |
 |
Portable Phosphine Gas Detector Q&A - Ensuring Safety in Mobile Work Environments
Built-in high-precision electrochemical sensor with multi-level audible, visual, and vibration alarms, specifically designed for portable applications to ensure accurate and reliable phosphine gas detection in mobile scenarios such as confined spaces and field operations.
Q: How can phosphine gas concentration be monitored in real-time during fumigation operations or in grain storage environments?
A: In mobile work scenarios such as fumigation operations, grain storage facilities, and chemical transportation, the risk of phosphine gas leakage is extremely high. Due to unfixed work locations and complex spatial environments, traditional fixed monitoring equipment cannot meet mobile protection needs. In these situations, a portable phosphine gas detector must be used for real-time, personal safety protection.
A professional portable phosphine detector typically offers the following core features to ensure your safety in mobile work environments:
Real-Time Precision Monitoring: Equipped with a high-sensitivity electrochemical phosphine sensor, it can detect PH3 concentrations in real-time, typically ranging from 0-20ppm or even wider, with data updated every second to ensure even minor leaks are detected promptly.
Multi-Level Alarm System: Features customizable alarm thresholds. When the detected phosphine gas concentration reaches preset dangerous levels (such as TWA time-weighted average or STEL short-term exposure limits), the device immediately activates high-decibel audible alarms, red flashing visual alarms, and strong vibration alarms, ensuring clear perception even in noisy environments or when wearing heavy protective gear.
Data Logging and Traceability: Portable devices usually come with data storage capabilities, recording months of detection data for subsequent accident analysis or compliance reviews.
Lightweight and Durable Design: The device is compact and can be clipped to collars, pockets, or safety belts for easy portability. With IP67 or higher protection ratings, it is dustproof and waterproof, suitable for harsh environments like fumigation tents, grain silos, and cargo ships.
How to Choose the Right Portable Phosphine Gas Monitor for Your Needs?
When selecting a phosphine gas detector, it is recommended to focus on the following parameters:
Sensor Type: Ensure it uses a dedicated PH3 electrochemical sensor to avoid cross-interference.
Range and Resolution: Choose an appropriate range based on your work environment (common ranges are 0-20ppm or 0-1000ppm).
Alarm Methods: Confirm the device features audible, visual, and vibration alarms.
