Portable Gas Pre-treatment Online Monitoring System
-
Model: HNAG6500-14H
-
Detection: O2, CO, CO2, NO, NO2, SO2, H2S, HCN, NH3, HCl, HF, TVOC, HC/CxHy
-
Detection Principle: Ultraviolet, infrared, thermal conductivity, electrochemical, and catalytic
-
Detection range: O2 (0-25% vol.), CO (0-1000 ppm), CO2 (0-20% vol., NDIR), NO (0-1000 ppm), NO2 (0-200 ppm), SO2 (0-1000 ppm), H2S (0-500 ppm), HCN (0-50 ppm), NH3 (0-100 ppm), HCl (0-100 ppm), HF (0-50 ppm), TVOC (0-100 ppm), HC/CxHy (0-1000 ppm)
Previous: No more data
Product Description

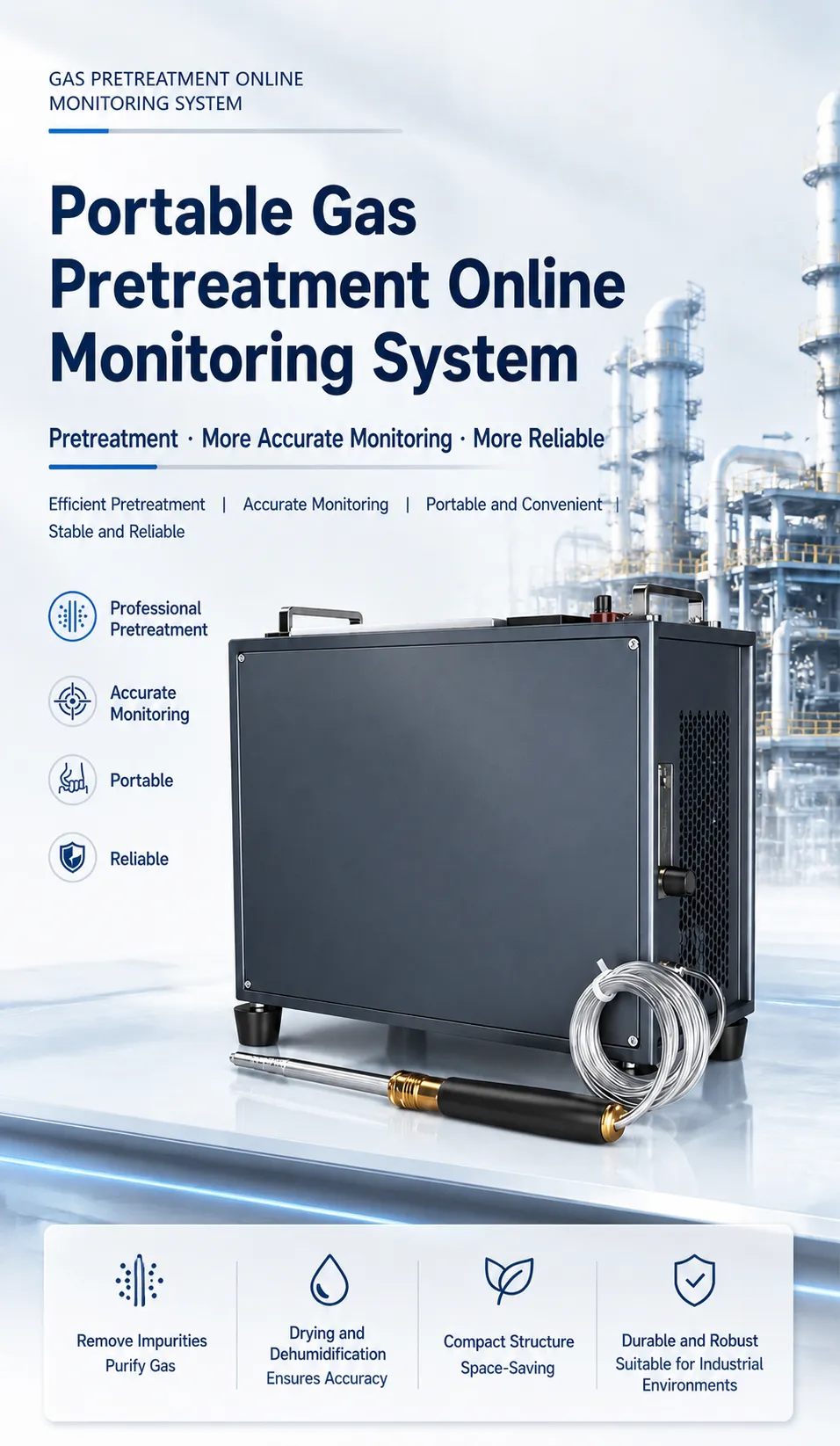

High-Precision Portable Gas Pre-treatment Online Monitoring System
The Portable Gas Pre-treatment Online Monitoring System is designed for the real-time and accurate detection of gas concentrations and leaks across various environments. The system is capable of simultaneously detecting 1 to 15 different gases, with the ability to be expanded to monitor over 200 gas types concurrently.
Advanced Multi-Gas Detection Technologies
Utilizing high-precision sensors, it delivers rapid response times (T90<10S) and a high measurement accuracy of ±2%F.S. Detection principles can be configured according to specific requirements, with options including Ultraviolet (UV), Infrared (IR), Thermal Conductivity (TCD), Electrochemical, and Catalytic technologies.

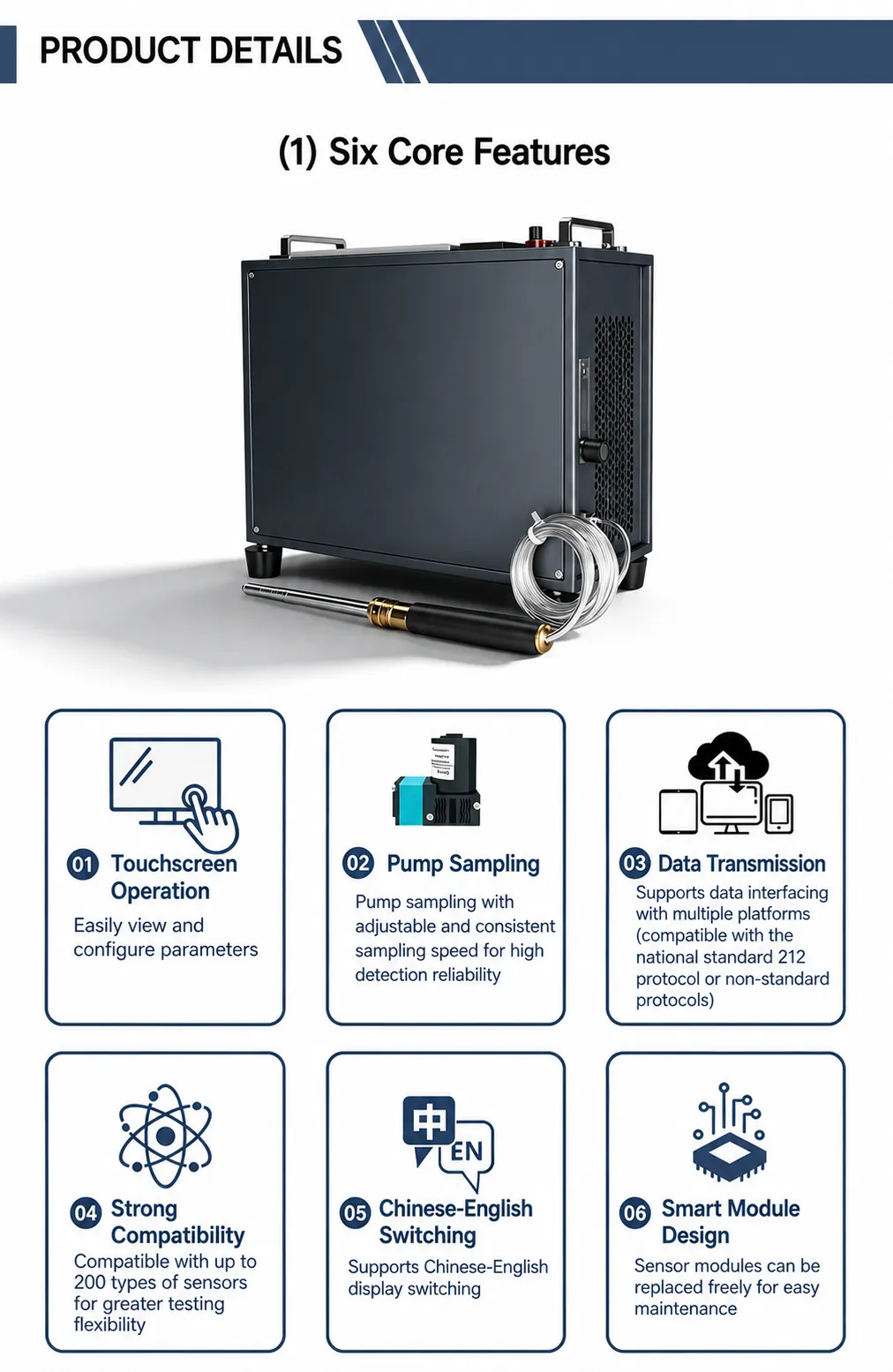

Powerful Pre-treatment and Smart Features
To ensure long-term reliable operation of the instrument, the pre-treatment function is equipped with an internal dehumidifying module to effectively reduce internal humidity, alongside drainage and a filter that efficiently traps dust and impurities. The smart module design allows sensor modules to be freely replaced for easy maintenance. Furthermore, multiple protection systems, including a built-in integrated heat sink, increase the heat dissipation area for rapid, even heat distribution.

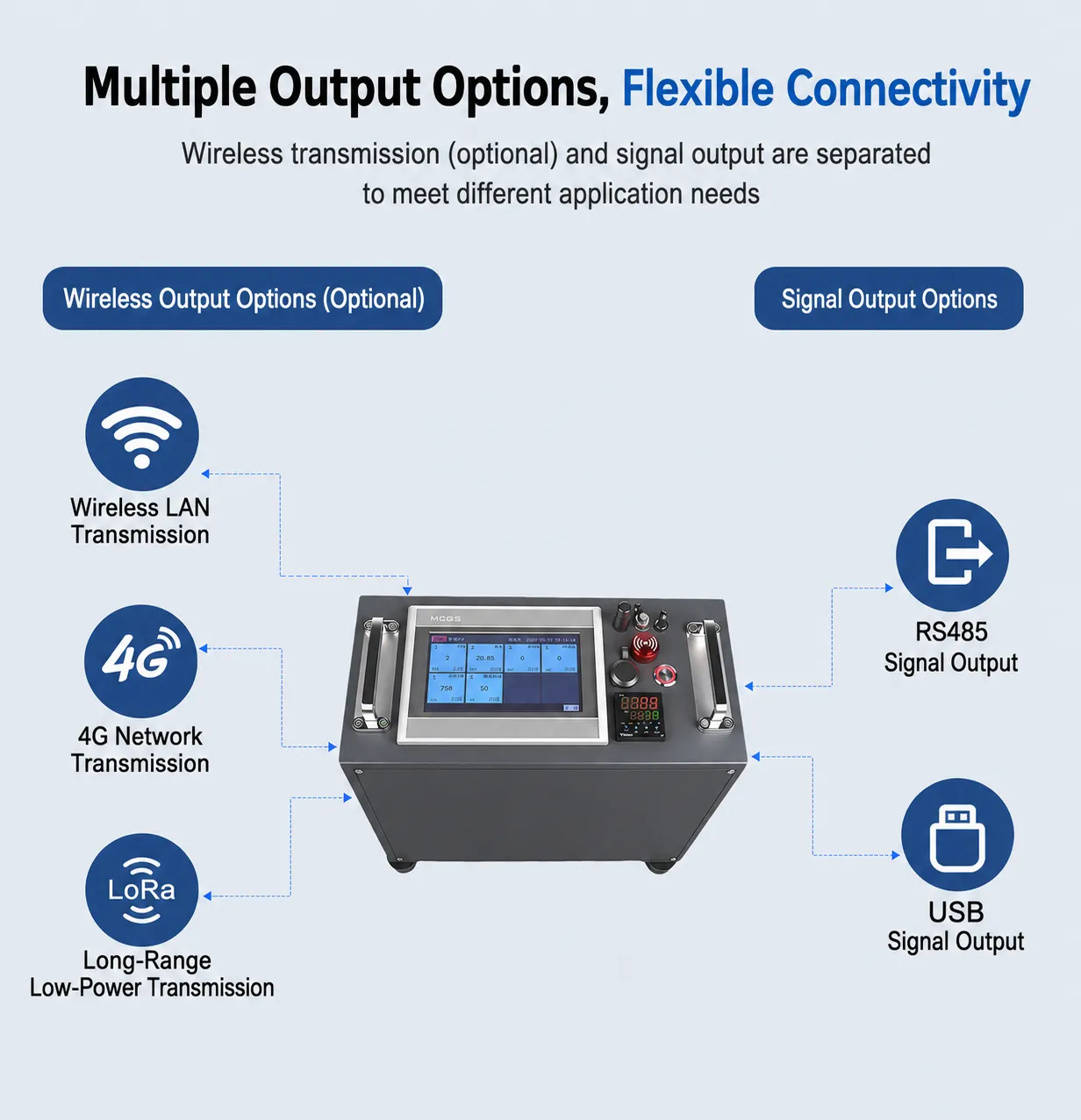

Flexible Data Transmission and Touchscreen Interface

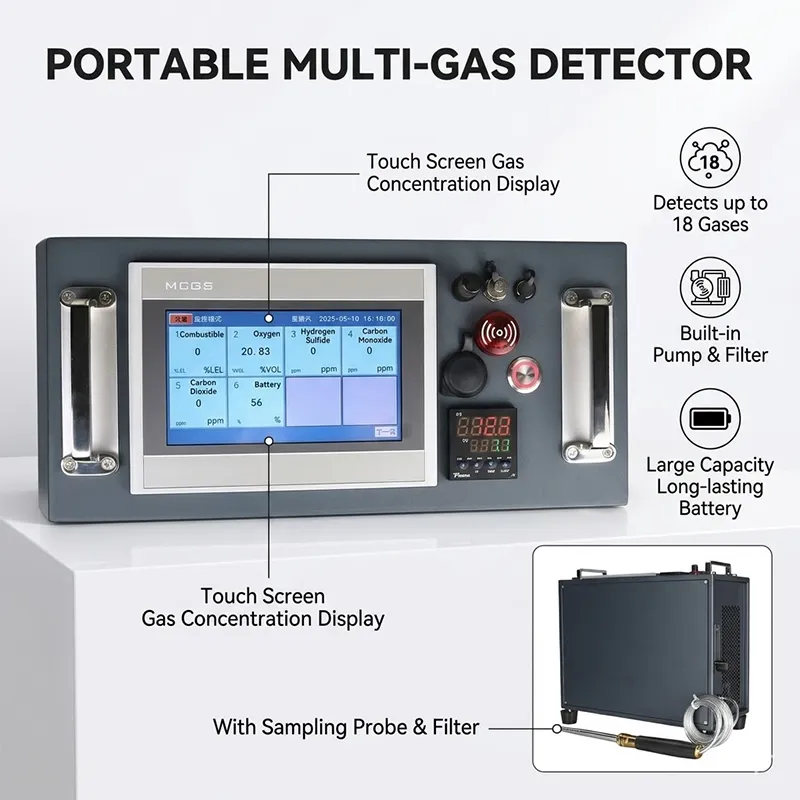

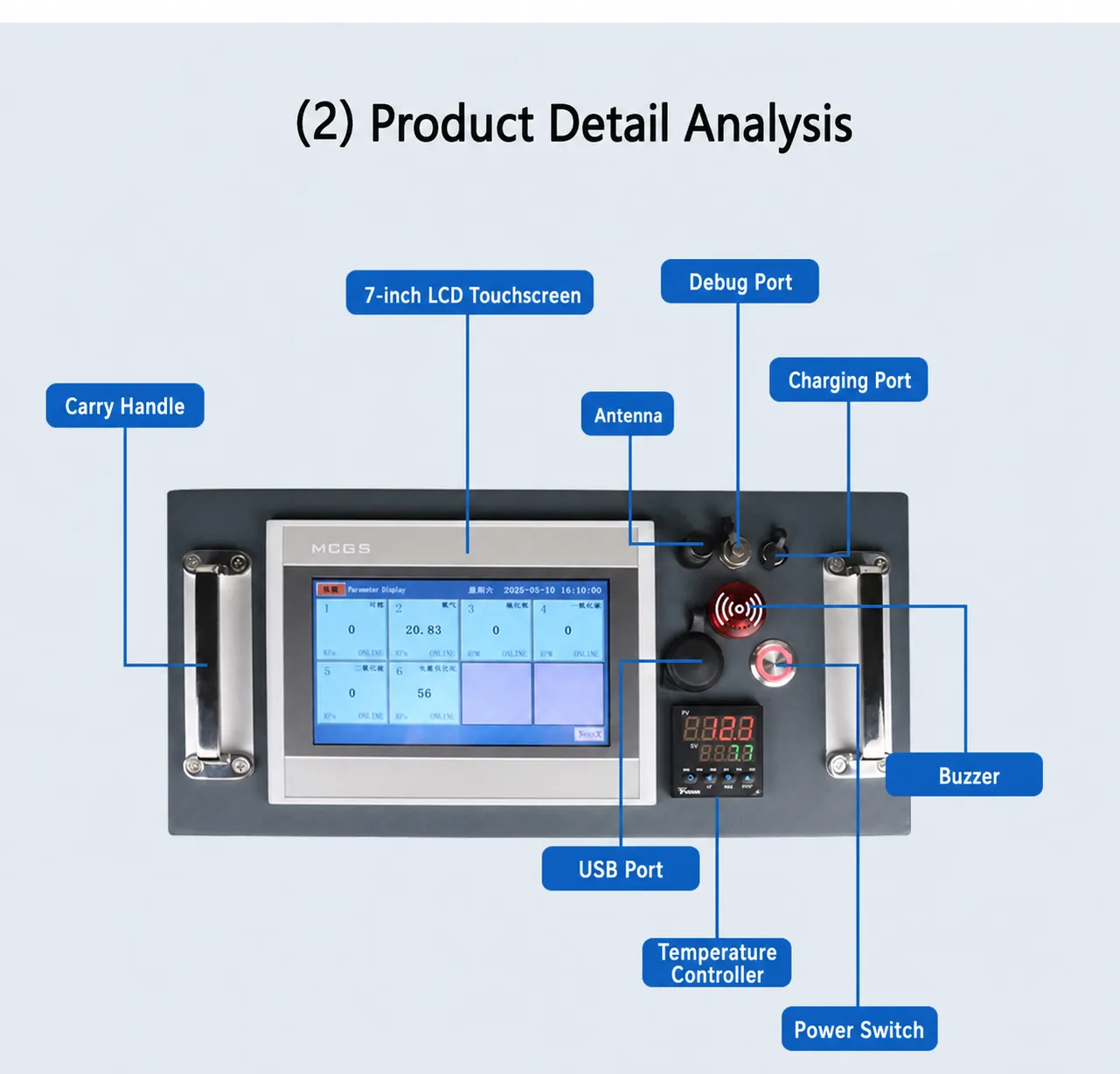

The instrument features a built-in 12800 mAh lithium battery and is equipped with a 7-inch LCD touch screen that provides a clear and intuitive display. Essential functions include real-time concentration display, real-time alarm status, and historical data storage of up to 1.8 million entries. It supports extensive data transmission options including RS485, USB, and optional wireless outputs such as LoRa, 4G, and Wi-Fi.

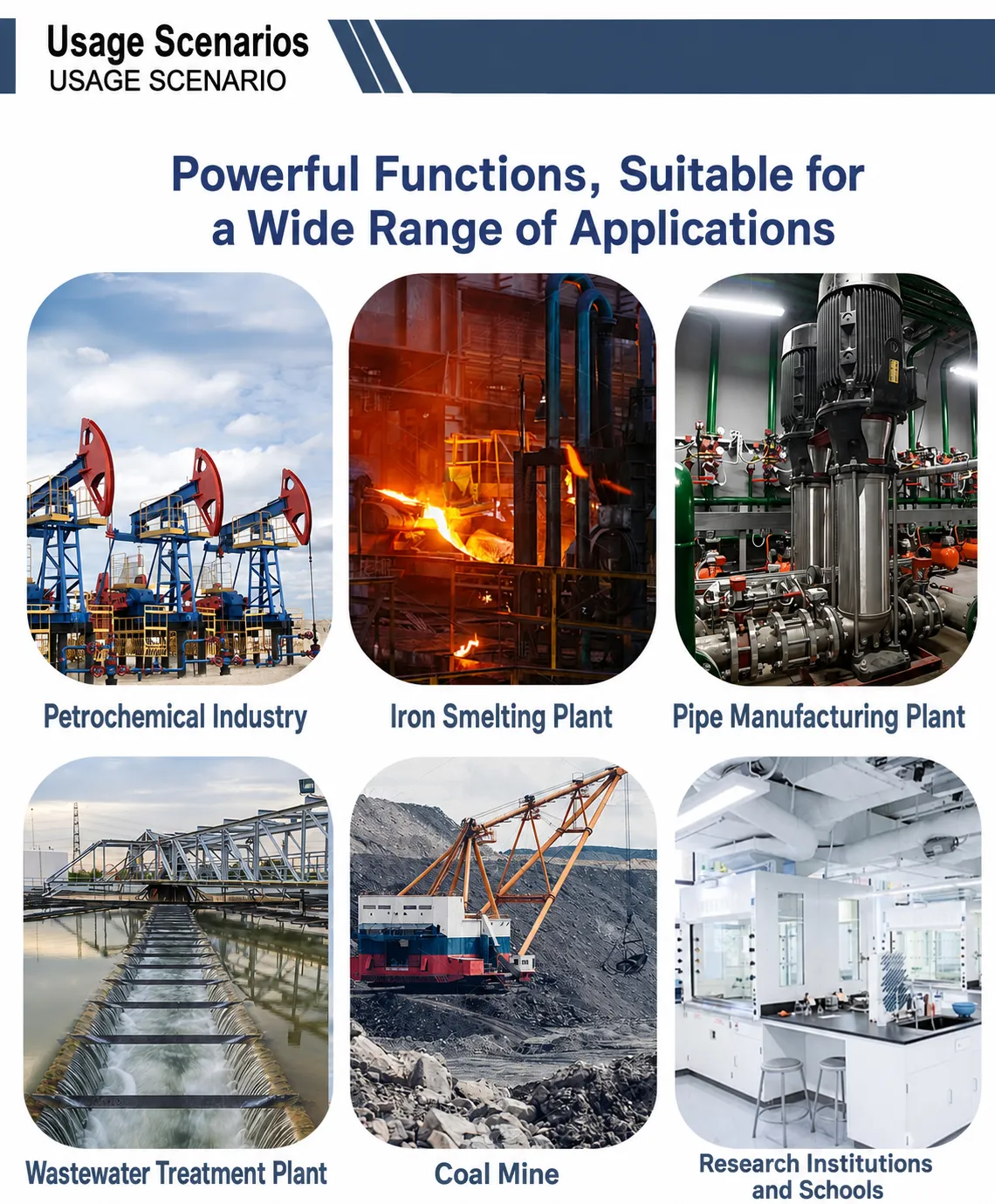

Wide Range of Industrial Applications
Featuring a pump suction sampling method with uniformly adjustable speed, this system ensures high detection reliability. It is highly suitable for diverse industrial environments including petrochemical industries, iron smelting plants, pipe manufacturing plants, wastewater treatment plants, coal mines, and research institutions.
Frequently Asked Questions (FAQ)
Q1: What is the recommended sampling distance for the pump suction method?
A1:The pump suction has a maximum distance of 100 meters, but it is recommended to keep it within 20 meters for optimal performance.
Q2: What are the operating environment requirements?
A2:The operating environment should comply with temperatures between -20°C and 50°C, ambient humidity of 10%-95%RH (non-condensing), and ambient pressure of 86kPa-110kPa. A dehumidification system must be equipped for high-humidity environments.
Q3: Can unauthorized personnel access the device settings?
A3: No, the system features a password login to prevent misoperation by unauthorized personnel.
