Fixed 4-in-1 Gas Detector for Power Grid Safety

Ensuring Power Grid Safety with a Fixed 4-in-1 Gas Detector

In State Grid power distribution and switchgear facilities, operational safety is the absolute priority. These confined spaces heavily rely on Sulfur Hexafluoride (SF6) for electrical insulation in high-voltage equipment. However, equipment aging or operational faults can lead to hazardous gas leaks. To protect on-site personnel and secure expensive infrastructure, deploying a robust Fixed 4-in-1 gas detector is the most effective safety strategy. Our advanced monitoring solution provides real-time hazard detection in these highly critical electrical environments.



Core Gas Threats in Switchgear Facilities

An Industrial 4 gas detection transmitter is specifically configured to target the unique atmospheric hazards found in modern power distribution rooms. A typical safety configuration monitors the following critical gases:

• SF6 (Sulfur Hexafluoride): While excellent for electrical insulation, SF6 is much heavier than air. A leak quickly displaces breathable air in confined cable trenches, creating severe suffocation risks for workers.

• SO2 (Sulfur Dioxide): When SF6 is subjected to electrical arcing or high-temperature faults, it decomposes into highly toxic byproducts, primarily SO2. Continuous SO2 monitoring is crucial for early fault warning and preventing toxic exposure.

• CO (Carbon Monoxide): Often generated by smoldering cable insulation materials or incomplete combustion during localized electrical overheating.

• LEL (Combustible Gases): Continuously detects any background accumulation of explosive gases in underground power utility tunnels.

The Advantages of a Wall Mounted Multi Gas Monitor

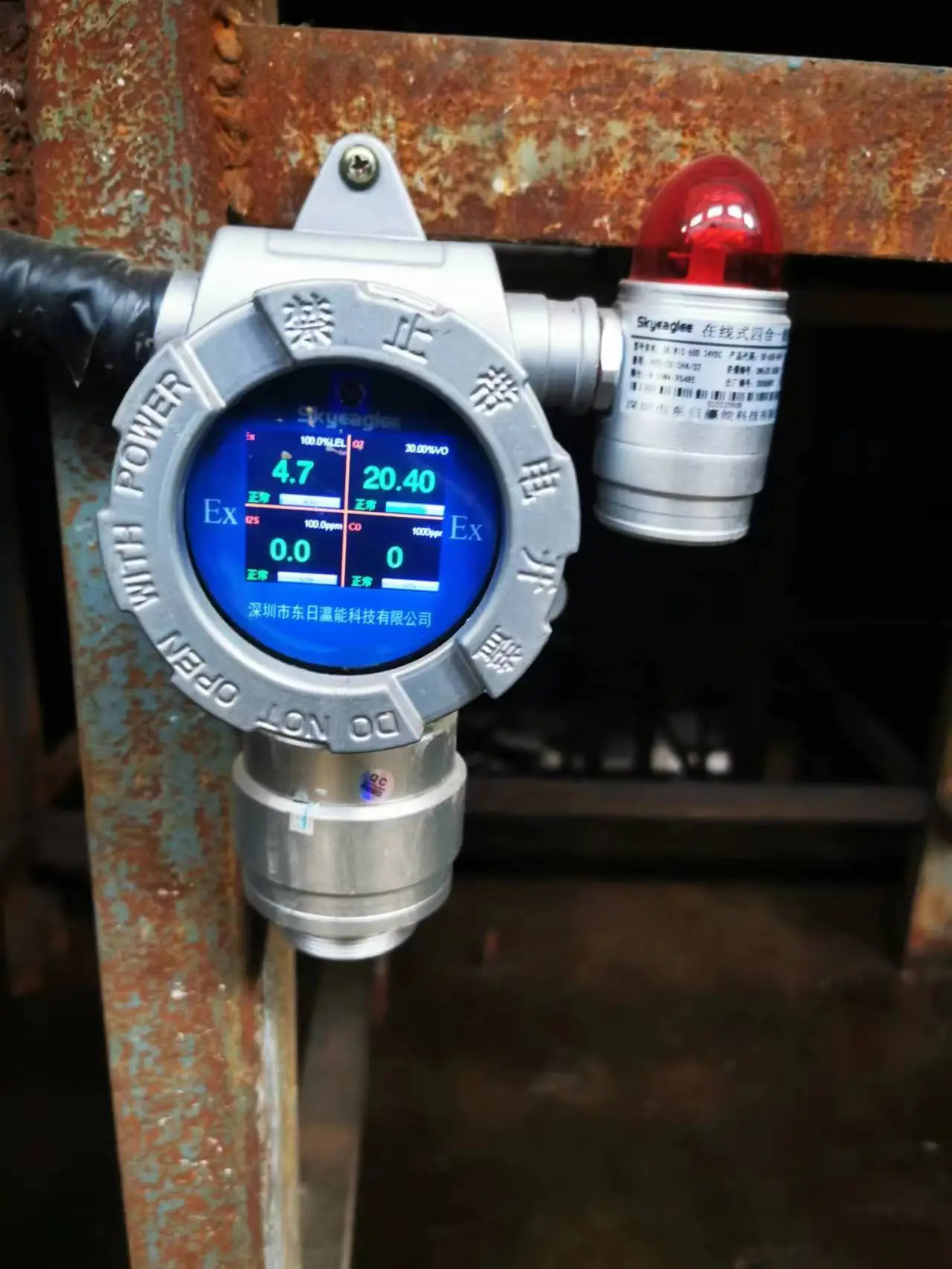

Designed specifically for harsh industrial applications, this heavy-duty device features an explosion-proof cast aluminum housing (Ex d IIC T6 Gb). As demonstrated in this field application, it easily withstands severe humidity, rust, and corrosive conditions without compromising performance. The large, backlit color display provides immediate, clear readings for all four gases simultaneously, ensuring that maintenance teams are instantly aware of the environmental status before entering the switchgear room.

Professional Installation for Power Distribution Rooms

When deploying the gas monitor, strategic placement and clean aesthetics are key for utility companies. Because SF6 and SO2 are heavier than air, the detector should be mounted close to the floor or directly inside cable trenches to catch the earliest signs of accumulation. Furthermore, our systems are optimized for a clean, concealed wiring setup with no visible wires, meeting the high visual standards of modern State Grid facilities and eliminating the risk of exposed cables being damaged by heavy equipment.
